Welded Coil in Coil

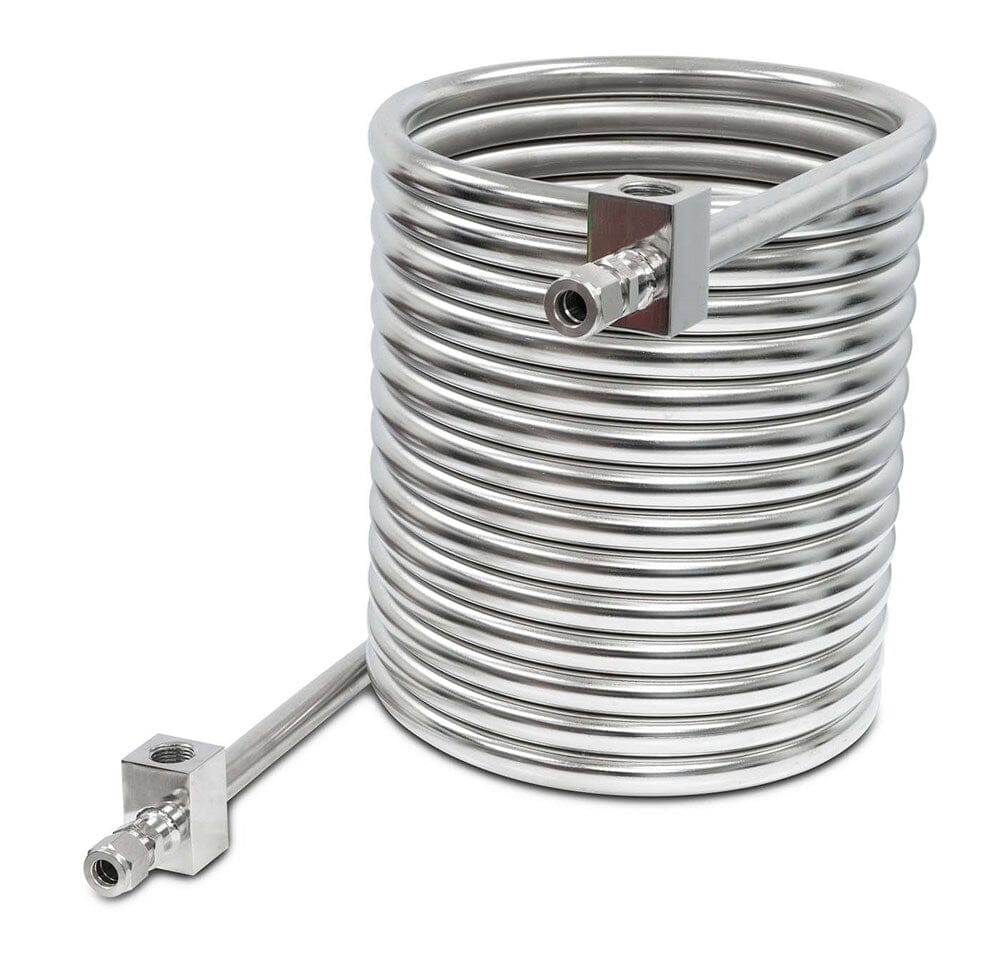

The Jacketed coil is a 40ft length of 1/2" tube that is completely encapsulated by the 3/4" outer jacket. The inner tube has 1/2" compression fittings and the outer tube has 1/2" FNPT connection ports.

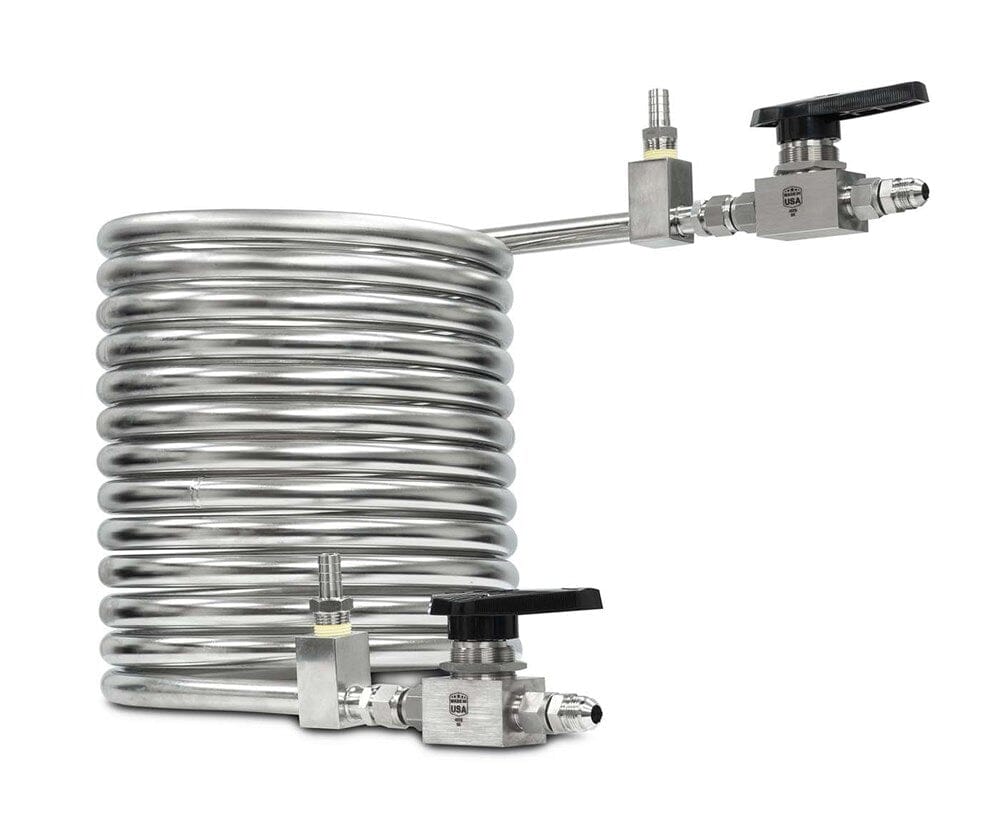

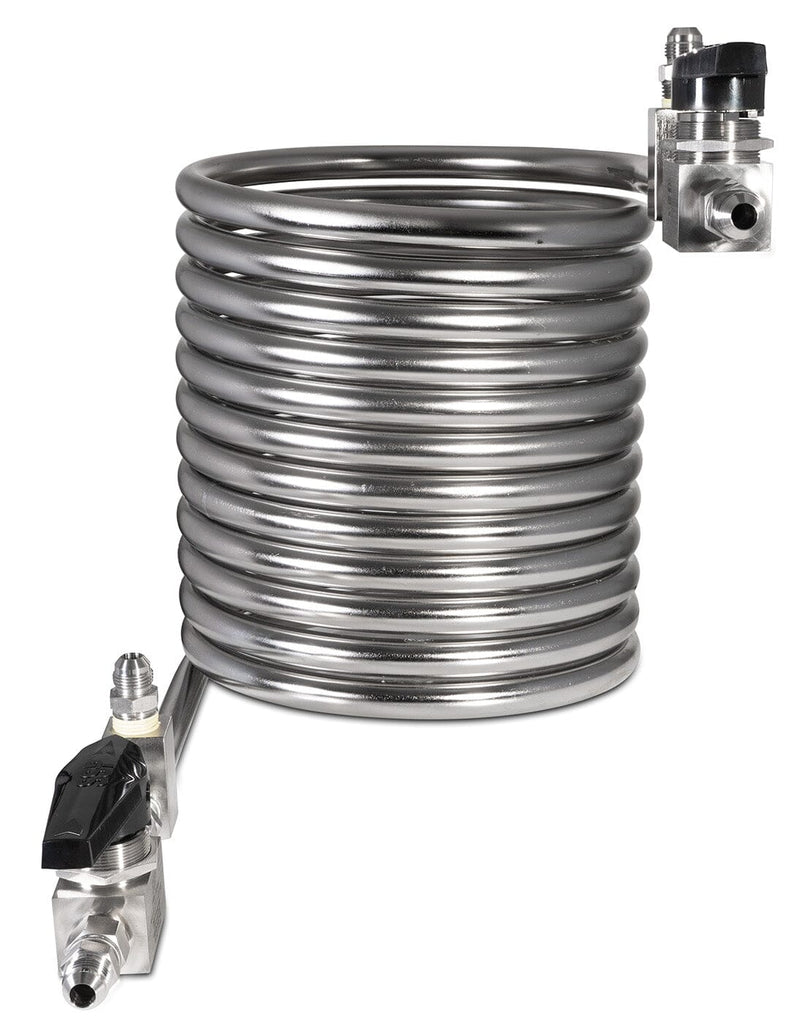

The built version comes with USA made SSP instrumentation valves with 1/2" JIC connection for the inner tube and either 1/2" MJIC, 1/2" OR 3/4" hose barb connections for the outer tube.
The Coil itself is 10" In diameter and can be mounted successfully utilizing one of our 10" Pipe Hangers
