DryFast Collegiate Diaphragm Pump 2014
***Note: This item has a possible 1-2 week lead time depending on stock availability***
Product Details
- Chemical Resistant
- Oil-Free
- Tuneable Vacuum

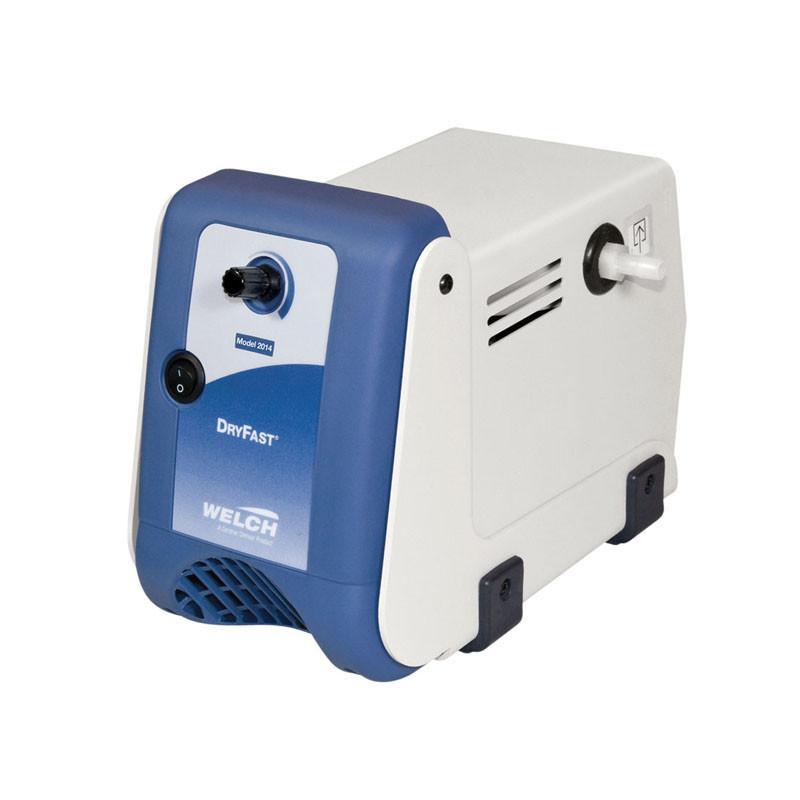

Welch DryFastTM PTFE Diaphragm Vacuum Pumps enable precise vacuum control for organic evaporations with exclusive Advanced Vapor Management (AVM). Oil-Free, portable, chemical resistant, 1 head diaphragm design simplifies maintenance. Choose from seven dry PTFE vacuum pump models with flows up to 70 L / min and adjustable vacuum down to 2 Torr. Economical DryFastTM vacuum pumps are perfect for tough lab applications.
| Model Number | 2014 |
|---|---|
| Applications | Vacuum Filtration, SPE, Rotary Evaporations (volatile solvents <80oC B.P., volume <2 liters), pumping harsh vapors & gases, general laboratory vacuum |
| Type | Laboratory Vacuum Pump |
| Free Air Displacement cfm (l/min.) @60Hz | 1.2(35) |
| Free Air Displacement m3/hr (l/min.) @50Hz | 1.75(29) |
| Ultimate Pressure | 40(53) |
| Maximum Vacuum | 28.3 |
| Motor Horsepower (watts) | 1/5(150) |
| Adjustable Vac. / Gas Ballast | Yes |
| Tubing Needed | 1/4(7) |
| Intake Thread NPT | M14(1/8) |
| Overall Dimensions LxWxH in. (cm) | 12x7.0x8.3 (30.5x 17.8x21.1) |
| Ship Weight | 19(8.6) |
| Shipping Carton Dimensions LxWxH in. (cm) | 21x14x15 (52x35x37) |
| Adjustable Vacuum | Knob |
