TrolMaster - Water Content Sensor with Cable Set

  • Sale
  • Regular price $219.00
Shipping calculated at checkout.

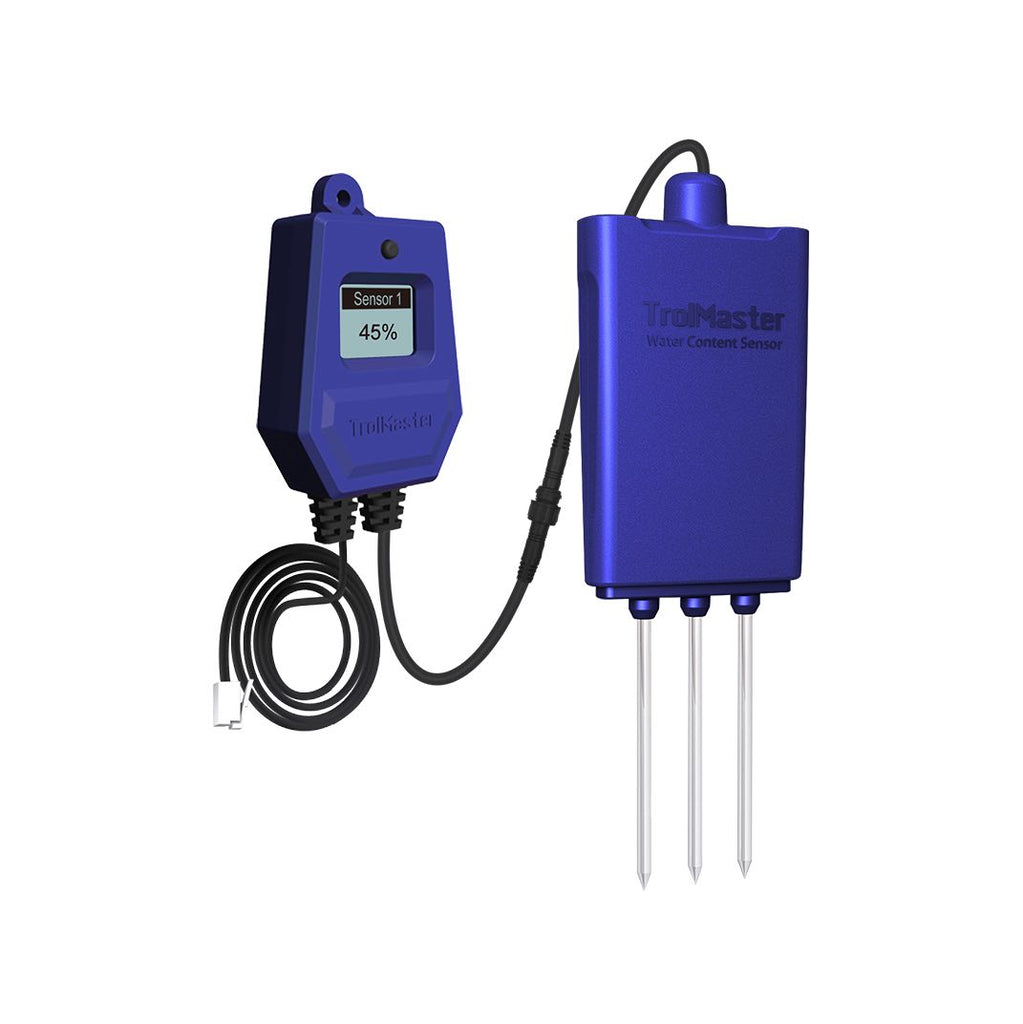

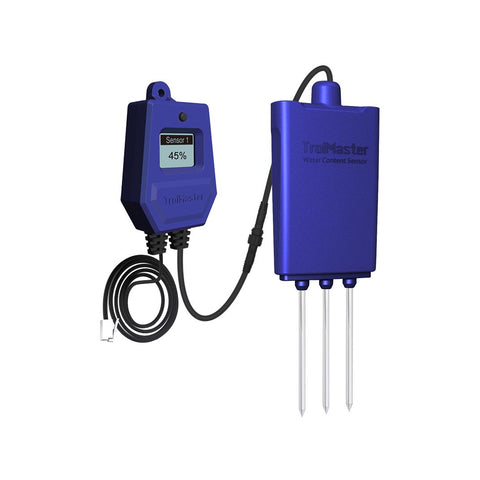

The WCS-1 water content sensor allows the user to monitor the % of water / nutrients within the growing medium. The moisture level / water content is displayed in real-time on the WCS module itself, the Aqua-x and the APP. That data is displayed on a graph (through the APP) and helps the user visualize the dry-down time, and to make adjustments to their irrigation timers / irrigation cycles. Up to 8 WCS-1 can be connected to a single Aqua-x. When multiple WCS-1 are connected to a single Aqua-X, the displayed value on the Aqua-x and APP will be the AVERAGE of all of the sensors.


LCD Display, Easy Operation

Addressing Button

Water Content Real-time Measuring

Alarm When Setpoint Exceeded

Included In Box:

1 x Water Content Sensor

1 x RJ12 T-Splitter

1 x 16ft RJ12 Cable

Technical Specifications:

Input Voltage:                                  12 VDC

Max Input Current:                           0.1A

Working Environments:                   Temperature 32°-122°F, Humidity=90%

Measuring Range:                            0~100%

Packaging Dimensions:                   275mm(L) x 164mm(W) x 62mm(H)

Manual Link:
