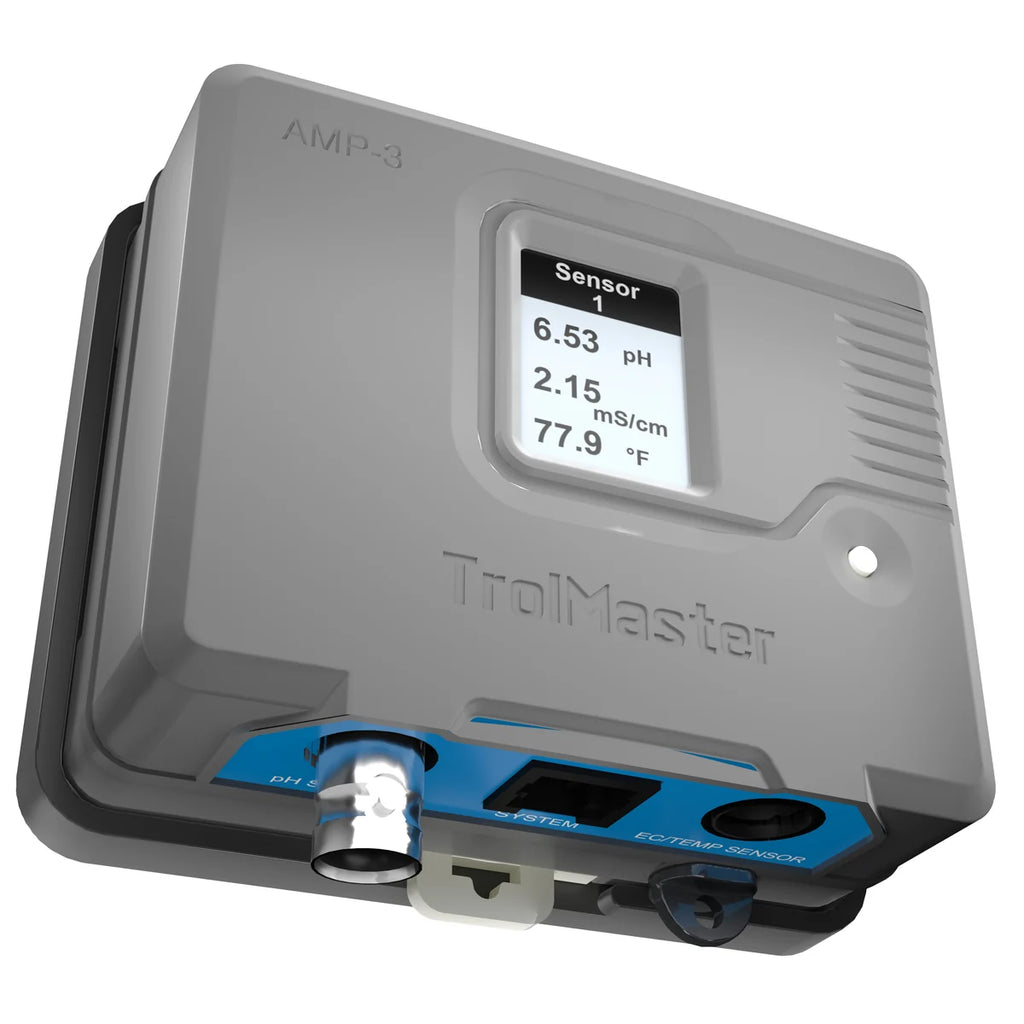

The TrolMaster AMP-3 is a dedicated sensor interface/bridge board for the Aqua-X Pro NFS-2 controller, connecting external pH and EC/temperature probes to the irrigation control system. It provides an onboard 1-inch LCD display for local monitoring while simultaneously sending pH, EC, and water-temperature readings to the NFS-2 controller. Multiple AMP-3 boards can be connected for monitoring multiple reservoirs or nutrient systems.
• Model: AMP-3
• Product Type: pH & EC/Temperature Sensor Board
• Compatible Controller: Aqua-X Pro NFS-2
• Sensor Parameters: pH, EC, and water temperature
• Display: 1-inch LCD — 64 × 64 dots
• Controller Connection: RJ12 System terminal
• pH Sensor Connection: BNC terminal
• EC/Temperature Connection: Mini-DIN terminal
• Maximum Sensor Boards: Up to 50 AMP-3 boards on an NFS-2 system
• Compatible pH Sensors: PPH-1, PPH-2, PPH-3
• Compatible EC/Temperature Sensors: PCT-1, PCT-2, PCT-3
• Local Monitoring: pH, EC, and water temperature displayed directly on AMP-3
• Controller Monitoring: Sensor readings also displayed on the NFS-2 controller
• Connectivity: Standard RJ12 connection with daisy-chain capability
• Addressing: Addressing key for multiple-board installations
• Working Temperature: 32–122°F (0–50°C)
• Working Humidity: ≤90% RH
• Included: AMP-3 sensor board, 16-ft RJ12 cable, 4-ft RJ12 cable, and T-shaped RJ12 splitter
• Application: Reservoir monitoring, nutrient solution monitoring, multi-zone fertigation, and inline nutrient systems
Key Advantage: The AMP-3 adds real-time pH, EC, and water-temperature monitoring with a dedicated local LCD display to the NFS-2 system. Its RJ12 networking and multi-board support allow a single Aqua-X Pro installation to monitor multiple reservoirs or nutrient systems from one centralized controller.
