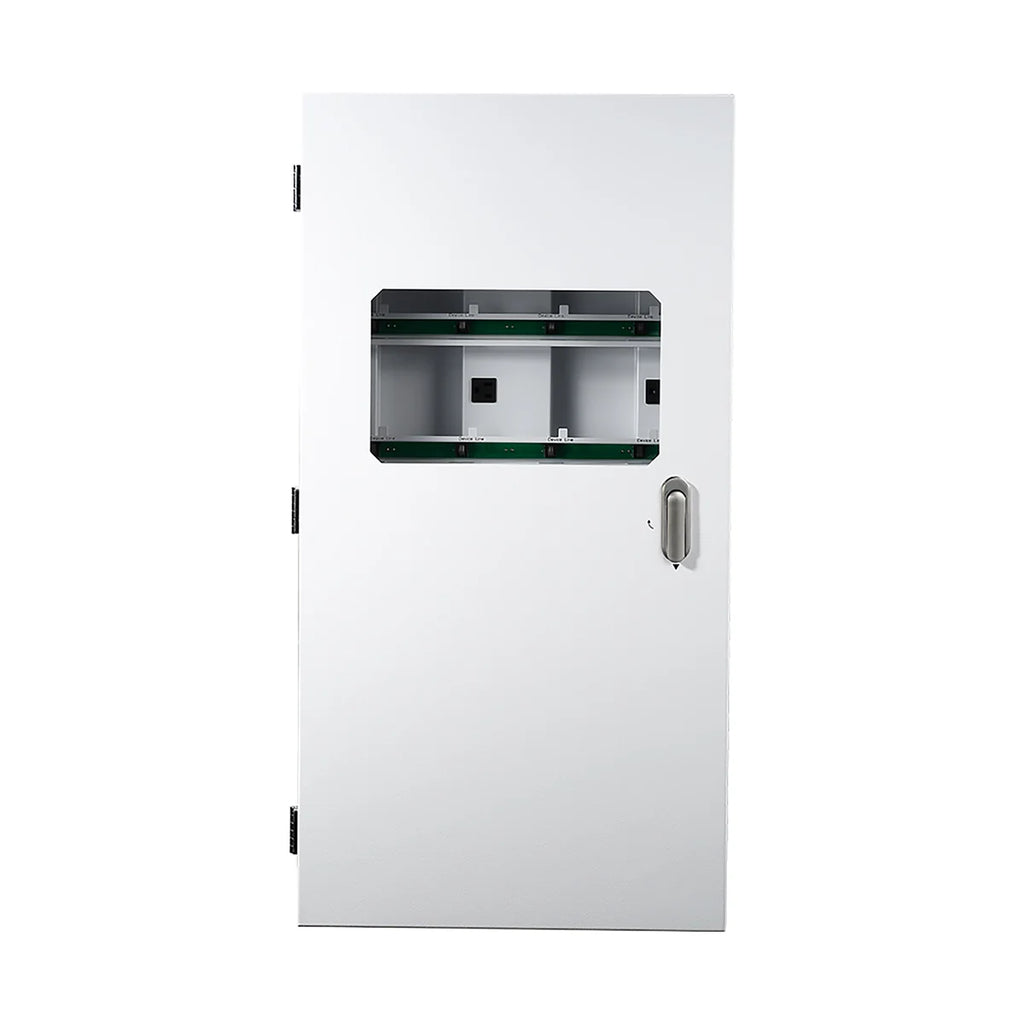

The TrolMaster SCC-2 is a 35-inch modular electrical enclosure and wire-management cabinet designed specifically for complete Hydro-X Pro (HCS-2) and Aqua-X Pro (NFS-2) control-system installations. It provides a centralized, protected location for the controllers, power supplies, output modules, splitter boards, and RJ12 cabling. Its IP56 / NEMA 4X-equivalent enclosure protects the internal components from dust and water ingress, while five onboard splitter boards provide 43 RJ12 ports for large, expanded automation systems.
• Model / SKU: SCC-2
• Compatible Controllers: Hydro-X Pro (HCS-2) and Aqua-X Pro (NFS-2)
• Cabinet Dimensions: 35" L × 18" W × 6.26" H (88.9 × 45.7 × 15.9 cm)
• Enclosure Rating: IP56 / NEMA 4X equivalent
• Input Voltage: 120V
• Maximum Amperage: 15A
• Operating Temperature: 32–104°F (0–40°C)
• RJ12 Splitter Boards: 5
• Total RJ12 Ports: 43
• Power Outlets: 8 + 1 top / 6 bottom
• Controller Opening: Pre-cut opening for the main TrolMaster controller
• Cable Management: Internal organization for RJ12 and power connections
• Installation: Wall-mounted enclosure
• Included Long RJ12 Cables: 4
• Included Short RJ12 Cables: 26
• Included OA6 Power Cables: 8
• Included OA6 Mounting Screws: 18
• Included: Cabinet and installation manual
• Controller Compatibility: Can house both HCS-2 and NFS-2 in a single cabinet
• IP56 Requirement: Included controller rubber gasket must be correctly installed
• Application: Commercial cultivation climate-control and irrigation automation systems
Key Advantage: The SCC-2 provides significantly more internal space than the SCC-1, with 43 RJ12 ports across five splitter boards, dedicated power outlets, and organized mounting for a large number of control modules. It can accommodate both a Hydro-X Pro and Aqua-X Pro system in one protected enclosure, making it suitable for heavily expanded commercial automation installations.
