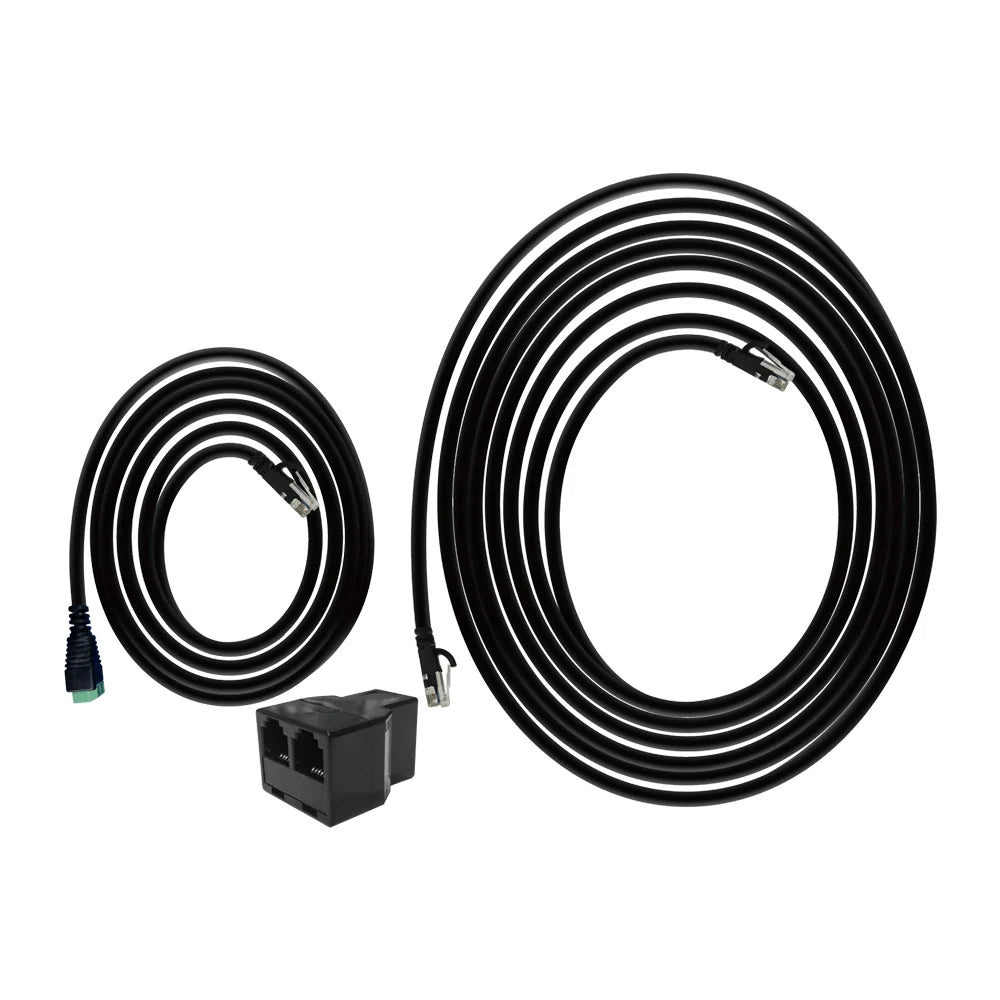

The TrolMaster ECS-2 is a purpose-built cable set for connecting the Hydro-X environmental control system to LED drivers that use pigtail/loose-wire dimming connections. The complete three-piece set includes a 16 ft RJ12 communication cable, a 4 ft RJ12-to-female-barrel converter cable with a two-screw terminal block, and a T-shaped Y-splitter. It provides a plug-and-play connection between an LMA lighting adapter and pigtail-wired LED drivers while supporting daisy-chain configurations.
• SKU: ECS-2
• Manufacturer: TrolMaster
• Primary Cable: 16 ft RJ12 communication cable
• Converter Cable: 4 ft RJ12-to-female-barrel cable
• Driver Connection: Two-screw terminal block for pigtail/loose-wire leads
• Splitter: 1 × T-shaped RJ12 Y-splitter
• Compatible System: TrolMaster Hydro-X, including HCS-1, HCS-3 and related systems
• Typical LMA Pairing: LMA-14 and other compatible LMA-series lighting adapters
• Connection Type: RJ12 communication connection with pigtail terminal interface
• Installation: Plug-and-play; no crimping or custom fabrication required
• Daisy-Chaining: Supported through the included Y-splitter
• Typical Application: LED drivers with bare/pigtail dimming leads
• Extension Options: Can be extended using ECS-1 or ECS-500 bulk RJ12 cable
• Package Dimensions: 156 × 83 × 30 mm
• Approx. Pack Weight: 0.18 kg
• Complete Set: Includes 16 ft RJ12 cable, 4 ft converter cable, and T-splitter
• Cable Function: Low-voltage lighting-control signal connection; not a power cable
Key Advantage: The ECS-2 solves the connection problem for LED drivers with bare pigtail control leads, providing a clean terminal-block interface while retaining Hydro-X's RJ12 communication and daisy-chain architecture.
