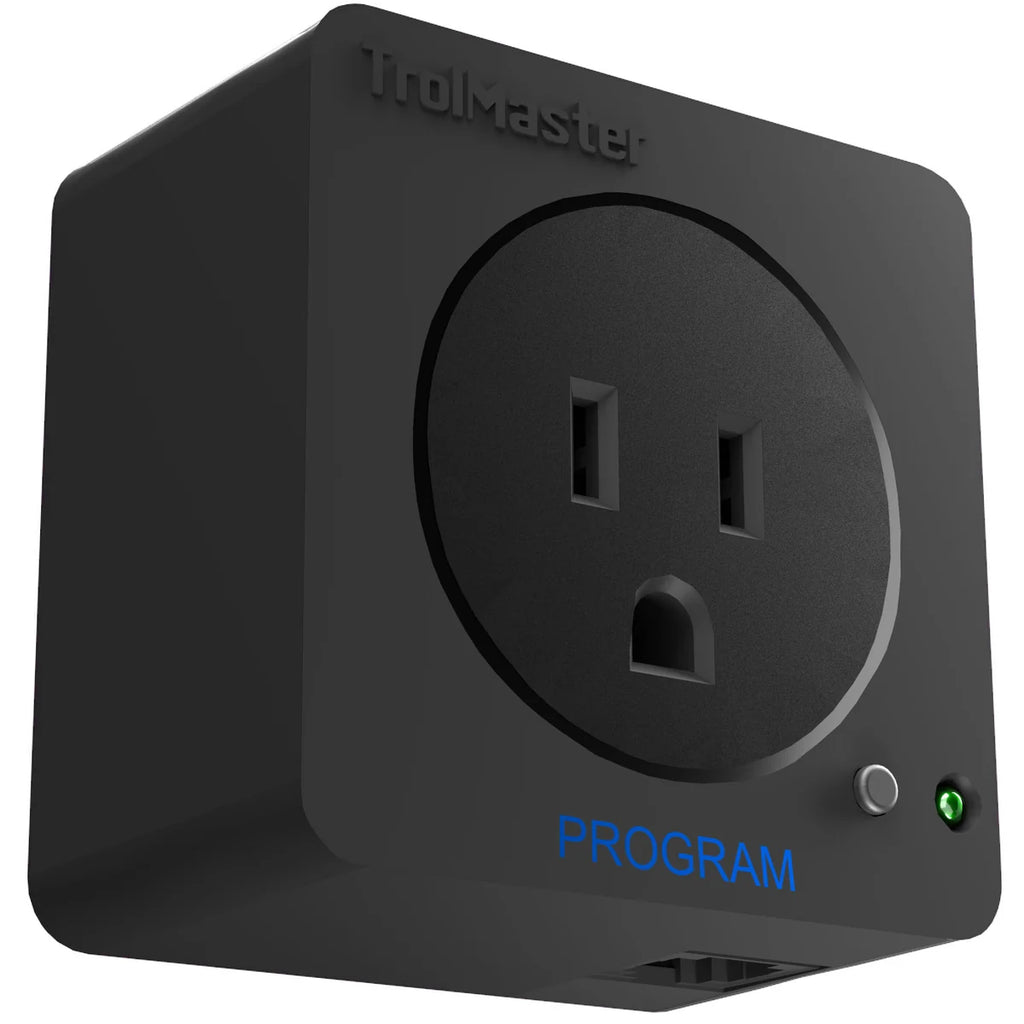

The TrolMaster DSP-1 is a plug-and-play, addressable timer relay for the Hydro-X and Aqua-X control systems. It provides scheduled or cyclic ON/OFF control for connected equipment up to 10A at 100–240VAC, including pumps, supplemental lighting, CO₂ accessories, exhaust/intake fans, and other time-controlled loads. On Aqua-X systems, it can also function as a master pump controller, automatically activating the pump whenever a 24VAC irrigation zone operates.
• SKU: DSP-1
• Module Type: Program Device Station / Timer Control Relay
• Compatible Systems: TrolMaster Hydro-X, Aqua-X
• Input Voltage: 100–240 VAC, 50/60 Hz
• Output Voltage: 100–240 VAC, 50/60 Hz
• Maximum Output Current: 10A
• Control Type: Time-based ON/OFF control
• Timer Modes: Fixed schedule and recycling/interval timer
• Cycle Limit: Recycling timer can operate with or without a maximum cycle count
• Aqua-X Function: Master pump controller for 24VAC irrigation zones
• Connection: RJ12 device bus / daisy-chain
• Addressing: Individually addressable
• Manual Override: Yes, through onboard button
• Overload Protection: Yes; blinking red LED indicates overload
• LED Status: Fast blink = unaddressed/no connection; slow blink = addressed/off; solid green = addressed/on
• Working Temperature: 32–122°F (0–50°C)
• Working Humidity: ≤90% RH
• Dimensions: 3.3" L × 3.2" W × 3.5" H (85 × 80 × 90 mm)
• Gross Weight: 0.34 kg
• Typical Applications: Irrigation pumps, nutrient dosing pumps, supplemental lighting, CO₂ accessories, exhaust/intake fans, and other scheduled equipment
• In the Box: 1× DSP-1, 1× 16-ft RJ12 cable, 1× 4-ft RJ12 cable, 1× RJ12 T-splitter
Key Advantage: The DSP-1 adds an independently addressable 10A scheduled outlet to an existing Hydro-X or Aqua-X network, eliminating the need for a separate standalone timer. Its additional Aqua-X master-pump function makes it particularly useful for coordinating irrigation pumps with active watering zones.
