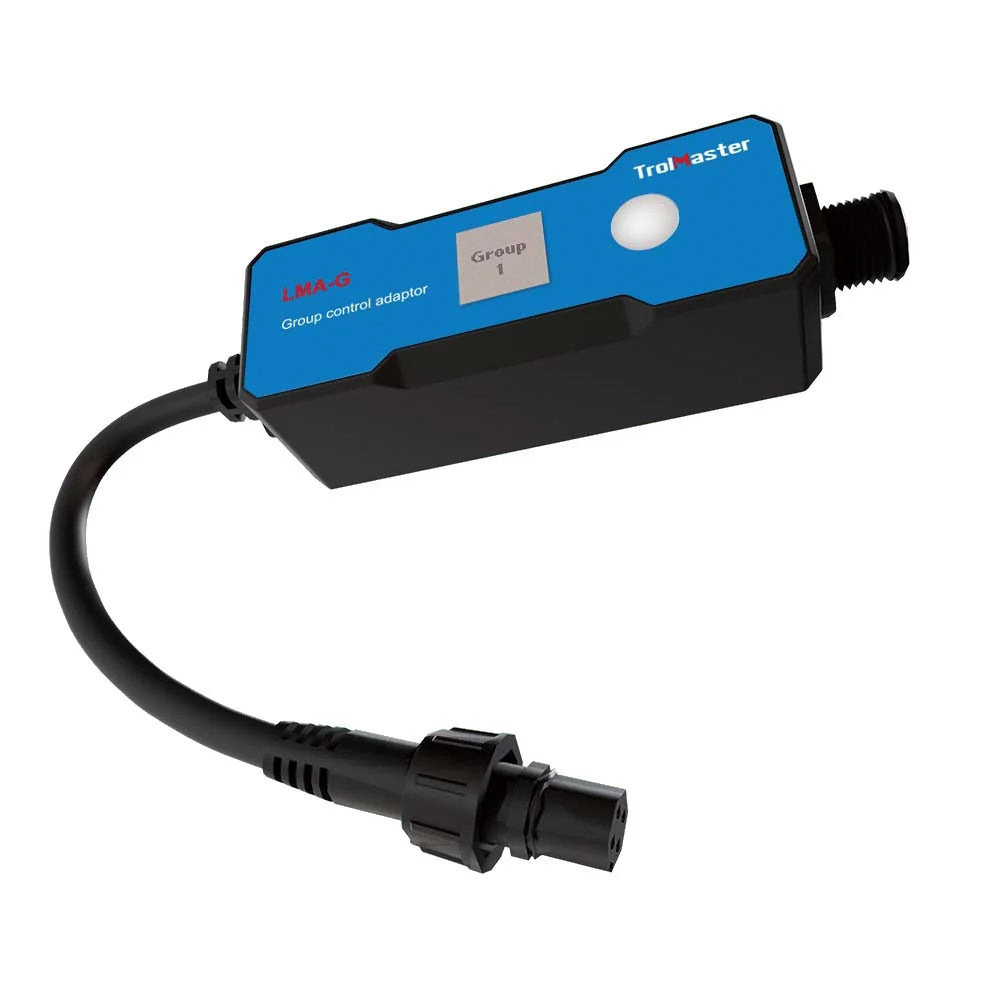

The TrolMaster LMA-G is a group-control adapter designed specifically for ThinkGrow Model-I and Model-I Plus single-bar LED fixtures. Used inline with the LMA-T, it allows a single Hydro-X controller to divide ThinkGrow fixtures into independently addressable lighting zones, with each group able to have its own schedule and dimming settings. Up to 10 separate light groups can be addressed per controller channel.
• SKU: LMA-G
• Compatible Fixtures: ThinkGrow Model-I and Model-I Plus single-bar LEDs
• Required Companion: TrolMaster LMA-T
• Compatible Controllers: Hydro-X HCS-1, Hydro-X Pro HCS-2, Hydro-X Plus HCS-3
• Maximum Addressable Groups: 10 groups
• Groups Per Adapter: 1 — one LMA-G per light group
• Input Voltage: 12V DC
• Maximum Current: 0.1A
• Connection Type: Plug-and-play RJ12
• Group Control: Independent addressing of defined fixture groups
• Independent Scheduling: Each group can have its own on/off schedule
• Independent Dimming: Each group can have its own dimming settings/curve
• Addressing: Onboard LCD display; group number assigned directly on the adapter
• Operating Temperature: 32–122°F (0–50°C)
• Operating Humidity: ≤90% RH
• Packaging Dimensions: 156 × 83 × 30 mm
• Unit Weight: 2.12 oz / 60g
• Model One Compatibility: Not compatible with ThinkGrow Model One modular-bar fixtures
• Installation: Installed inline with the LMA-T and ThinkGrow lighting-control cable system
• Zone Expansion: Up to 10 independently controlled groups per controller channel
Key Advantage: The LMA-G adds zone-level control to ThinkGrow Model-I lighting installations, allowing multiple production areas to operate independently from a single Hydro-X controller. The LMA-T provides the ThinkGrow protocol bridge, while each LMA-G assigns a separate group address for independent scheduling and dimming.
