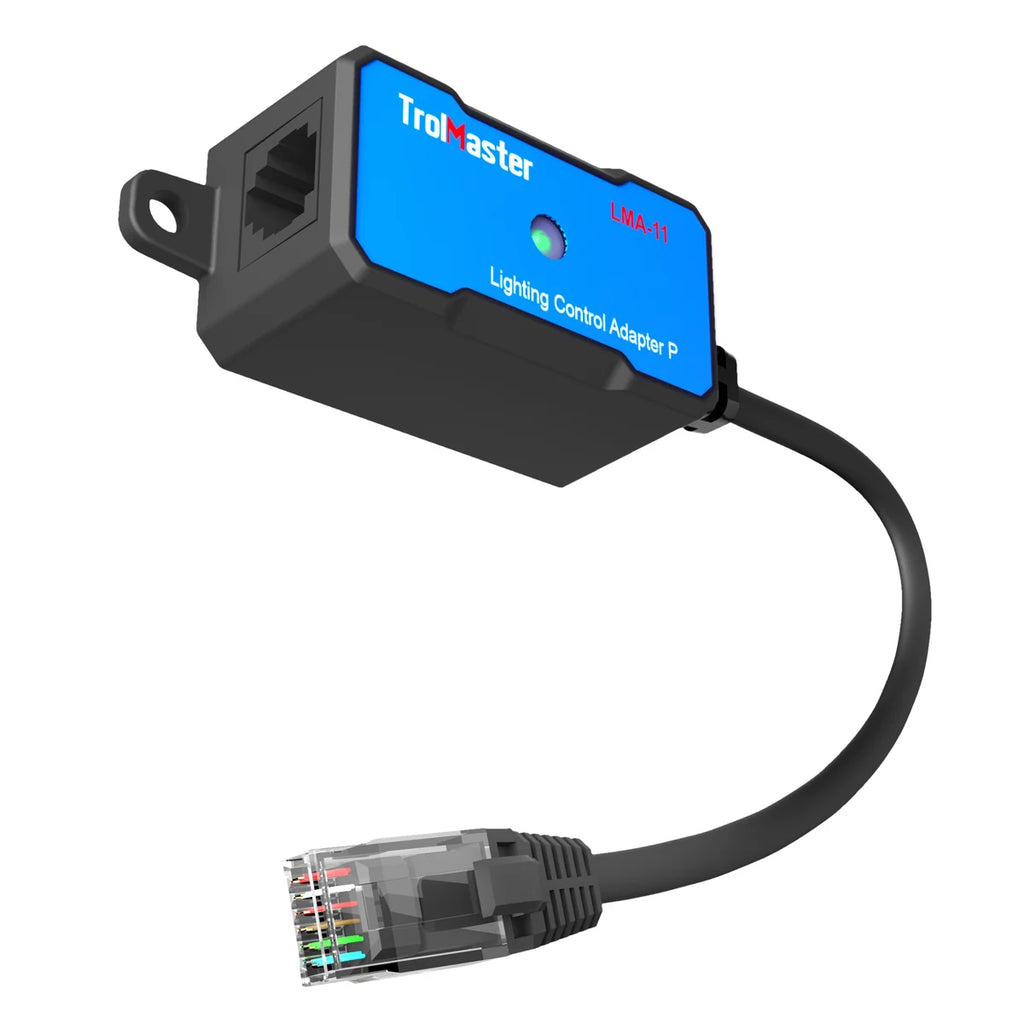

The TrolMaster LMA-11 Lighting Control Adapter P connects the TrolMaster Hydro-X environmental controller to Phantom LP ballasts and Phantom 60 Series fixtures. It converts Hydro-X’s digital control signal into the 0–11.5V analog signal required by compatible Phantom HID lighting, bringing the fixtures into the same automated lighting schedules and environmental response logic as the rest of the Hydro-X system.
• SKU: LMA-11
• Compatible Fixtures: Phantom LP Ballast, Phantom 60 Series
• Incompatible Fixtures: Phantom 40 Series, Phantom 50 Series (RS-485), dual-knob two-bulb fixtures
• Controller Compatibility: TrolMaster Hydro-X
• Signal Conversion: Digital to Analog
• Output Voltage: 0–11.5V
• Maximum Current: 0.2A
• Connection: RJ12 cable socket
• Included Cable: 0.6 ft RJ12 pigtail
• Lighting Control: Automated control of compatible Phantom ballast lighting
• Control Functions: Hydro-X scheduling and environmental response logic, including temperature- or CO₂-responsive lighting adjustments
• Status Indicator: Built-in LED power indicator
• Installation: Plug-and-play; no additional wiring or programming required
• Control Capacity: One LMA-11 interfaces with one ballast control input; multiple adapters can be used for multiple independently controlled ballasts/zones
• Operating Temperature: 32–122°F (0–50°C)
• Maximum Working Humidity: ≤90% RH
• Package Dimensions: 6.1 × 3.25 × 1.25 in (156 × 83 × 30 mm)
• Gross Weight: 50g / 1.74 oz
Key Advantage: The LMA-11 provides a simple digital-to-analog bridge between Hydro-X and compatible Phantom HID ballasts, eliminating manual dimming and allowing Phantom LP and 60 Series lighting to participate in centralized Hydro-X automation.
