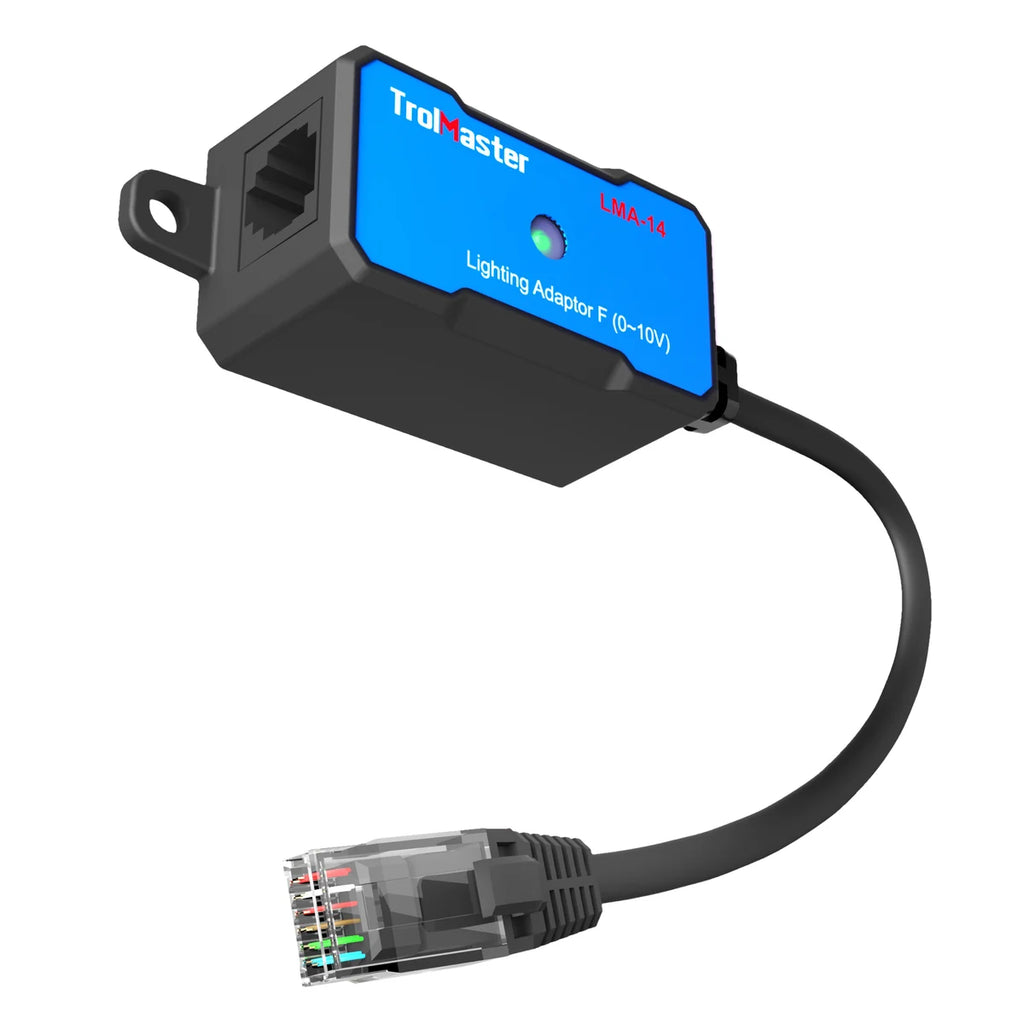

The TrolMaster LMA-14 Lighting Control Adapter F is a universal 0–10V lighting interface that connects TrolMaster Hydro-X or Hydro-X Pro controllers to LED and HID fixtures using the standard 0–10V dimming protocol. It converts the controller's digital commands into a 0–11.5V analog signal, enabling automated scheduling, dimming, and on/off control. One adapter can control up to 40 HID fixtures or 24 LED fixtures under standard voltage conditions.
• SKU: LMA-14
• Control Protocol: 0–10V analog
• Signal Conversion: Hydro-X digital signal to 0–11.5V analog output
• Input Voltage: 12V DC, supplied from Hydro-X port
• Output Voltage: 0–11.5V
• Maximum Current: 0.05A
• Max HID Fixtures: 40 per adapter
• Max LED Fixtures: 24 per adapter
• 277V LED Limit: 12 Fluence Spyder 2x/2i or Aelius fixtures per adapter
• Controller Compatibility: Hydro-X HCS-1 and Hydro-X Pro HCS-2
• Controller Connection: RJ12 plug-and-play
• Compatible LED Brands: Fluence, NextLight, Photobio, HLG, Floraflex, Luxx and compatible Meanwell-driver fixtures
• Compatible HID Brands: Gavita, Nanolux, Luxx, Growers Choice, Illuminar and PL
• Ballast Compatibility: Standard 0–10V ballasts
• Wiring: Includes pigtail screw-down manual wiring converter
• Expansion: Multiple LMA-14 units can be connected through the SPH-1 Splitter Hub
• Operating Temperature: 32–122°F (0–50°C)
• Operating Humidity: ≤90% RH
• Dimensions: 6.14 × 3.27 × 1.18 in (156 × 83 × 30 mm)
• Gross Weight: 2.12 oz (60 g)
• Power Supply: No separate power supply required
• Status Indicator: Built-in LED power indicator
Key Advantage: The LMA-14 provides a universal bridge between Hydro-X automation and standard 0–10V lighting systems, allowing mixed LED/HID installations to receive centralized scheduling and dimming control without custom relay panels.
