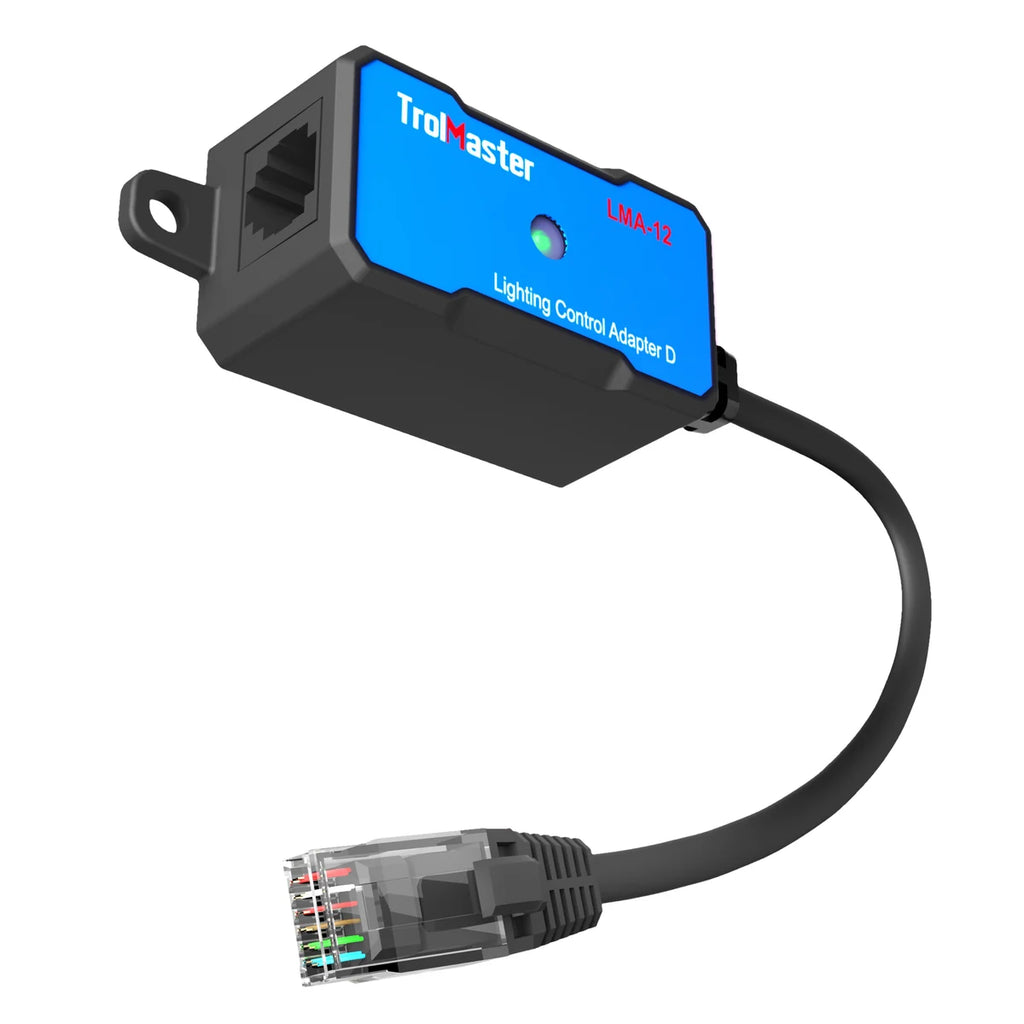

The TrolMaster LMA-12 is a dedicated interface adapter that connects Dimlux single-knob ballasts to a TrolMaster Hydro-X controller. It converts Hydro-X’s digital control signal into the 0–11.5V analog signal required by Dimlux ballasts, enabling centralized automated control of lighting schedules, dimming intensity, and sensor-triggered lighting responses. The plug-and-play design uses an included RJ12 cable and the ballast’s own interlink port.
• SKU: LMA-12
• Compatible Controller: TrolMaster Hydro-X
• Compatible Fixtures: Dimlux single-knob ballasts
• Signal Conversion: Digital to Analog
• Output Voltage: 0–11.5V
• Input Voltage: 12V
• Maximum Current: 0.2A
• Connection Type: RJ12
• Included Cable: 0.6 ft RJ12 cable
• Dimming Control: Automated Dimlux ballast dimming
• Lighting Control: On/off scheduling and dimming intensity
• Sensor-Based Control: Supports Hydro-X triggered responses such as temperature-based auto-dimming
• Daisy Chaining: Multiple compatible Dimlux ballasts can be connected through their interlink ports and controlled by one LMA-12
• Status Indicator: Built-in LED power indicator
• Operating Temperature: 32–122°F (0–50°C)
• Operating Humidity: ≤90% RH, non-condensing
• Dimensions: 156 × 83 × 30 mm
• Installation: Plug-and-play; no programming or additional converter required for a standard setup
• Compatibility Limitation: Not compatible with two-knob Dimlux fixtures designed to independently control two bulbs
Key Advantage: The LMA-12 eliminates manual dimming of compatible Dimlux ballasts by allowing a Hydro-X controller to centrally automate and coordinate an entire bank of single-knob Dimlux fixtures through digital-to-analog signal conversion.
