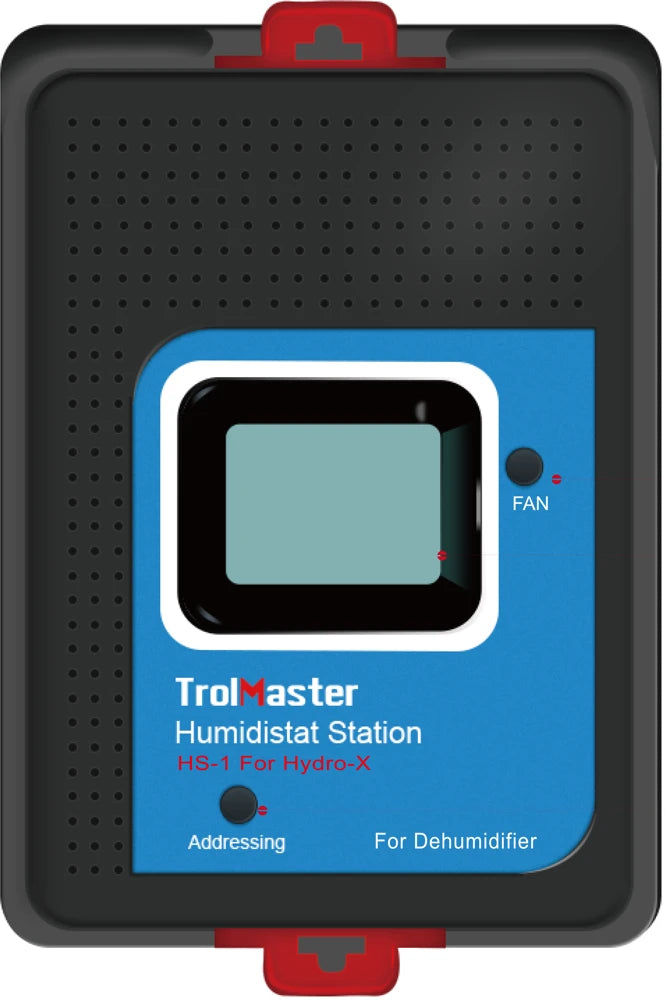

The TrolMaster HS-1 is a dedicated 24V low-voltage humidistat interface that connects commercial dehumidifiers with a 24V humidistat/control terminal directly to the TrolMaster Hydro-X system. Instead of switching the dehumidifier's high-amperage compressor load through an external relay, the HS-1 sends a low-voltage 24V control signal to the dehumidifier's own internal relay. This allows Hydro-X to manage independent Day/Night humidity setpoints while keeping the high-inrush compressor load inside the dehumidifier.
• SKU: HS-1
• Brand: TrolMaster
• Compatible System: TrolMaster Hydro-X
• Output Voltage: 24V
• Maximum Current: 1A
• Control Type: 24V low-voltage humidistat signal
• Compatible Equipment: Commercial dehumidifiers with a 24V humidistat / low-voltage control terminal
• Humidity Control: Hydro-X controlled Day/Night humidity setpoints
• Display: LCD showing active humidity setpoint and live ambient humidity
• Communication: RJ12 device bus
• Maximum Units: Up to 5 HS-1 units on one Hydro-X controller
• Addressing: Individual station addresses H1–H5
• Operating Temperature: 32–122°F (0–50°C)
• Operating Humidity: ≤90% RH
• Firmware Upgrade: Micro-SD card, ≤32GB
• Package Dimensions: 6.2" L × 3.4" W × 3.4" H (160 × 86 × 86 mm)
• Included: HS-1 unit, 16-ft RJ12 cable, 4-ft RJ12 cable, RJ12 T-splitter
• Sensor Requirement: Uses humidity data from the Hydro-X environmental sensor; the HS-1 is a control output device, not a standalone humidity sensor/controller
• Warranty: 3-year limited TrolMaster warranty
Key Advantage: The HS-1 provides a safe, low-voltage method of integrating commercial dehumidifiers with Hydro-X, avoiding direct switching of the compressor's high-inrush electrical load. It is particularly useful for commercial dehumidifiers such as Quest or Anden units that provide a 24V external humidistat input.
