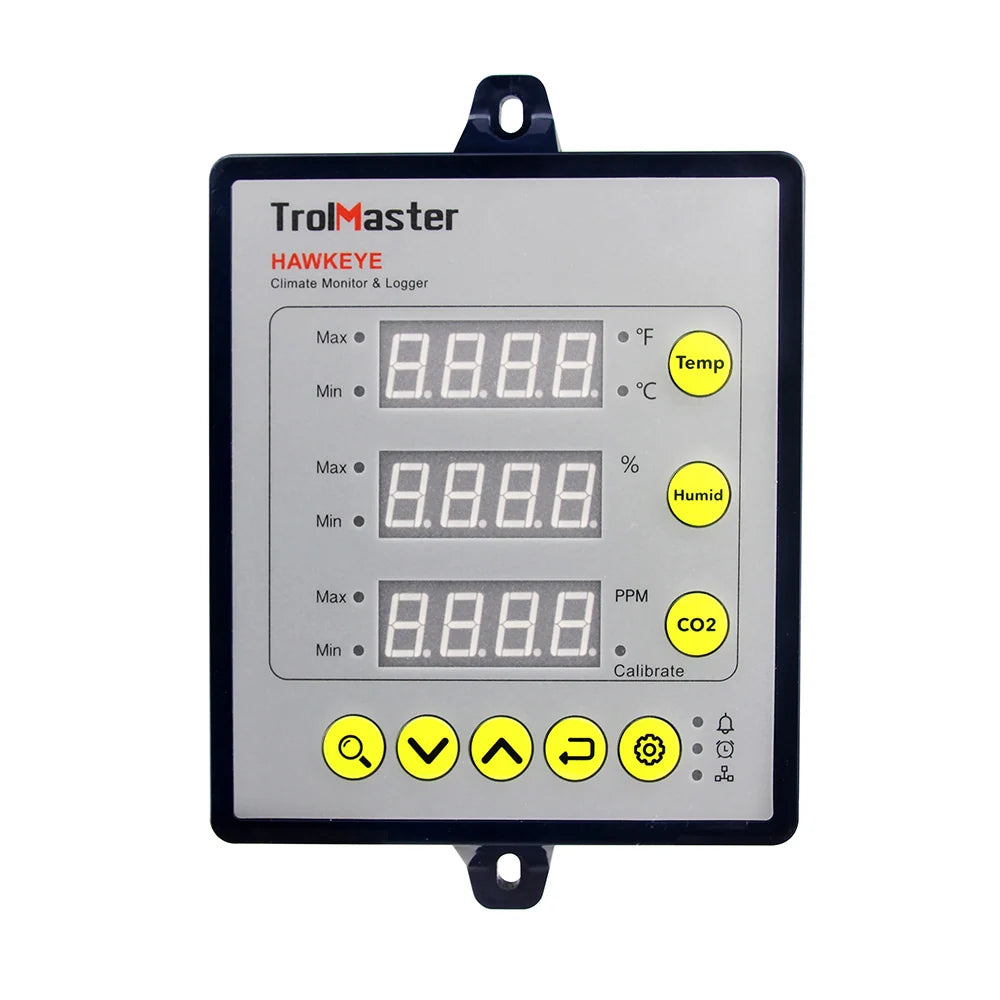

The TrolMaster Hawkeye CM-1 is a standalone environmental monitoring and data-logging system that simultaneously measures temperature, relative humidity, CO₂ concentration, and calculated VPD. It includes the SA-S81 remote 3-in-1 sensor with a 16-ft cable, Ethernet adapter, and DC power supply, allowing the sensor to be positioned at the canopy while the display remains outside the room. The CM-1 is strictly a monitoring system—not a controller—so it does not switch HVAC, CO₂, lighting, or other equipment.
• SKU: CM-1
• Monitored Parameters: Temperature, Relative Humidity, CO₂ and VPD
• CO₂ Range: 0–2,000 ppm
• CO₂ Accuracy: ±30 ppm
• Temperature Range: 32–138.2°F (0–59°C)
• Temperature Accuracy: ±0.20°C
• Humidity Range: 5–95% RH
• Humidity Accuracy: ±7% RH
• Working Environment: 32–122°F (0–50°C), ≤90% RH
• Remote Sensor: SA-S81 3-in-1 sensor
• Sensor Cable: 16 ft
• Input Power: 100–240 VAC, 50/60 Hz
• Maximum Input Current: 0.6A
• Output: 24 VDC / 0.5A
• Connectivity: Ethernet adapter for network/app access
• Mobile App: Free TrolMaster app for iOS and Android
• Alerts: Audible and visual alarms with configurable temperature, humidity and CO₂ high/low thresholds
• Remote Alerts: Real-time smartphone push notifications when connected to the internet
• Data Logging: Cloud trend graphs or local MicroSD recording
• MicroSD Capacity: Up to 128GB; card not included
• Local Logging Interval: Every 15 seconds
• Local File Format: Date-stamped .txt files
• Internet Requirement: Not required for local monitoring, alarms or MicroSD logging
• Control Outputs: None — monitoring and logging only
• Controller Compatibility: Operates independently; can be used alongside Hydro-X or Aqua-X as an independent verification sensor
• Warranty: 3 years
• Included: CM-1 monitor, SA-S81 sensor, 16-ft sensor cable, Ethernet adapter and DC power supply
Key Advantage: The Hawkeye CM-1 provides an independent, continuously logged reference for temperature, RH, CO₂ and VPD, including local MicroSD recording even during internet outages. This makes it particularly useful as a standalone monitor or as a separate verification layer alongside a TrolMaster control system.
