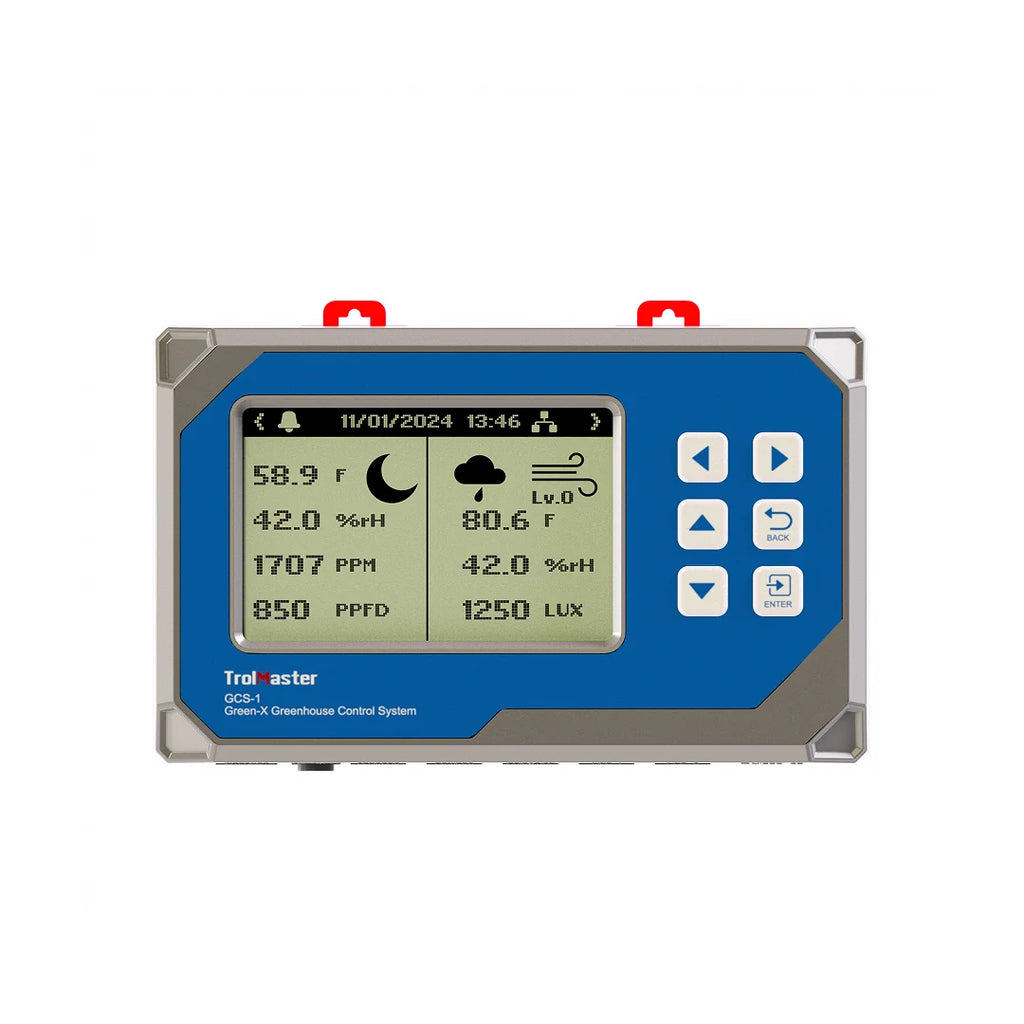

The TrolMaster GCS-1 Green-X is a commercial-grade, modular greenhouse control system designed to centrally manage climate, CO₂, lighting, and irrigation from one base station. It includes the MBS-GH 4-in-1 sensor for real-time monitoring of air temperature, relative humidity, CO₂ concentration, and ambient light/day-night detection. The system uses two independent lighting channels, supports expandable climate and irrigation modules, and connects to the TM+ Pro mobile app through a wired Ethernet connection for remote monitoring, alerts, and setpoint adjustment.
• Model / SKU: GCS-1
• Brand / Platform: TrolMaster / Green-X Greenhouse Control System
• Product Type: Modular Greenhouse Control System
• Included Sensor: MBS-GH 4-in-1 — Air Temperature / Relative Humidity / CO₂ / Photocell
• Lighting Control: 2 independent channels — Line 1 & Line 2
• Lighting Compatibility: LED and HID via LMA Lighting Adapters
• Maximum DS-Type Device Modules: 10
• Maximum Irrigation Modules: 8
• Temperature Device Stations: Up to 4
• Humidity Device Stations: Up to 4
• CO₂ Device Stations: Up to 2
• Timer Device Stations: Up to 2
• MBS-GH Sensors: 1 maximum
• WCS-1/2/3 Water Content Sensors: Up to 8
• AMP-3 Nutrient Sensor Board: 1 maximum
• DFM-1/2/3 Flow Meter: 1 maximum
• WD-1 Water Detectors: Up to 2
• DMC-1 Greenhouse Motor Controllers: Up to 4
• Input Voltage: 100–240VAC, 50/60Hz
• Output Current: 3A maximum; 1.1A maximum per telephone jack
• Connectivity: Wired Ethernet via INTERNET port
• Mobile App: TM+ Pro for iOS and Android
• Wi-Fi: No built-in Wi-Fi; wired Ethernet connection required
• Ports: INTERNET, 12V DC, SENSORS, DEVICES, IRRIGATION, LINE 1, LINE 2, Micro SD
• Irrigation Control: Supports single-event, multi-event, and recycle timer schedules
• Optional Sensors: Weather station, PPFD quantum sensor, smoke detector, water detector, water-content sensors, flow meter, and nutrient sensor board
• Data Logging: Micro-SD card support
• Operating Temperature: 32–122°F (0–50°C)
• Operating Humidity: ≤90% RH
• Package Includes: GCS-1 controller, MBS-GH 4-in-1 sensor, RJ12 lighting cable set, 12V power adapter, RJ12 T-splitter, and 4-ft M12 cable
• Controller Dimensions: 6.52" × 3.78" × 1.63"
• Application: Commercial greenhouse climate, CO₂, lighting, irrigation, and automation control
Key Advantage: The GCS-1 acts as a single control backbone for greenhouse operations, combining environmental monitoring, two-channel lighting control, irrigation scheduling, CO₂ and HVAC equipment control, optional weather monitoring, and greenhouse curtain/roll-up motor automation. Its modular architecture allows the system to expand as the facility grows without replacing the central controller.
