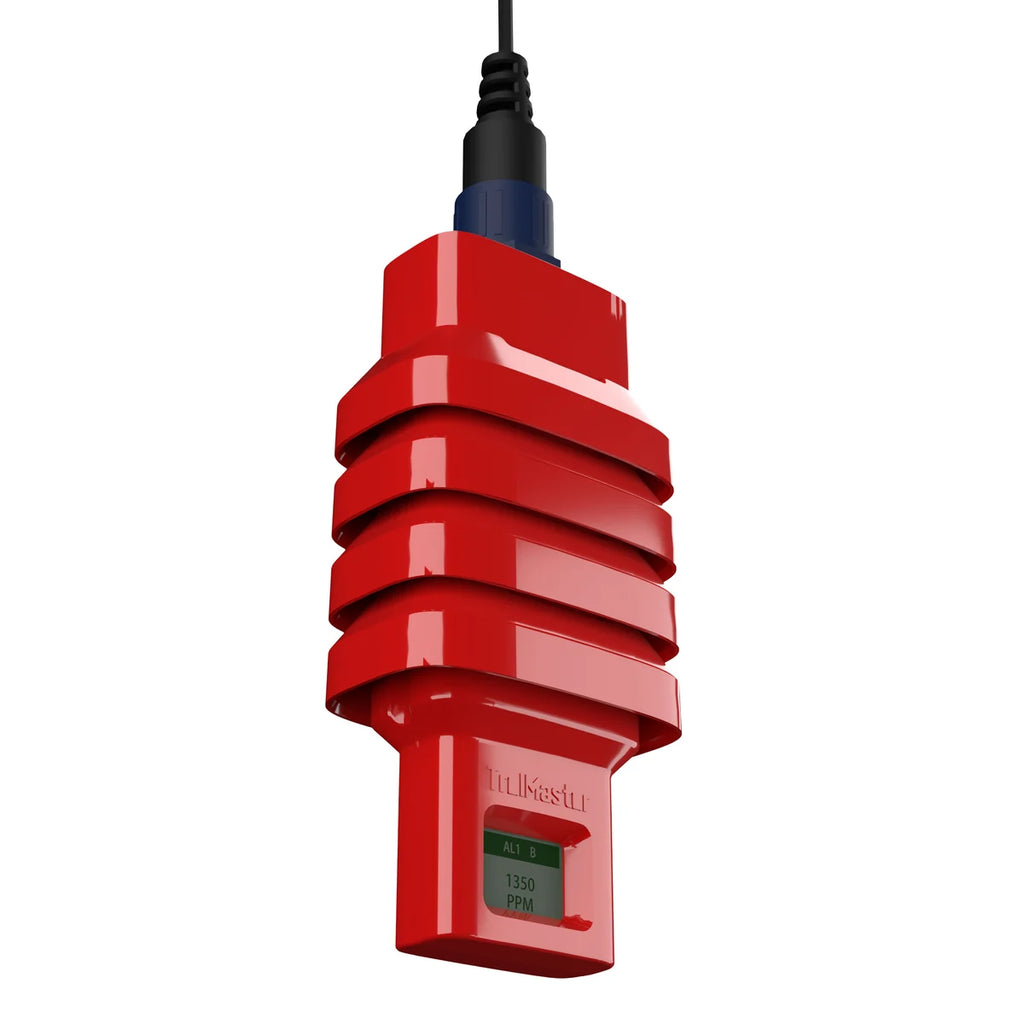

The TrolMaster MBS-K30 is a dedicated CO2 sensor for the Carbon-X CDA-1 multi-zone CO2 safety and control system. It uses NDIR sensing to continuously measure CO2 from 0 to 30,000 ppm, with a self-aspirated enclosure that draws ambient air naturally without a pump. A built-in LCD provides a local live ppm reading, while the included 16-ft RJ12 cable and T-splitter provide plug-and-play connection to the Carbon-X system.
• SKU: MBS-K30
• Sensor Technology: NDIR (Non-Dispersive Infrared)
• CO2 Detection Range: 0–30,000 ppm
• Enclosure Type: Self-aspirated
• Local Display: Built-in LCD with live CO2 ppm reading
• Compatible Controller: TrolMaster Carbon-X CDA-1
• Connection: RJ12 plug-and-play
• Cable Included: 16 ft RJ12 cable + T-shape splitter
• Supplemental Power: Requires TrolMaster SPH-1, sold separately
• Sensors per Carbon-X Zone: 1–2 MBS-K30 sensors
• Carbon-X Capacity: Up to 13 zones and 40 total outputs
• Working Temperature: 32–122°F (0–50°C)
• Working Humidity: ≤90% RH, non-condensing
• Monitoring: Provides live CO2 readings to the Carbon-X CDA-1
• Safety Integration: Supports Carbon-X alarm, CO2 shutoff, ventilation and fire-alarm response functions
• Hydro-X Compatibility: Not compatible with Hydro-X or Hydro-X Pro
• Included: MBS-K30 sensor, 16-ft RJ12 cable and T-splitter
Key Advantage: The MBS-K30 is designed specifically for CO2 safety monitoring rather than ordinary enrichment control, with its unusually wide 0–30,000 ppm detection range and direct integration with Carbon-X's alarm and emergency-response functions.
