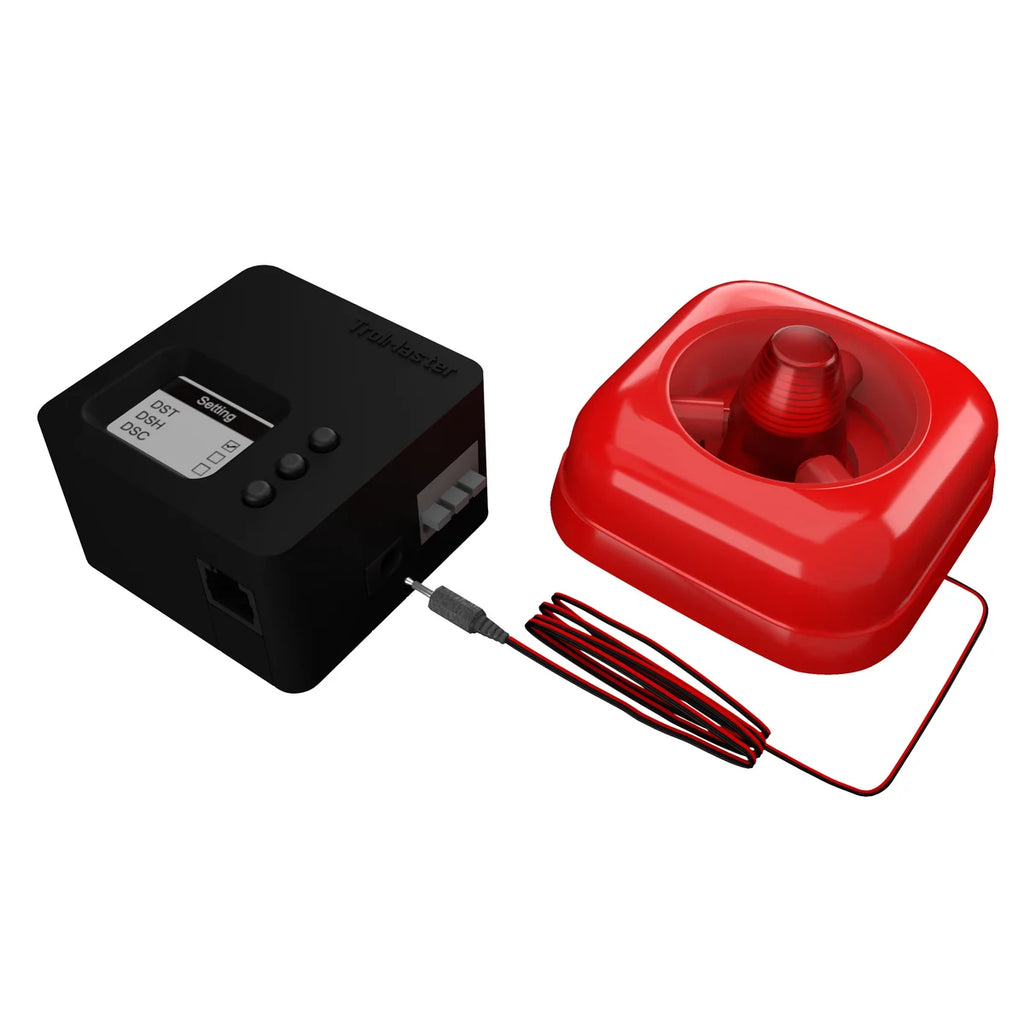

The TrolMaster Carbon-X AS-1 is an audio/visual CO₂ alarm package designed for commercial grow rooms as part of the Carbon-X multi-zone CO₂ safety system. The kit combines the DSD-1 Dry Contact Station, AS-5 Audible-Visual Alarm, and required cable set to provide local audible and visual warnings when CO₂ exceeds a configured high threshold or falls below a configured low threshold. The included dry-contact output can also interface with an existing facility fire-alarm panel.
• SKU: AS-1
• Product Line: TrolMaster Carbon-X CO₂ Safety System
• Kit Includes: DSD-1 Dry Contact Station + AS-5 Audible-Visual Alarm + Cable Set
• Input Voltage: 100–240 VAC, 50/60 Hz
• Output: 24 V, 0.2 A
• Dry Contact Rating: 30 VDC / 250 VAC, 6 A
• Alarm Type: Audible tone + visible strobe/light
• CO₂ Monitoring: High- and low-level threshold alarms
• High-Level Threshold: Adjustable up to 30,000 ppm
• Low-Level Threshold: Adjustable with a floor of 5,000 ppm
• Sensor Channels: Can connect to AL-1, AL-2, or both simultaneously
• Compatible Controller: TrolMaster CDA-1 Carbon-X
• CO₂ Sensor Requirement: Requires CDA-1 and at least one compatible CO₂ sensor, such as MBS-K30
• Fire Alarm Integration: Yes, through DSD-1 N/O and N/C dry contacts
• Communication: RJ12 connection to CDA-1
• Operating Temperature: 0–50°C (32–122°F)
• Operating Humidity: ≤90% RH, non-condensing
• Package Dimensions: 160 × 80 × 90 mm
• Mounting: Inside or outside the monitored grow room
• Carbon-X Capacity: Up to 13 zones and 40 total output devices
Key Advantage: The AS-1 combines local audible/visual CO₂ alarming with dry-contact fire-alarm integration in one package. It can monitor both high-CO₂ and low-CO₂ conditions through the Carbon-X system, while allowing one alarm station to be linked to either or both sensor channels for redundancy.
