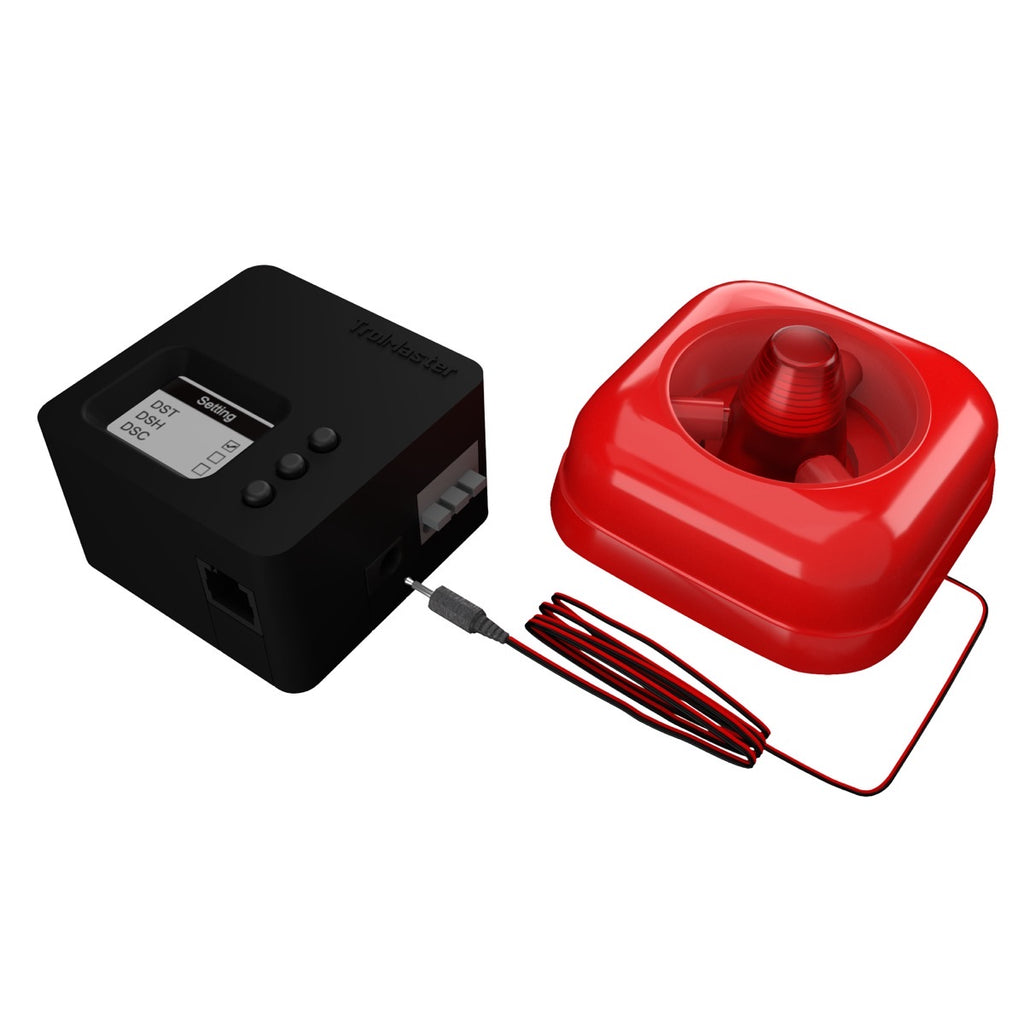

The TrolMaster AS-5 Alarm Station is an audible-visual alarm module designed for commercial cultivation facilities using supplemental CO₂. It connects to compatible TrolMaster controllers and activates a siren and visual strobe/light simultaneously when a monitored parameter crosses a programmed alarm threshold. The unit can be mounted inside or outside a grow room, providing an immediate local warning without requiring personnel to monitor a phone or control dashboard. It is an alarm output module rather than a standalone CO₂ detector.
• SKU: AS-5
• Alarm Type: Audible + visual — siren and strobe
• Compatible Controllers: CDA-1 (Carbon-X), HCS-2 (Hydro-X Pro), HCS-3 (Hydro-X Plus), NFS-2 (Aqua-X Pro)
• Connection Interface: RJ12
• CO₂ Channel Linking: AL-1, AL-2, or both when used with CDA-1
• Power Source: Via DSD-1 Dry Contact Station when integrated with CDA-1
• Operating Temperature: 32–122°F (0–50°C)
• Operating Humidity: ≤90% RH, non-condensing
• Mounting: Inside or outside the grow room/facility
• Standalone Operation: No — requires a compatible TrolMaster host controller and CO₂ sensor
• Alarm Thresholds: Set through the host controller rather than the AS-5 itself
• CDA-1 Low-Level Range: 3,000–15,000 PPM
• CDA-1 High-Level Range: 15,000–30,000 PPM
• Warranty: 3-year limited warranty covering mechanical and electronic components
Key Advantage: The AS-5 adds a prominent on-site audible and visual warning layer to a TrolMaster environmental-control system. When connected to CDA-1, it can monitor either or both CO₂ alarm channels, while HCS-2, HCS-3, and NFS-2 can also use it as a local alarm output.
