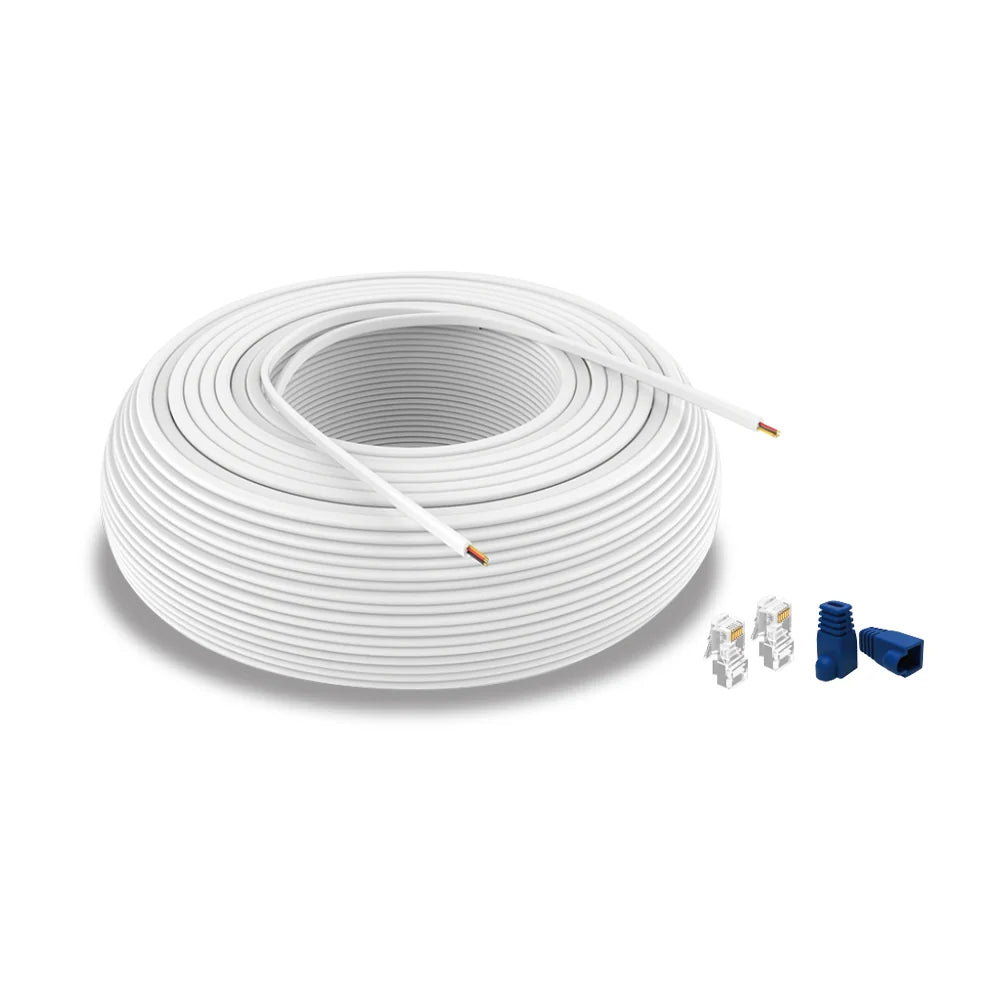

The TrolMaster ECS-500 is a 500-foot (152.4 m) bulk RJ12 communication cable roll designed for custom-length wiring throughout TrolMaster control installations. Instead of relying on fixed-length pre-made cables, installers can cut and terminate the cable to match the exact distances between controllers, sensors, lighting adapters, and control modules. The roll includes 100 RJ12 crystal heads and 100 crystal head protectors, making it suitable for commercial facility build-outs, retrofits, and future system expansion.
SKU: ECS-500
• Cable Length: 500 ft (152.4 m)
• Connector Type: RJ12 / 6P6C
• Cable Style: Flat
• Cable Color: White
• Included RJ12 Crystal Heads: 100
• Included Crystal Head Protectors: 100
• Application: Custom-length TrolMaster communication wiring
• Compatible Devices: TrolMaster sensors, environmental modules, CO₂ modules, temperature/humidity stations, lighting control adapters and other RJ12-connected devices
• Compatible Systems: Hydro-X ecosystem and other TrolMaster systems using compatible RJ12 connections
• Installation: Cut to required length and field-terminate with RJ12 connectors
• Crimping Requirement: Standard RJ12 (6P6C) crimping tool required
• Topology: Suitable for daisy-chain or hub-and-spoke installations
• Cable Routing: Flat profile for low-profile wall, overhead-tray and facility wiring runs
• Working Temperature: 32–122°F (0–50°C)
• Working Humidity: ≤90% RH
• Package Dimensions: 258 × 258 × 295 mm
• Gross Weight: 4.44 kg per pack
• Pre-Terminated: No — supplied as bulk cable for custom termination
• Protective Heads: Provide strain relief and protect the RJ12 locking tab
• Typical Use: Commercial room installations, new builds, retrofits and future expansion
Key Advantage: The ECS-500 allows installers to create exact-length RJ12 communication runs, eliminating the excess cable and cable loops that occur when using standard 4-ft or 16-ft pre-made cables. With 500 ft of cable and 100 connector sets included, it is particularly suited to larger TrolMaster installations where devices are distributed throughout a room or across multiple zones.
