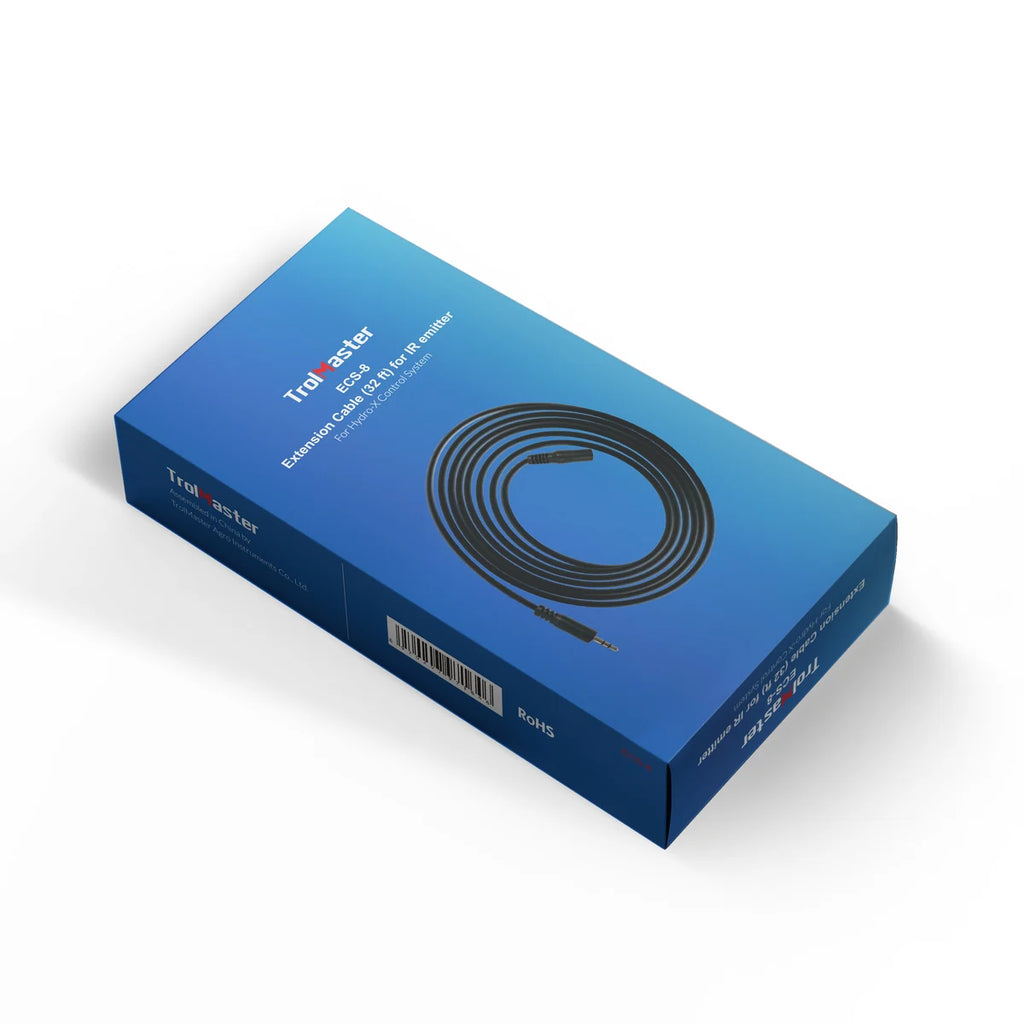

The TrolMaster ECS-8 is a 32-foot (9.75 m) male-to-female extension cable for IR emitters, designed to increase the distance between an IR emitter and the TrolMaster ARS-1 AC Remote Station or Beta-1 Digital Day/Night Remote Controller. It is a passive, straight-through extension that allows the IR emitter to be positioned directly in line with a mini-split AC's IR receiver, even when the controller is installed farther away. No reprogramming or additional configuration is required.
• SKU: ECS-8
• Cable Length: 32 ft (9.75 m)
• Connector Type: Male / Female IR emitter plug
• Compatible Controllers: ARS-1 AC Remote Station, Beta-1 Digital Day/Night Remote Controller
• Compatible Systems: TrolMaster Hydro-X and Tent-X
• Function: Extends the distance between controller and IR emitter
• Cable Type: Passive straight-through extension
• Signal: Carries the IR emitter connection; no independent data protocol
• Installation: Plug-and-play; no reprogramming required
• IR Emitter Requirement: Existing compatible IR emitter required; not included
• Mini-Split Control: Allows the emitter to maintain line-of-sight with the AC's IR receiver
• Daisy-Chaining: Male/female connectors allow multiple ECS-8 cables to be connected in series
• Maximum Extension: TrolMaster does not publish a maximum daisy-chain distance
• Working Temperature: 32–122°F (0–50°C)
• Working Humidity: ≤90% RH, non-condensing
• Package Dimensions: 156 × 83 × 30 mm
• Package Contents: 1× ECS-8 32-ft Extension Cable
• Warranty: 3 years
Key Advantage: The ECS-8 provides 32 feet of additional placement flexibility for the IR emitter, allowing an ARS-1 or Beta-1 controller to remain in a convenient location while the emitter is positioned directly in front of the mini-split's IR receiver. This is especially useful in larger grow rooms where the controller and HVAC head are far apart.
