Total Grow Control CO2, Humidity, Temperature, and Light Sensor

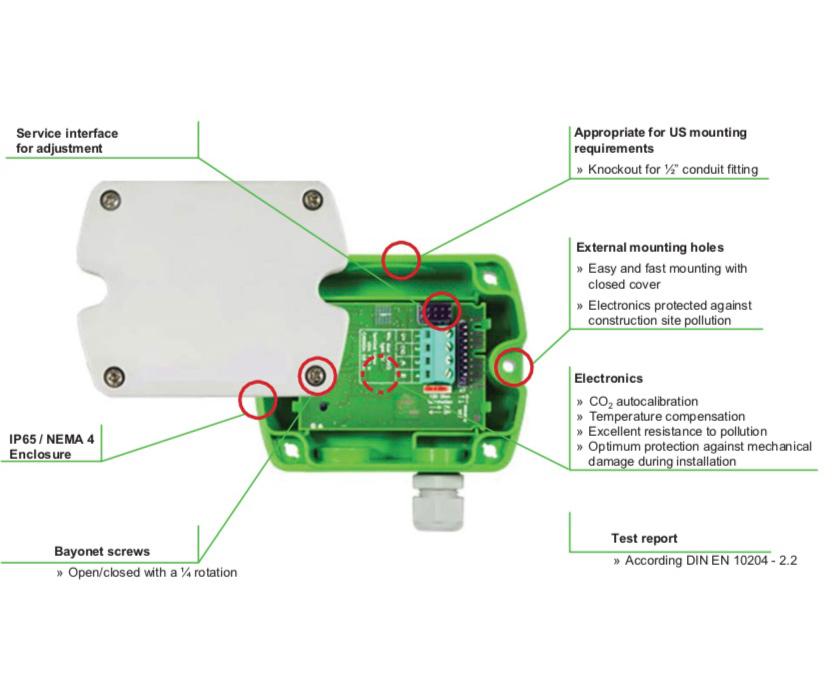

The 080-EVC4 combines CO2, relative humidity (RH) and temperature (T) measurement as well as a light detection photocell in an innovative solution. It is ideal for the automation of agriculture where multi-point sensing is required, and can be deployed quickly in demanding climate and process control environments.
Long Term Stability
The 080-EVC4 incorporates a dual wavelength NDIR CO2 sensor, which compensates for ageing effects, is highly insensitive to pollution and offers outstanding long term stability. The RH sensing element is protected against dust, dirt and corrosion.
High Measurement Accuracy
A multiple point CO2 and T factory adjustment procedure leads to excellent CO2 measurement accuracy over the entire T working range.
Analogue, Digital and Passive T Outputs
The CO2, RH and T measured data is available as either a 0-10V or 4- 20mA analog output or Modbus RS-485. The photocell sensor is available as a wetted 24VDC contact.
