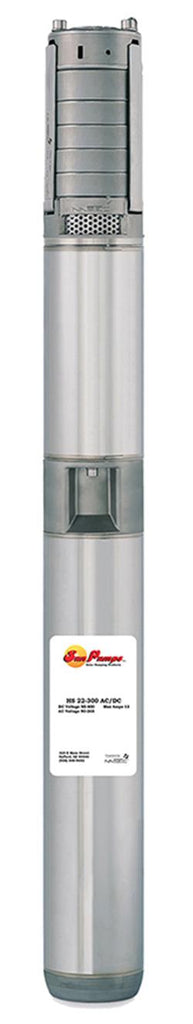

Sun Pumps HS-22-154 AC/DC Centrifugal Solar Submersible Pump, 22GPM, 154Ft Head, 120-400 VDC or 120-265 VAC, 1600W, Max 92°F
The HS-22-154 AC/DC from Sun Pumps is a high-capacity centrifugal solar submersible pump engineered for remote and domestic water supply installations.
Key Features
Hybrid AC/DC Power: Operates using 120–400 VDC or 120–265 VAC, allowing seamless connection to solar panels, wind turbines, generators, or standard grid power.
Built-in MPPT: Features integrated Maximum Power Point Tracking to maximize water flow efficiency according to available daily solar energy.

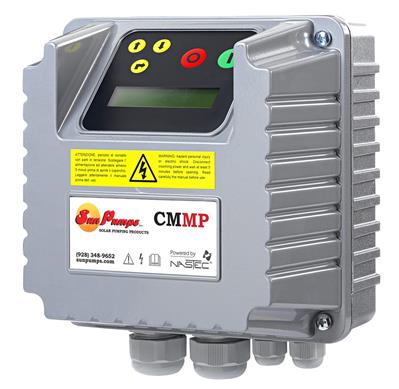

Onboard Protection: Built-in inverter logic protects the system against overloads, voltage surges, and dry running.
Durable Build: Constructed using robust 304 stainless steel components for enhanced corrosion resistance and extended service life.
Repairable Design: Engineered for field serviceability and modular repair.
Technical Specifications
Flow Rate: 22 Gallons Per Minute (GPM)
Maximum Head: 154 Feet
Power Consumption: 1600 Watts
Voltage Range: 120–400 VDC / 120–265 VAC
Maximum Water Temperature: 92°F
