Sun Pumps Brushless Submersible Motor (60VDC, 3000RPM, Splined), 0.75HP, MTR BLM-SB-073S-60

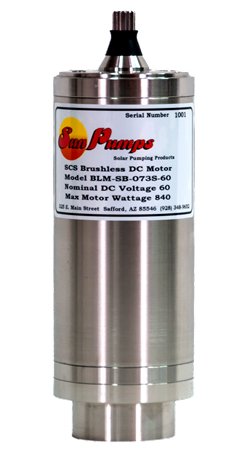

The MTR BLM-SB-073S-60 is a high-efficiency, permanent magnet, sensorless brushless DC submersible motor manufactured by Sun Pumps.
Key Specifications
Horsepower: 0.75 HP
DC Voltage Range: 30 to 60 VDC (rated at 60VDC)
Full Load RPM: ~3150 RPM (rated at 3000 RPM)
Max Load Current: 14 Amps
Motor Efficiency: Approximately 78%
Shaft Type: Splined
Weight: 10.6 lbs (4.8 kg / motor only context varies)
Features & Design
Technology: Utilizes advanced sensorless brushless DC technology for long life and minimal maintenance.
Origin: Designed and assembled in Safford/Arizona, USA.
Requirements: This unit requires an external compatible brushless DC pump controller to operate.
Application: Built specifically for the Sun Pumps SCS series of submersible solar water pumping systems.
