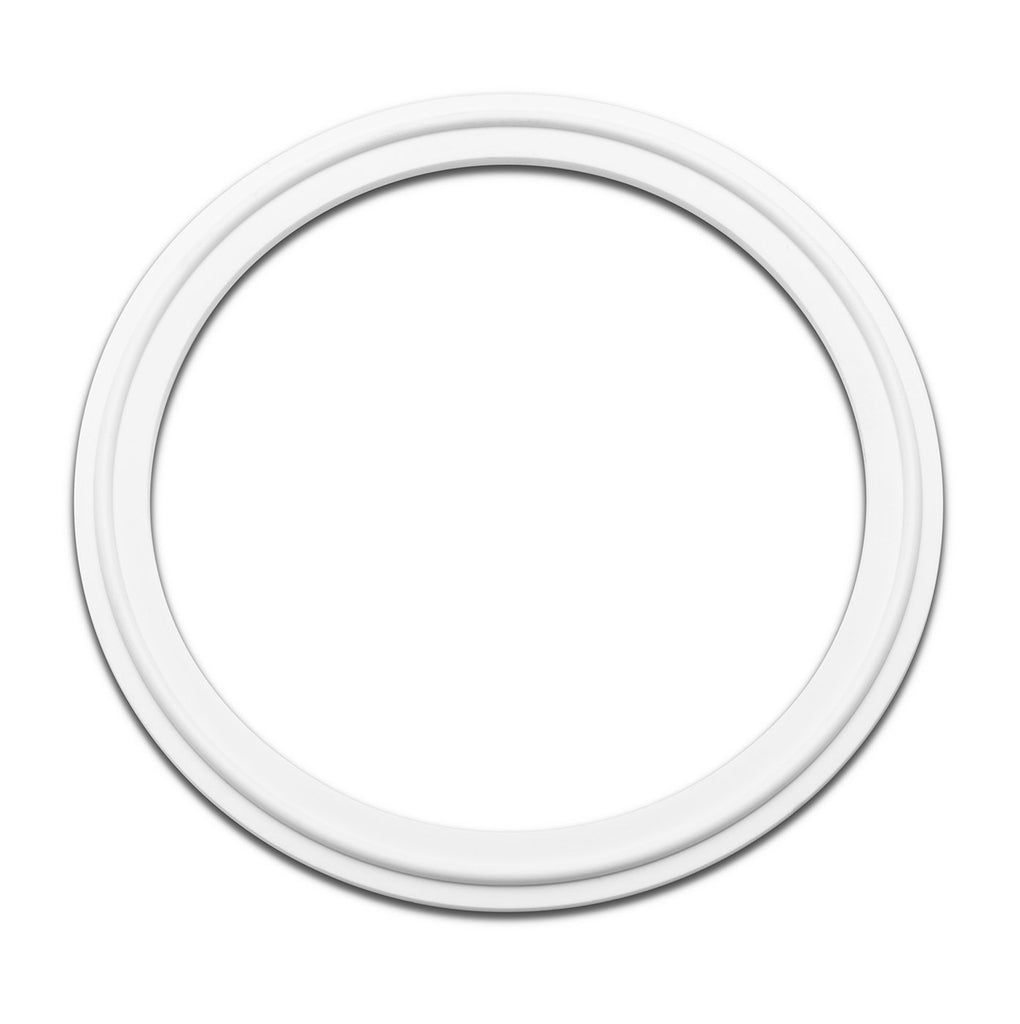

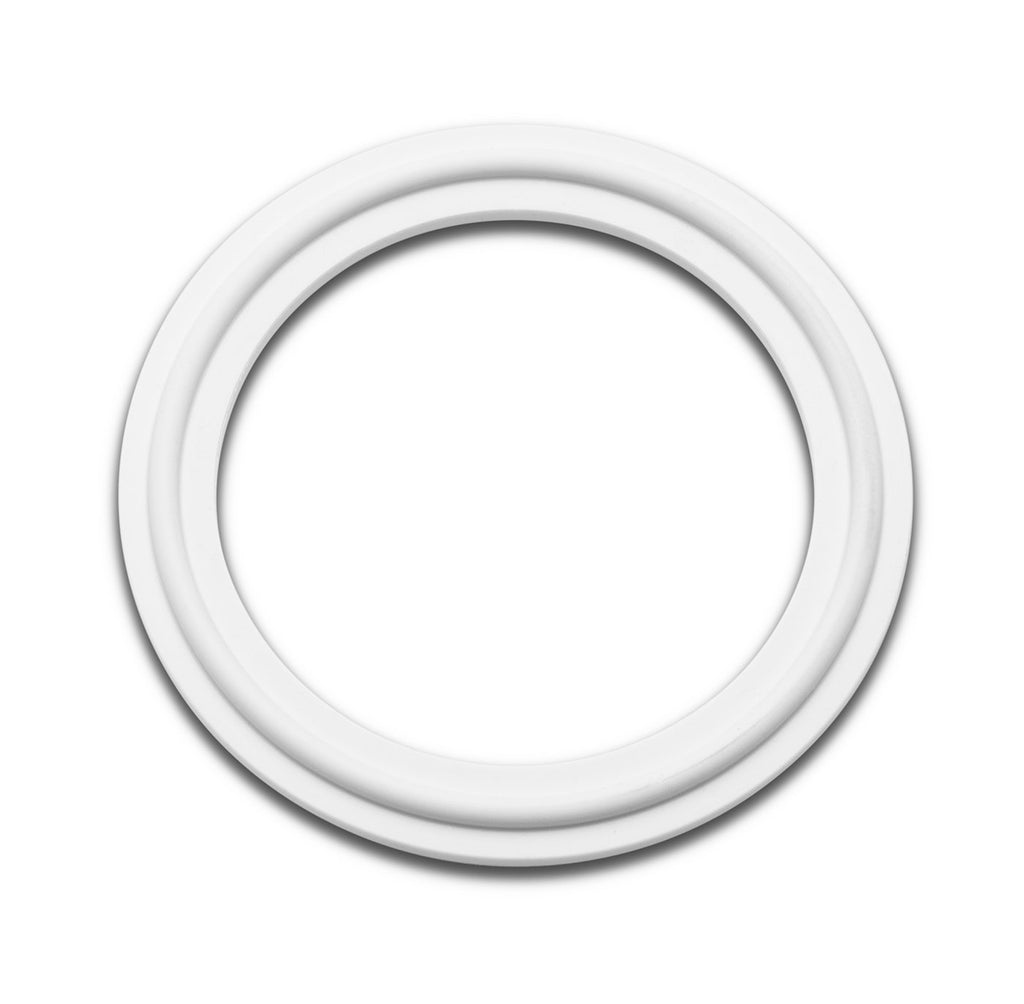

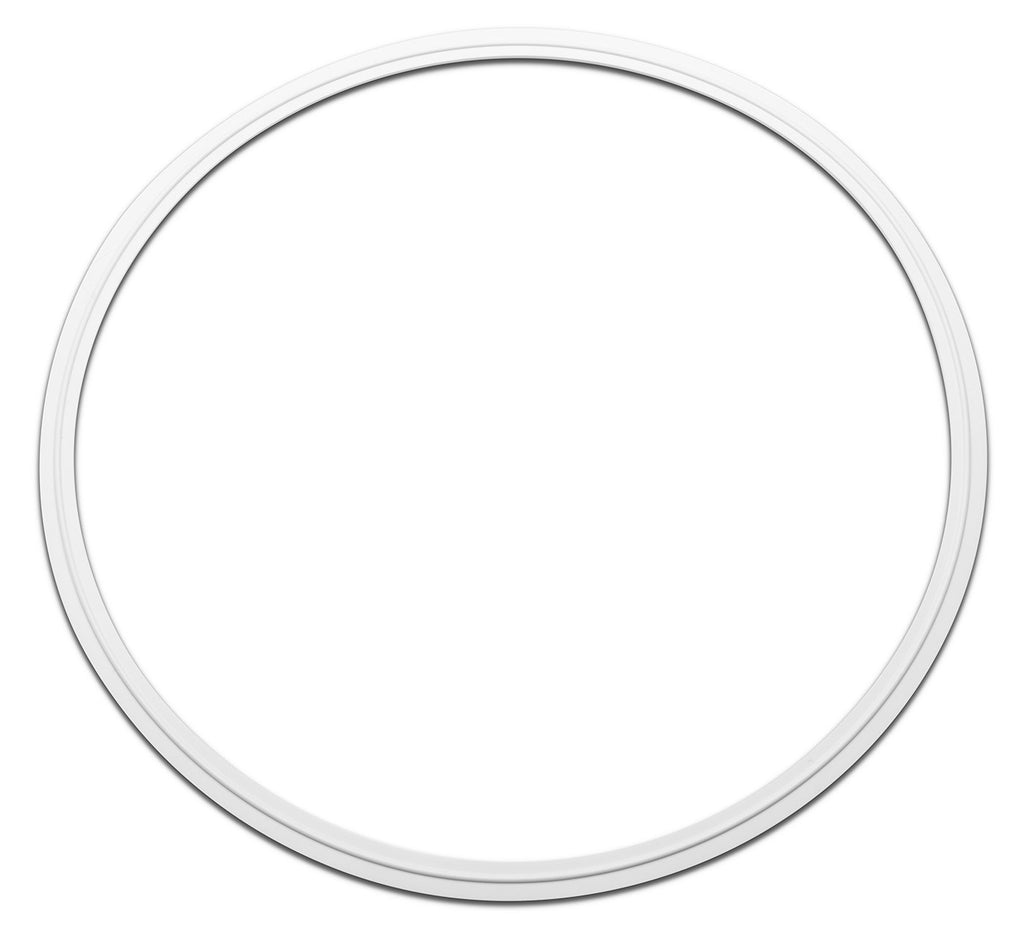

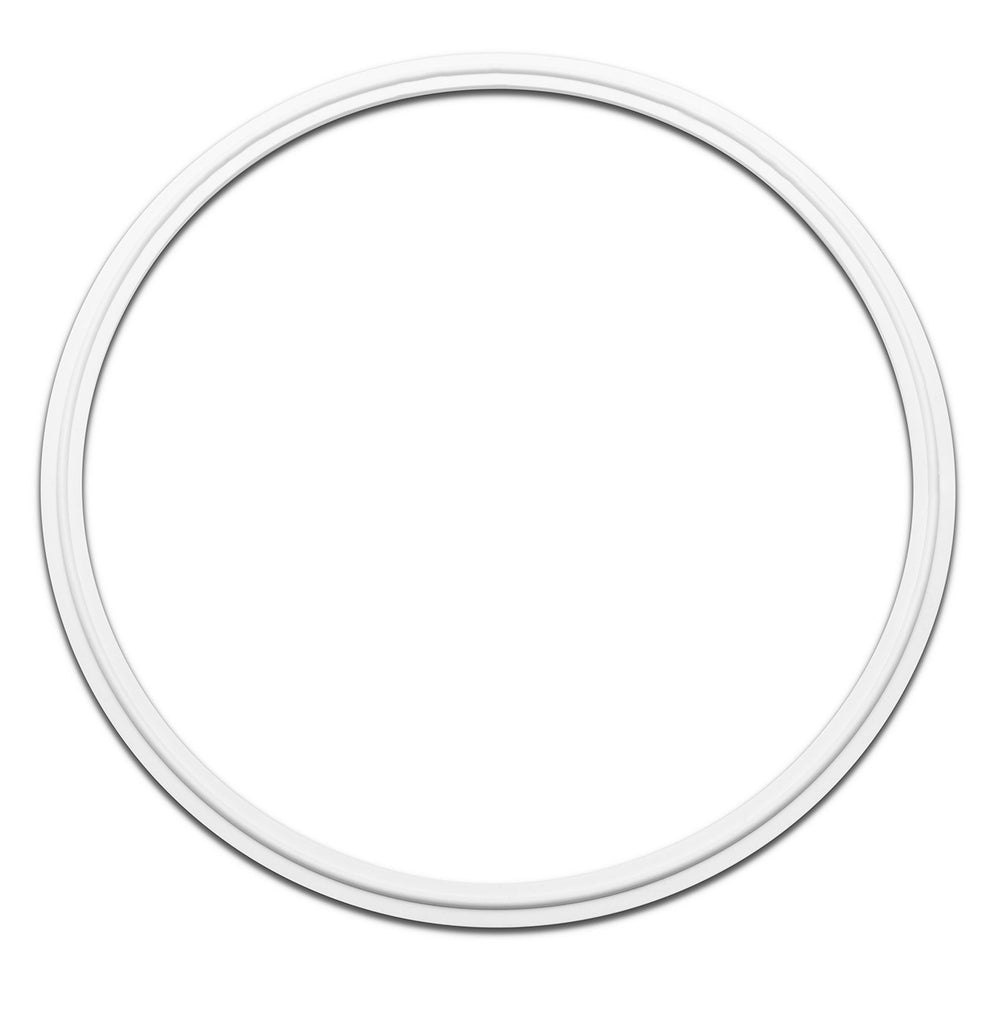

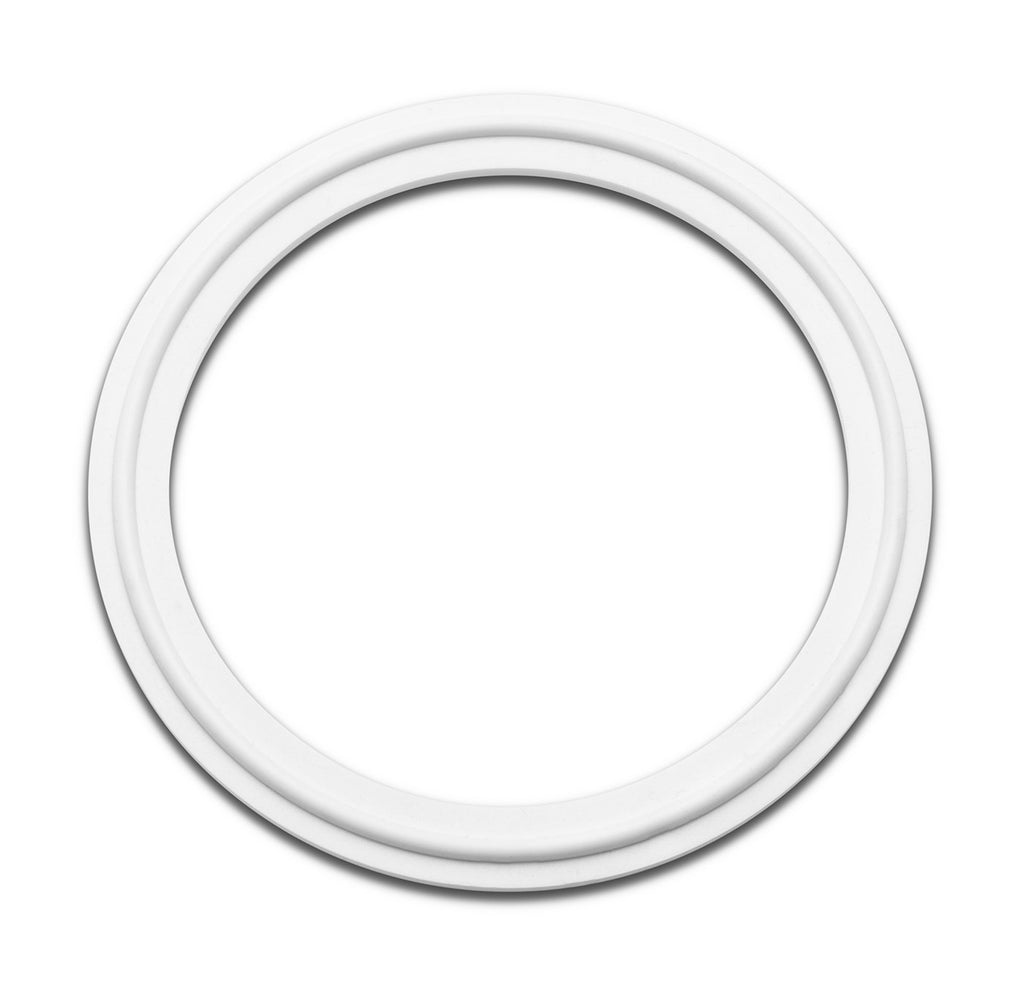

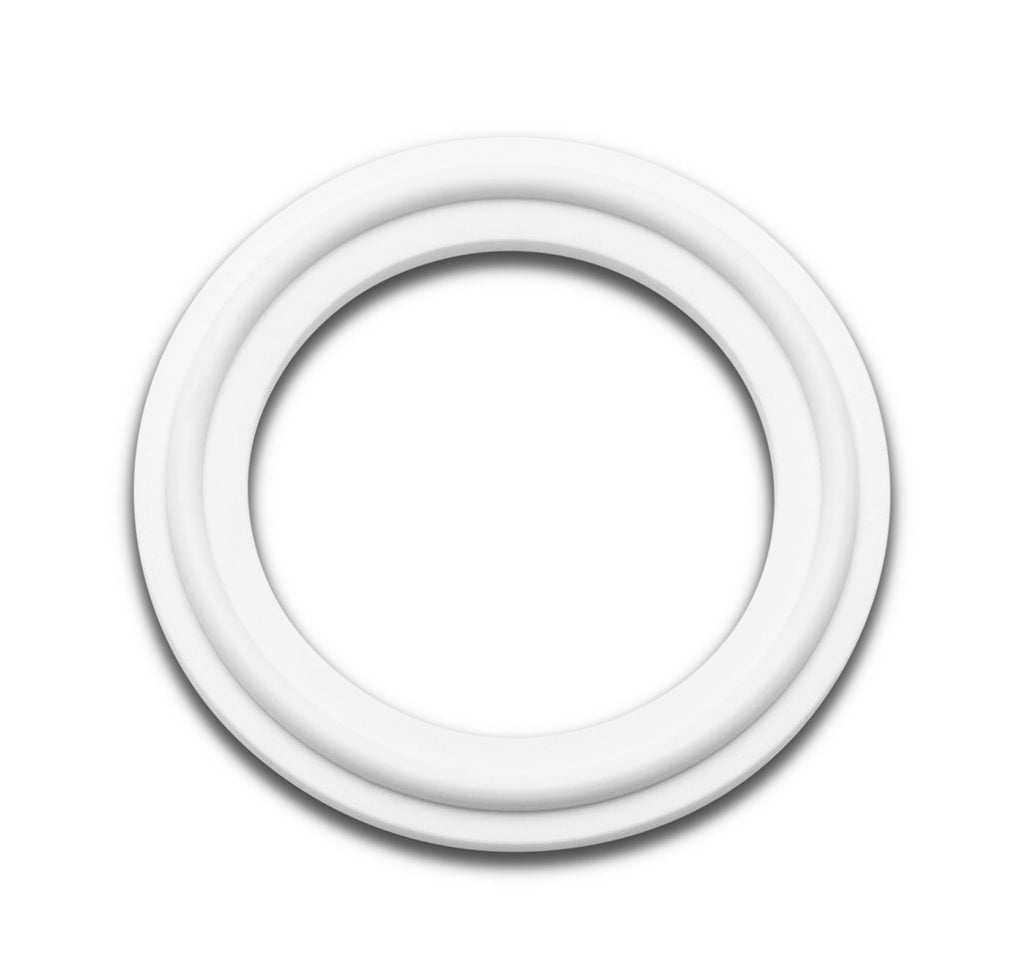

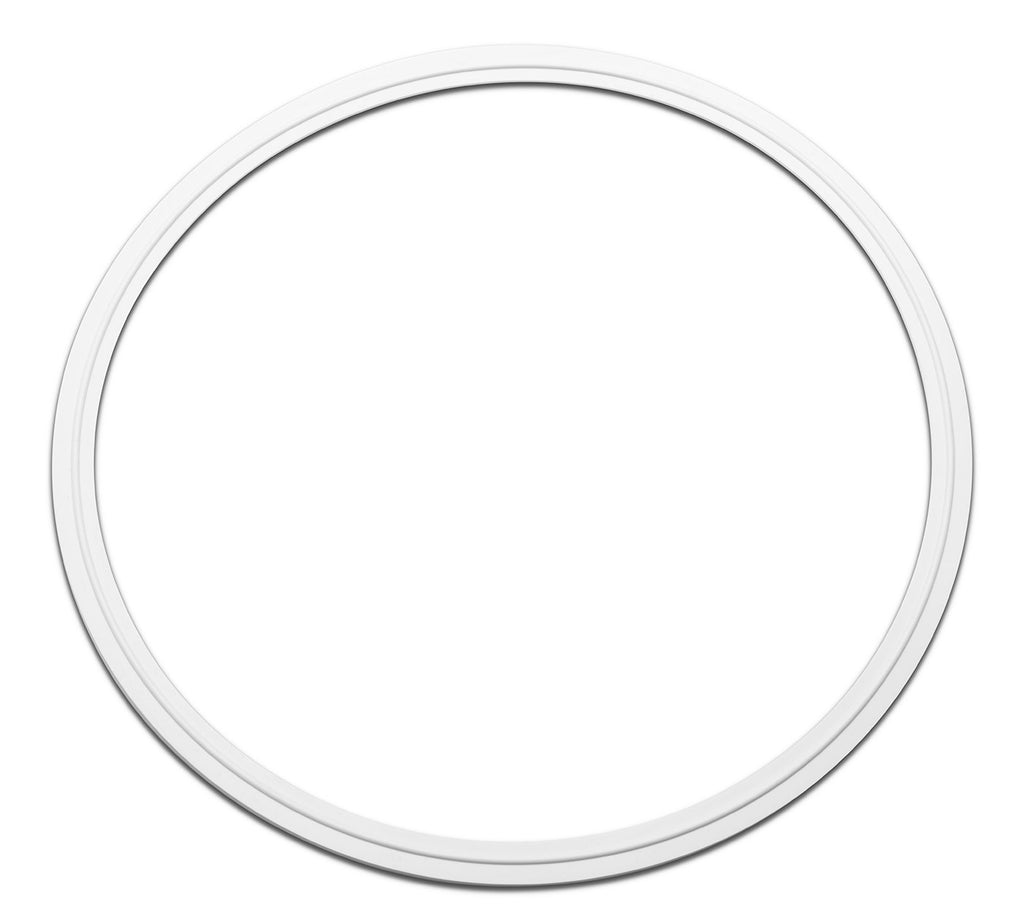

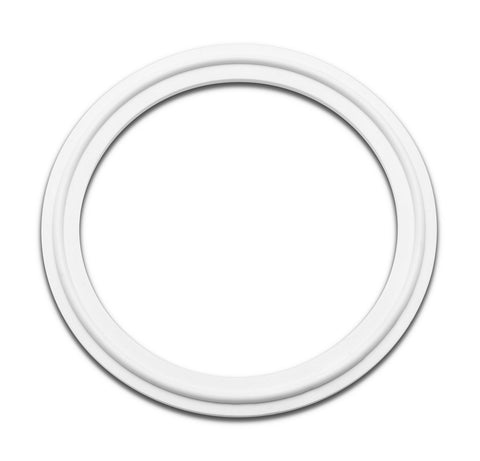

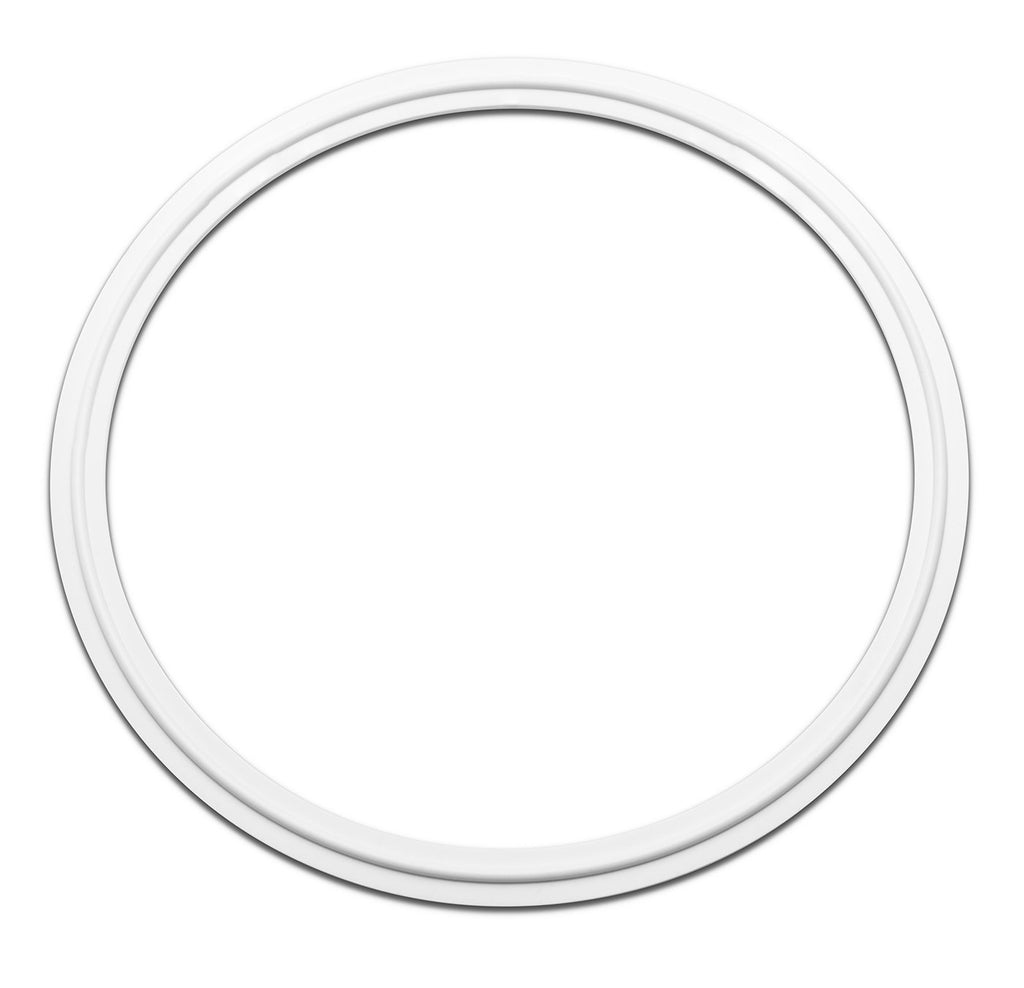

Silicone Tri-Clamp Gaskets
Industrial-grade silicone gaskets designed for alcohol-based extraction systems. These gaskets provide exceptional chemical compatibility with alcohol solvents while maintaining stability across an extensive operating temperature range. Engineered for use with jacketed reactors and tri-clamp Buchner funnels in post-processing and winterization applications.
Performance Characteristics:
- Superior alcohol resistance with minimal extractable content
- Thermal operating range: -40°F to +446°F (continuous static use)
- 65 Shore A durometer with excellent compression recovery
- Outstanding abrasion, tear, and compression resistance
- USP Class VI, FDA, and 3A certified
Available Sizes: 1.5", 2", 3", 4", 6", 10" Easy On Flanged, 12" Easy On Flanged
Material & Specifications: White silicone, tri-clamp connection, 65 Shore A hardness
Chemical Compatibility Summary:
| Alcohol Type | Compatibility |
| Isopropyl, Methyl, Propyl, Isobutyl | A - Excellent |
| Ethyl, Hexyl, Butyl, Octyl | B - Good |
| Butane, Propane | D - Poor |
Disclaimer: BVV recommends maximum -40°F operating temperature and assumes no responsibility for use with incompatible chemicals.
