Plasma Air 100 Series Industrial Ionizer

SKU: PA100E
Shipping calculated at checkout.

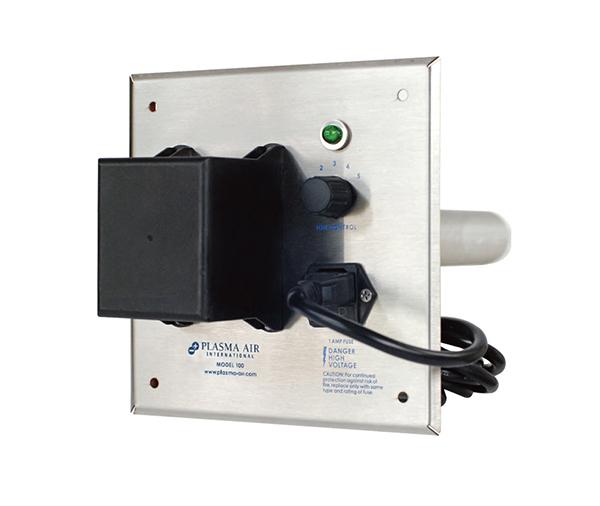

The Plasma Air 100 Series ion generator is a one-tube commercial quality unit intended for installation in air handling units (AHU), furnaces, or duct systems for residential and commercial applications. This ionization equipment is effective in reducing harmful pollutants and odors by introducing positive and negative ions into the system airflow. The number of units and the size of the ionization tubes are dependent on the airflow in the system and the severity of the pollution problem.

Models 101 / 102 / 103 are single-tube units that can be installed in ductwork utilizing the pre-drilled flange and factory applied gasket. The installer makes a duct cutout and secures the unit with self-tapping sheet metal screws. The unit can also be installed inside an HVAC unit utilizing a contractor supplied mounting bracket. Power to the ionization unit should be interlocked with system fan operation. The power inlet fitting provides easy disconnection of the power supply for servicing the unit. A five position ion level control knob varies the ion output between 50% and 100%. Power cord is included.



VOLTAGE

120V AC / 230V AC

ENERGY USE

8 watts

CAPACITY

Up to 3,000 CFM. Multiple units can be used.
