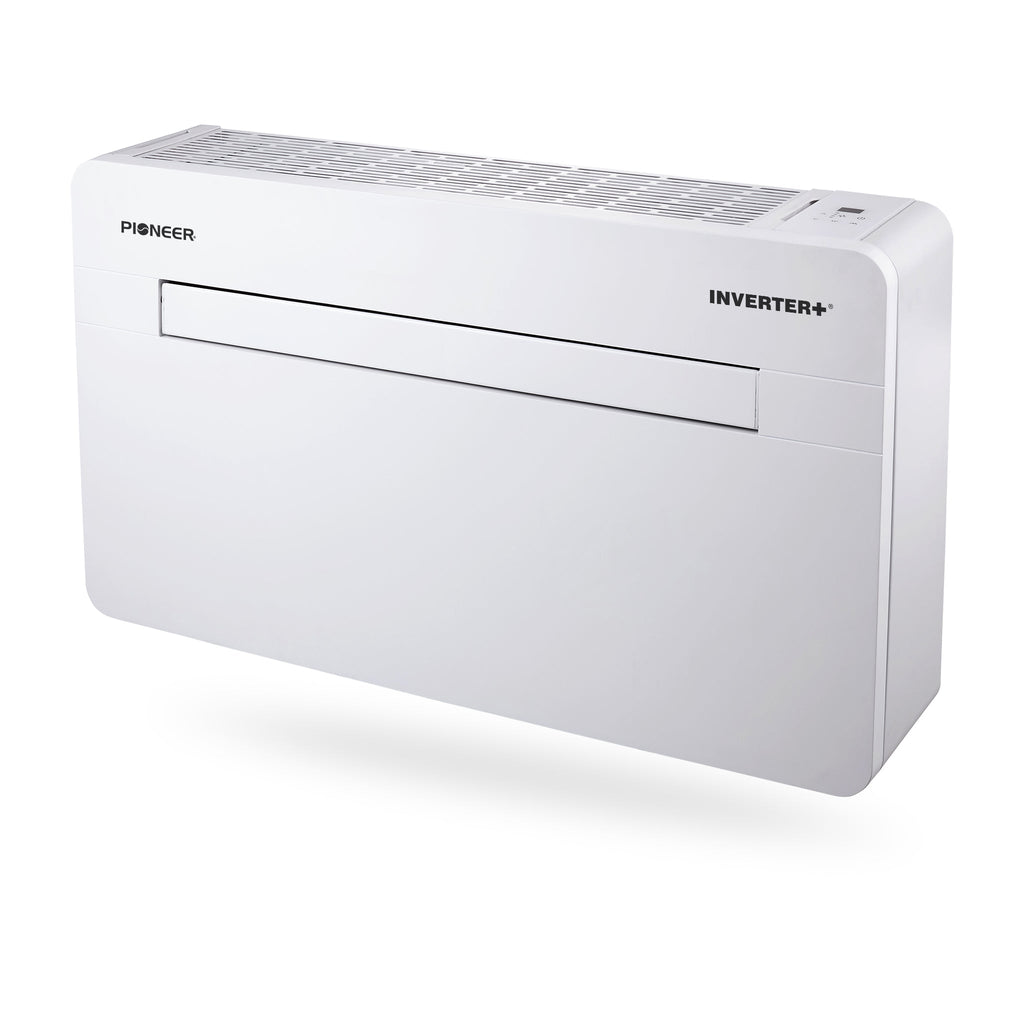

Pioneer 12,000 BTU All-in-One Console Inverter Heat Pump, Through-the-Wall Monoblock Packaged Unit with No Outdoor Condenser, 230V

Summary

• Inverter-Driven Pioneer® All-In-One Packaged Console Heat Pump System
• Cooling capacity: 11,800 BTU/H with 15.55 SEER2 efficiency
• Heating capacity: 10,900 BTU/H with 8.15 HSPF2 efficiency
• Electric Heat capacity: 10,236 BTU/H
• Voltage: 208/230V, 60Hz, 1Ph
• Factory-Precharged with Environmentally Friendly R-32 Refrigerant

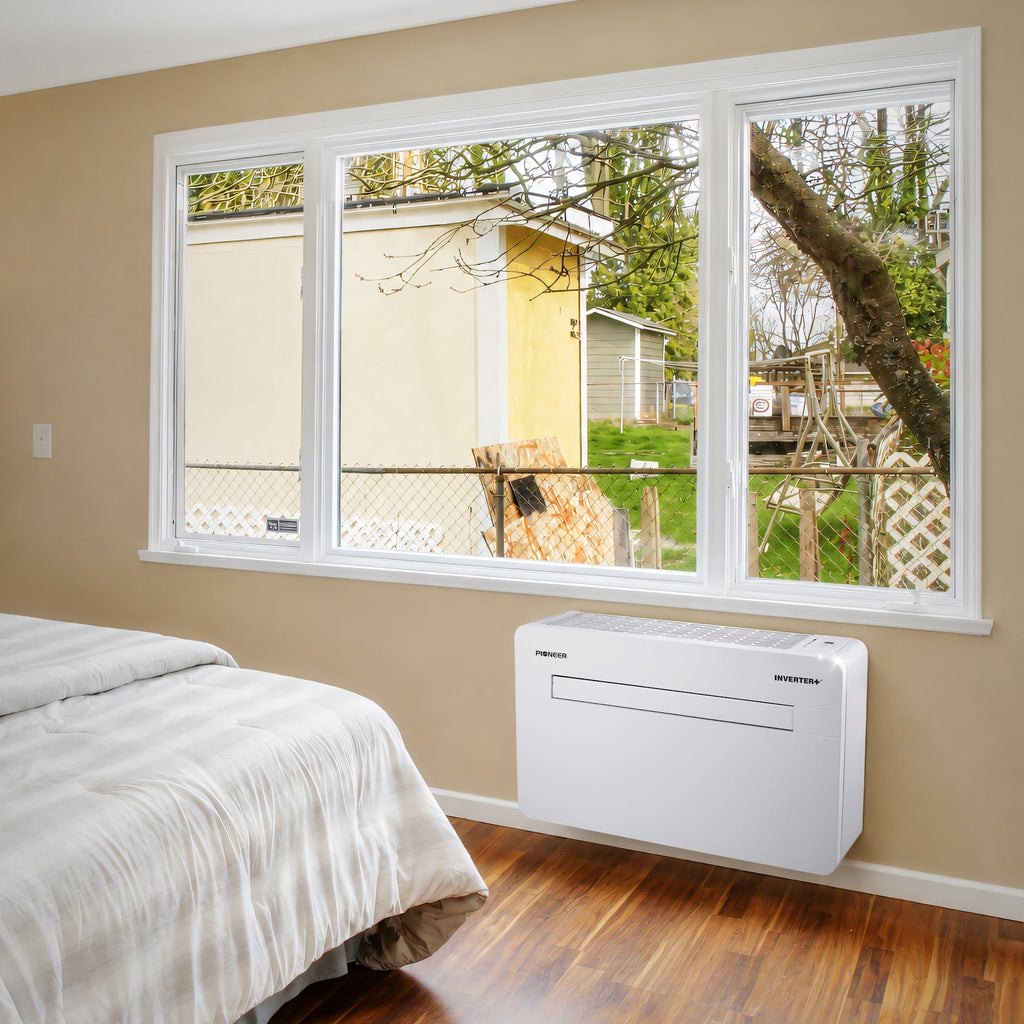

• Monoblock-style design with no outdoor unit required

Features

• Heat Pump with Cooling, Heating, Dry, Auto and Fan Modes

• Washable, Reusable Air Filters
• Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers)

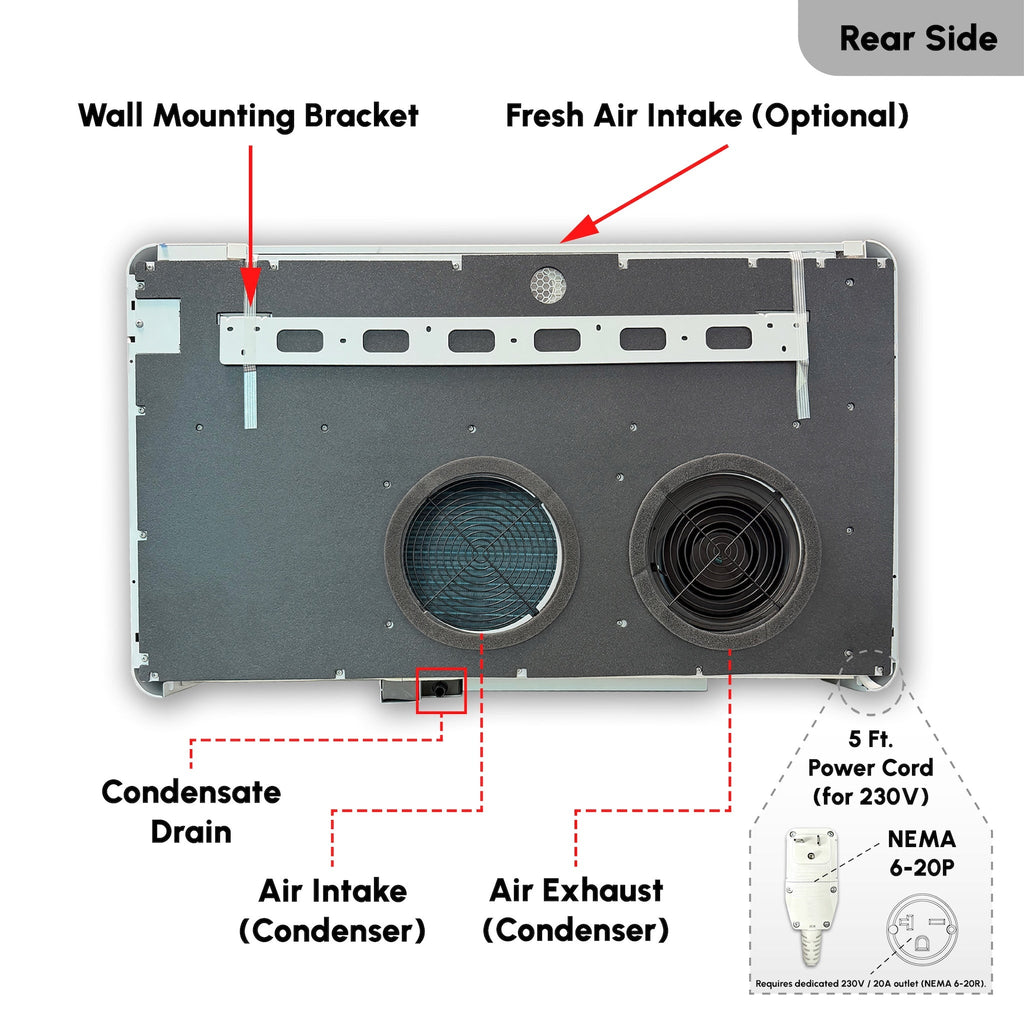

• Treated Airflow of 265 CFM with optional 18 CFM of Fresh-Air
• Functional Remote with:
  • SLEEP Mode, for Energy-Conservation
  • Timer On/Off Control

Technical Information & Performance

• Power Supply: 208~230V, 60Hz, 1Ph
• Cooling Rated Capacity: 11,800 BTU/h

• Heating Rated Capacity: 10,900 BTU/h
• Electric Heat Rated Capacity: 10,236 BTU/h

• Refrigerant Type: R-32
• Refrigerant Charge: 22.9 oz (650 g)

• Rated Power (Cooling): 1,209 W

• Rated Power (Heating): 947 W
• Rated Power (Electric Heater): 3,000 W

• Rated Current (Cooling): 6.1 A
• Rated Current (Heating): 4.8 A
• Rated Current (Electric Heater): 13.6 A

• Required Circuit Amperage: 20A (double-pole)
• SEER2: 15.55 BTU/W.h

• HSPF2: 8.15 BTU/W.h
• Airflow: 330 CFM

• Sound Level: 48 / 45 / 42 dB(A)
• Air Moisture Removal Capacity: 1 Liter/hour
• Temperature Setting Range (Remote Control): 64-86°F (18-30°C)

• Cooling Mode Operating Range (Indoor): 63-90°F (17-32°C)

• Cooling Mode Operating Range (Outdoor): 63-109°F (17-43°C)
• Heating Mode Operating Range (Indoor): 28-81°F (-2-27°C)
• Heat Pump Heating Mode Operating Range (Outdoor): 28-75°F (-2-24°C)
• Dimensions (WDH): 39"-1/2 x 7"-5/8 x 22"-3/4 Inches
• Weight: 117.0 lbs (53.1 kg)
