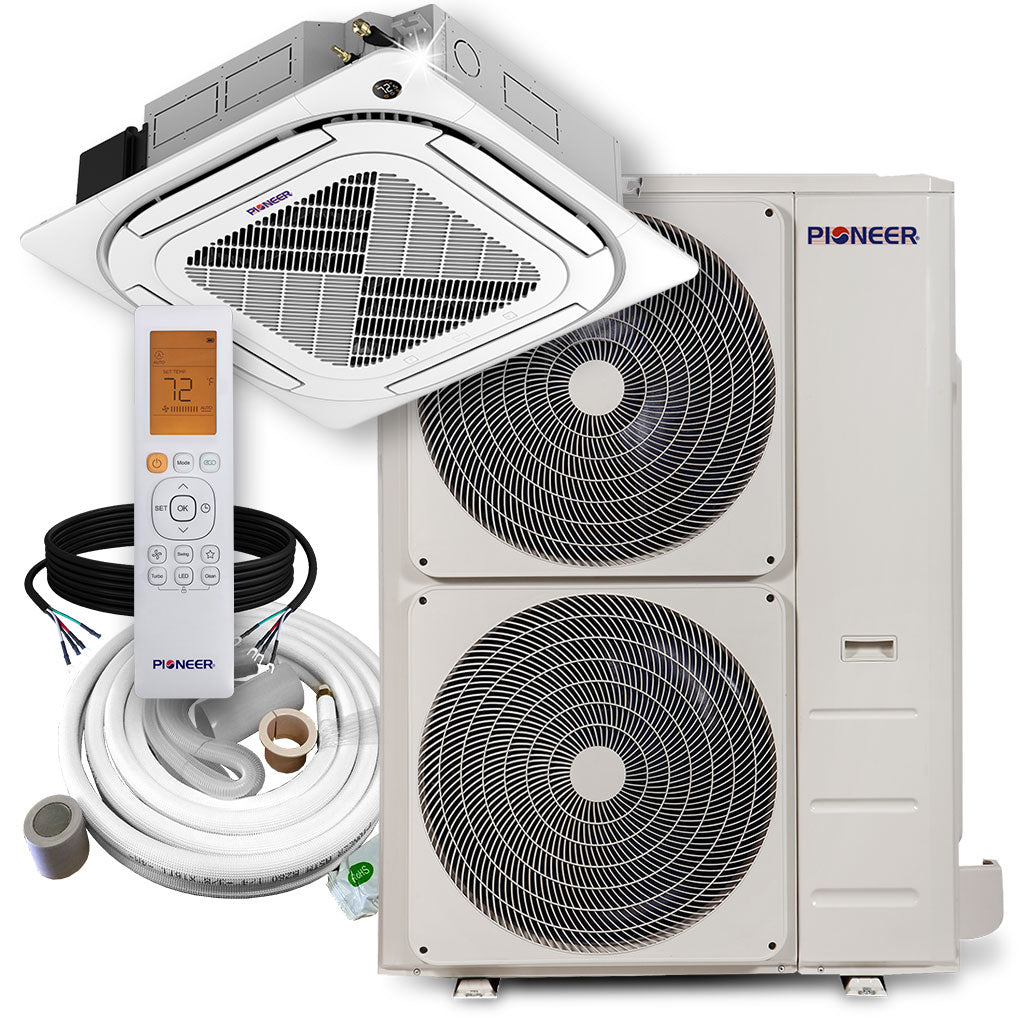

Pioneer® Quantum Ultra™ 48,000 BTU 19 SEER2 230V 4-Way Ceiling Cassette Ductless Mini-Split Air Conditioner Inverter Heat Pump
SKU: CYB048GMSI20RL-10S
Summary
- High Efficiency Quantum Ultra Four-Way Ceiling Recessed Cassette Split Heat Pump System
- Cooling capacity: 48,000 BTU/H with 19.0 SEER2 / 9.5 EER2 efficiency
- Heating capacity: 50,000 BTU/H with 9.9 HSPF2 / 2.96 COP2 efficiency
- Voltage: 208/230V, 60Hz, 1Ph
-
Four-Way Ceiling Recessed Cassette Mounted Ductless Air Conditioning & Heating System
- Variable-Speed DC Inverter Driven Performance
- Factory-Precharged with Environmentally Friendly R454b Refrigerant
-
Standard Ambient Range Operation (As low as -13°F in Heating / As high as 131°F in Cooling)
Features
- Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
- Dual-Drainage Ports
- Washable, Reusable Air Filters
- Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers)

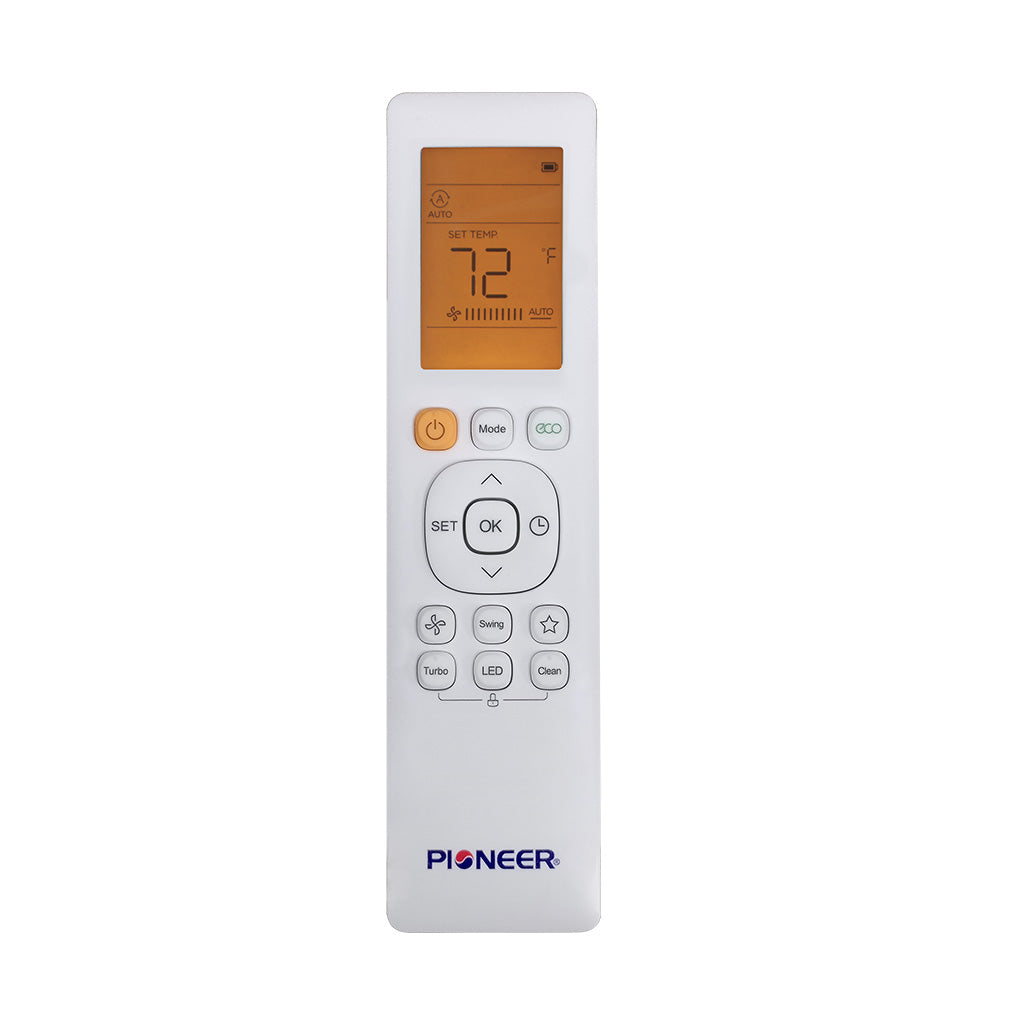

- Functional Remote with:
- ECO and SLEEP Modes, for Energy-Conservation
- Timer On/Off Control
- TURBO, for Times of High-Demand
- Self-Clean Cycle
- MEMORY, to Recall Favorite Settings
- FOLLOW ME, to Detect and Adjust to Local Temperature
Technical Information & Performance
-
System Kit
-
Power Supply: 208~230V, 60Hz, 1Ph
-
Cooling Rated Capacity: 48,000 BTU/h
-
Cooling Capacity Range: 10,600~50,400 BTU/h
-
Cooling SEER2: 19.0 BTU/W.h
-
Cooling EER2: 9.5 BTU/W.h
-
Heating Rated Capacity: 50,000 BTU/h
-
Heating Capacity Range: 19,900~61,700 BTU/h
-
Heating HSPF2 (Region IV/V): 9.9 / 7.7 BTU/W.h
- Heating C.O.P.2 (47°F/5°F): 2.96 / 2.11 W/W
-
Refrigerant Type: R454b
-
Recommended Room Size: 1,400~1,800 sq ft
-
Minimum Room Size: 143 sq ft
-
Piping Diameter: 3/4" (Gas) / 3/8" (Liquid)
-
AHRI Reference: 218010992
-
Indoor Unit
-
Part Number: CB048GMSILDFHG
-
Air Flow (Turbo/Hi/Med/Lo/Mute): 1,236 / 1,124 / 1,018 / 800 / 689 CFM
-
Sound Level (Turbo/Hi/Med/Lo/Mute): 56 / 52 / 50 / 42 / 38 dB(A)
-
Product Dimensions (WDH): 32"-5/8 x 32"-5/8 x 11"-3/8 Inches
-
Carton Dimensions (WDH): 35"-7/8 x 35"-7/8 x 13" Inches
-
Net / Gross Weight: 64.5 / 76.1 lbs
-

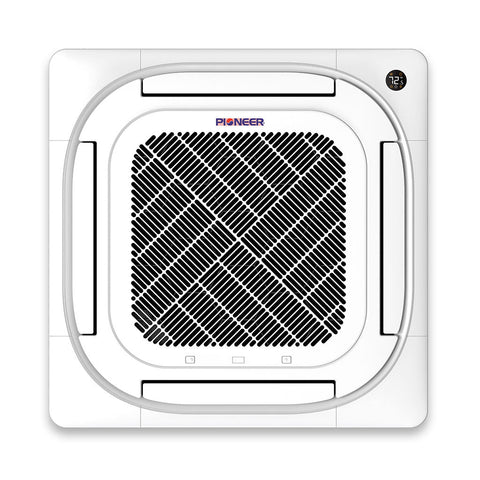

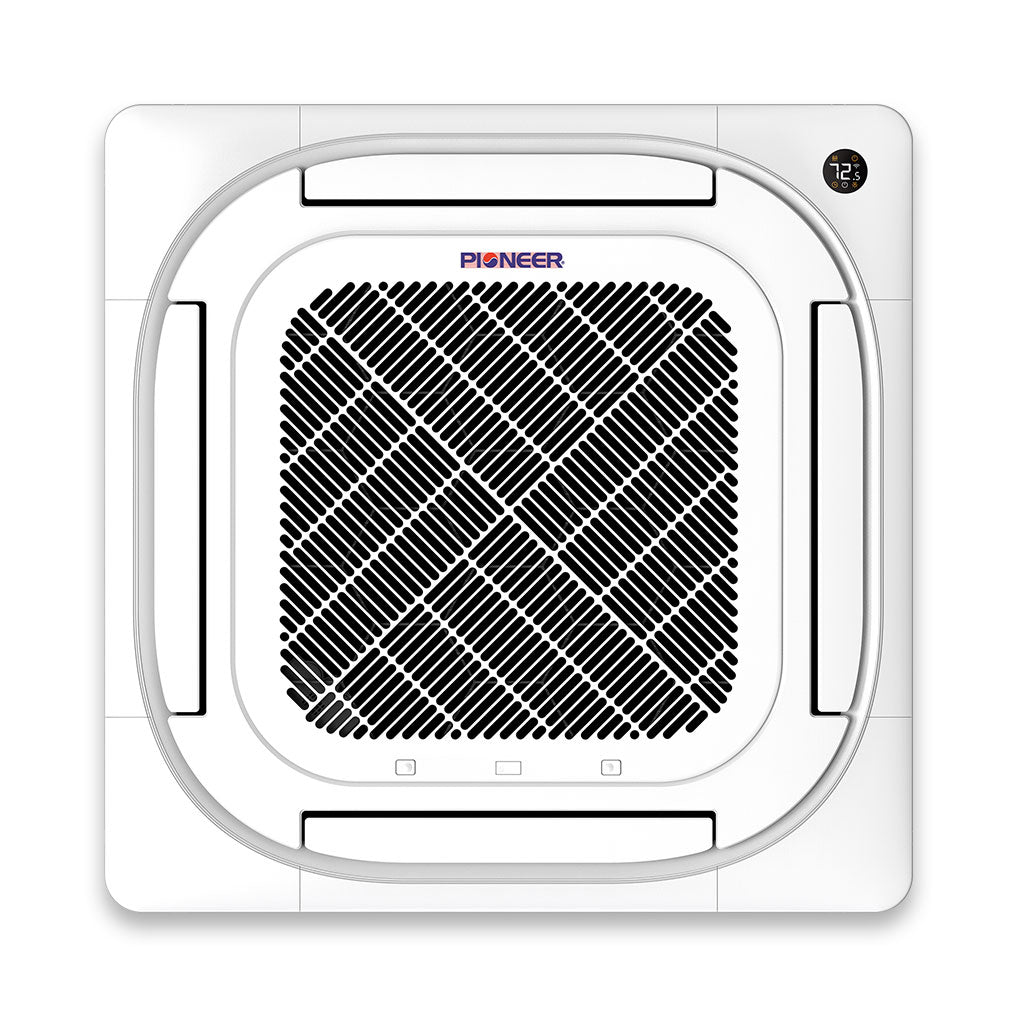

Decorative Panel
-
Product Dimensions (WDH): 37"-3/8 x 37"-3/8 x 2"-1/8 Inches
-
Carton Dimensions (WDH): 40"-3/4 x 40"-3/4 x 3"-1/2 Inches
-
Net / Gross Weight: 13.2 / 19.8 lbs
-

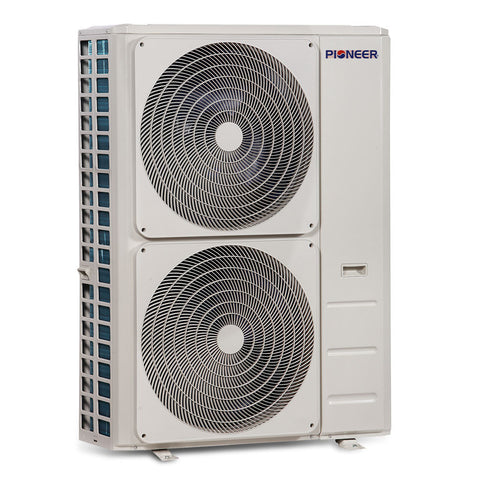

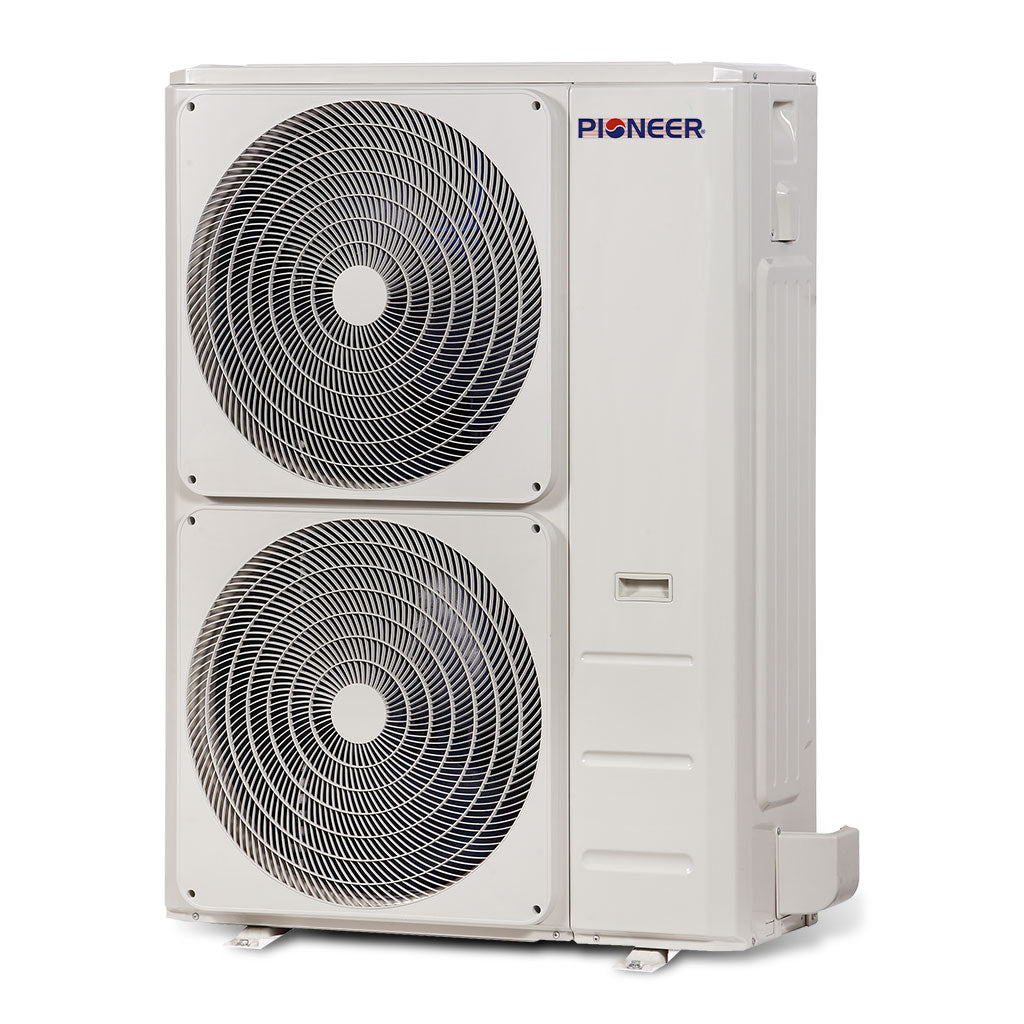

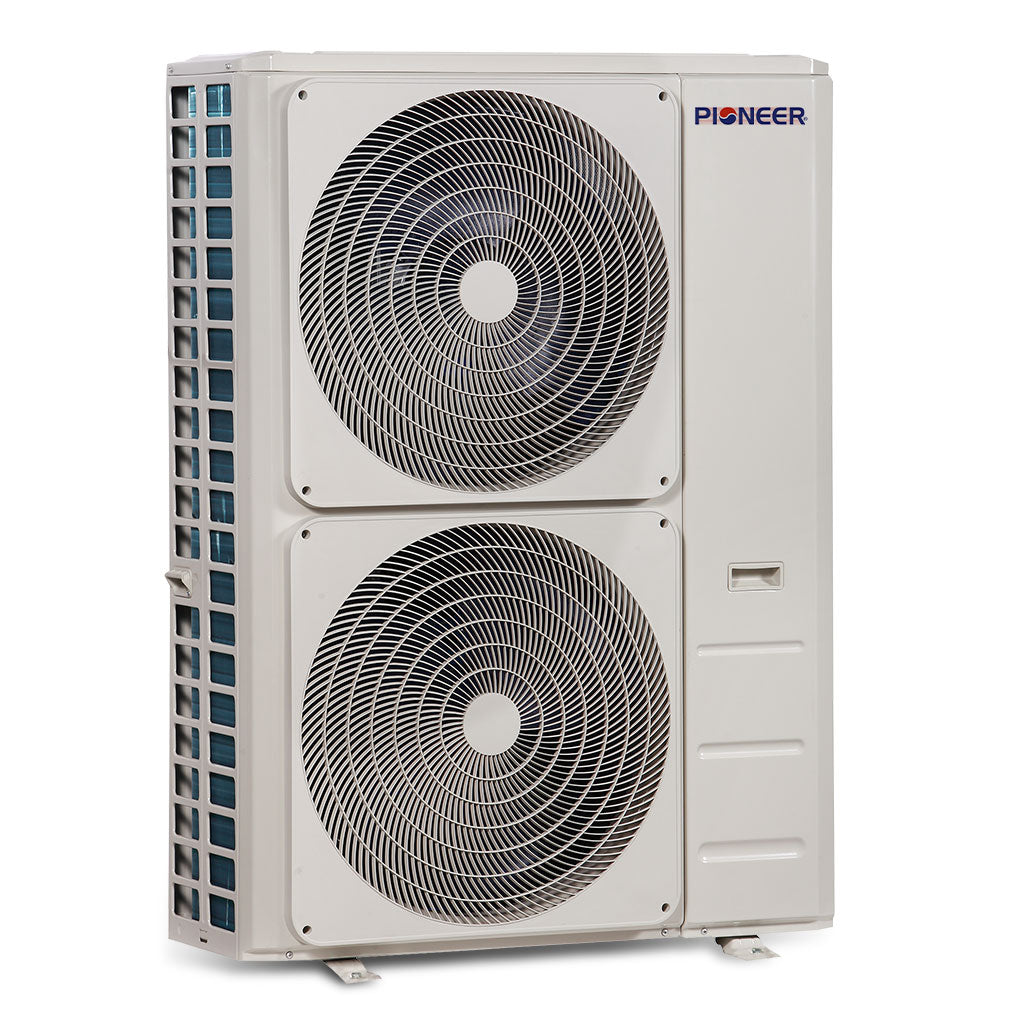

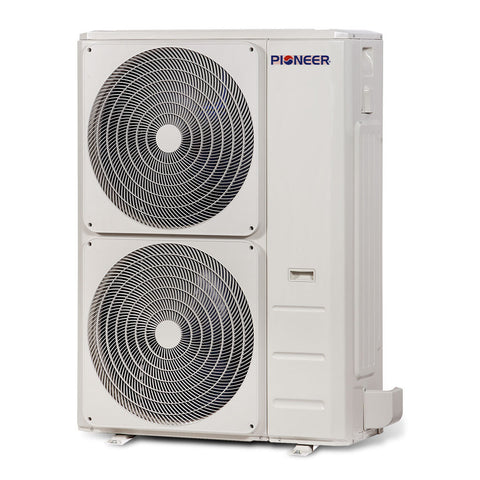

Outdoor Unit
-
Part Number: YN048GMSI20RUG
-
Breaker Needed: 40A (double-pole)
-
Sound Level: 64 dB(A)
-
Net Dimensions (WDH): 37"-1/2 x 16"-3/8 x 52"-1/2 Inches
-
Carton Dimensions (WDH): 43"-1/8 x 19"-1/2 x 57"-1/2 Inches
-
Net / Gross Weight: 208.8 / 239.8 lbs
