Description

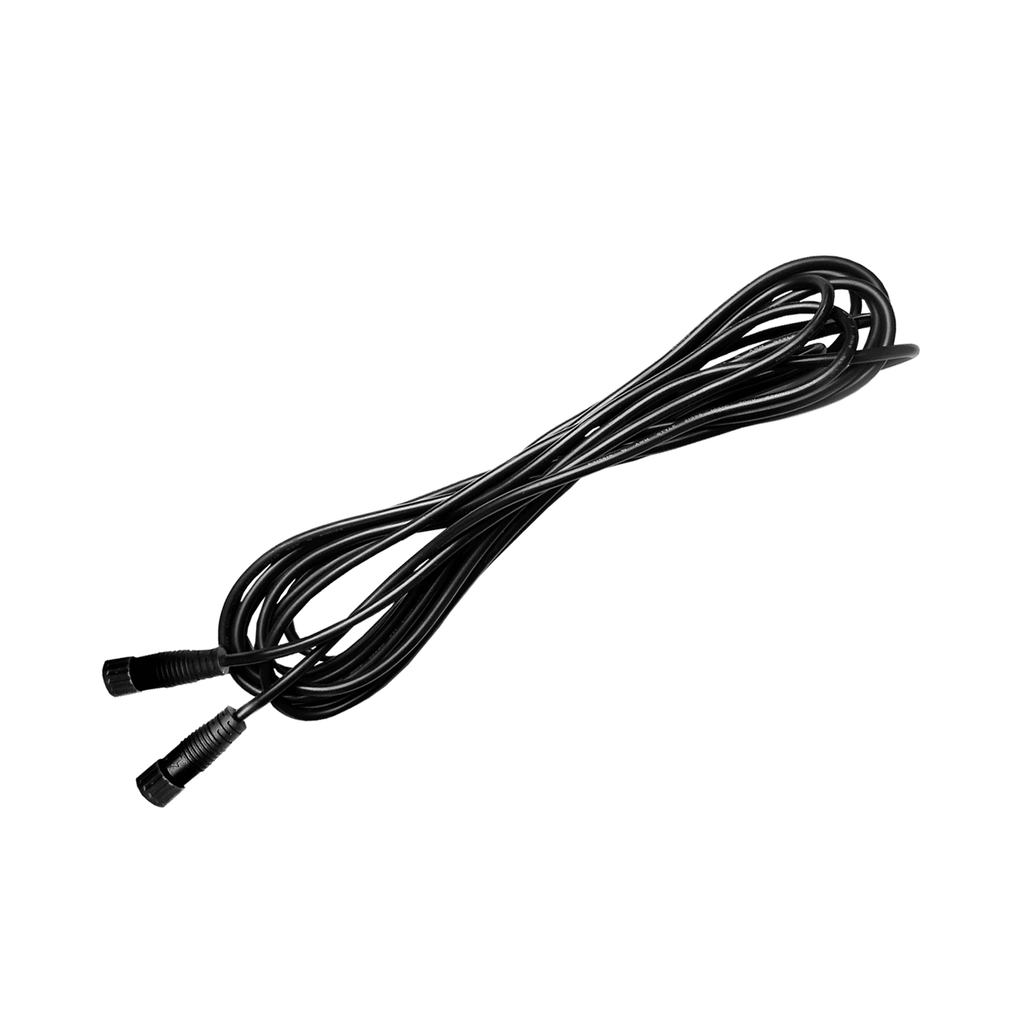

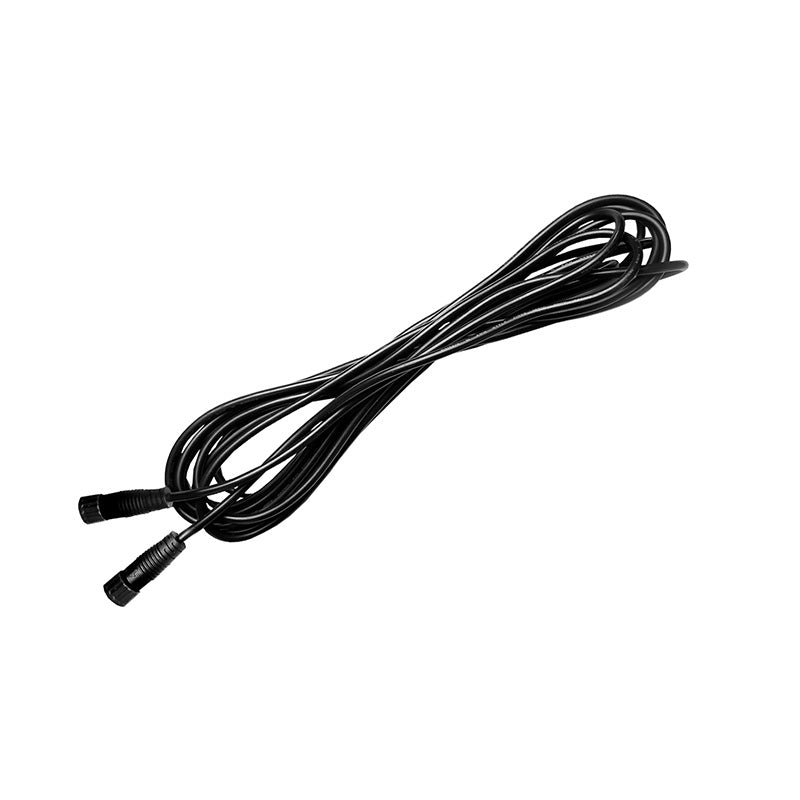

This 5 m Control Link Cable is designed to daisy-chain PhotonTek controllable LED fixtures, providing a stable, precise connection without interference.
Connect the M12 self-locking male plug to the LED structure's Signal Out output, and connect the M12 self-locking female plug to the next fixture's Signal In input.
Specifications
- Product code: PTEKM0018.
- Wire gauge: UL 2464 3x22AWG, 80 degrees Celsius, 300 V, VW-1.
- Withstand-voltage test: 800 VAC between the conductor and insulator, 2 mA, for 60 s, with no breakdown or leakage current.
- Temperature resistance: 80 degrees Celsius.
- Working temperature: -20 degrees Celsius to 105 degrees Celsius.
- Storage temperature: -25 degrees Celsius to 105 degrees Celsius.
- Ingress protection: IP65.
- Compliance: RoHS.
Kit Contents
- 1 x 5 m daisy-chain control link cable.
