Description

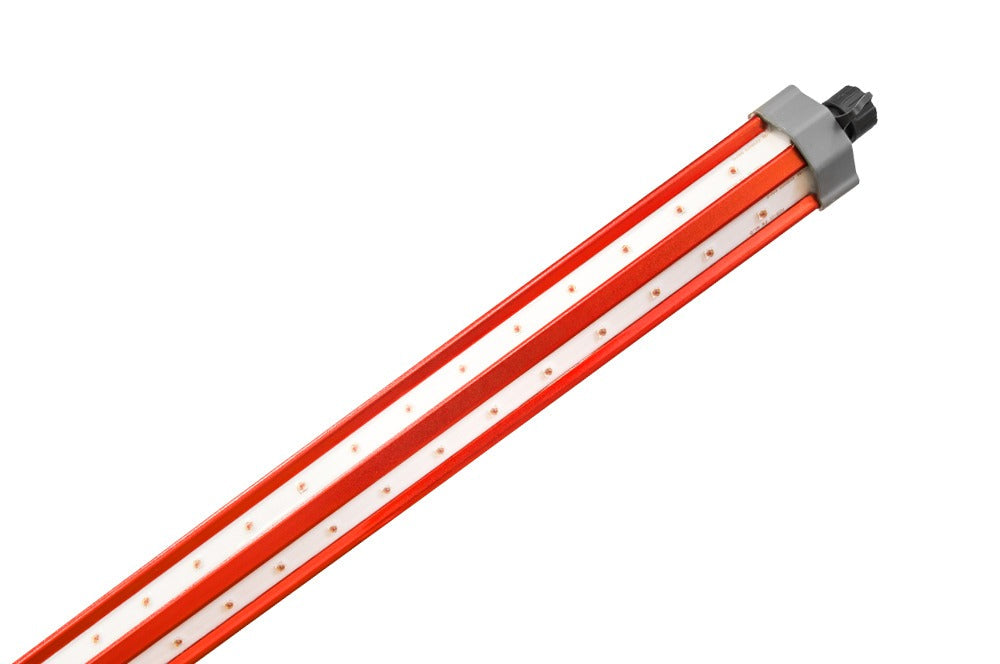

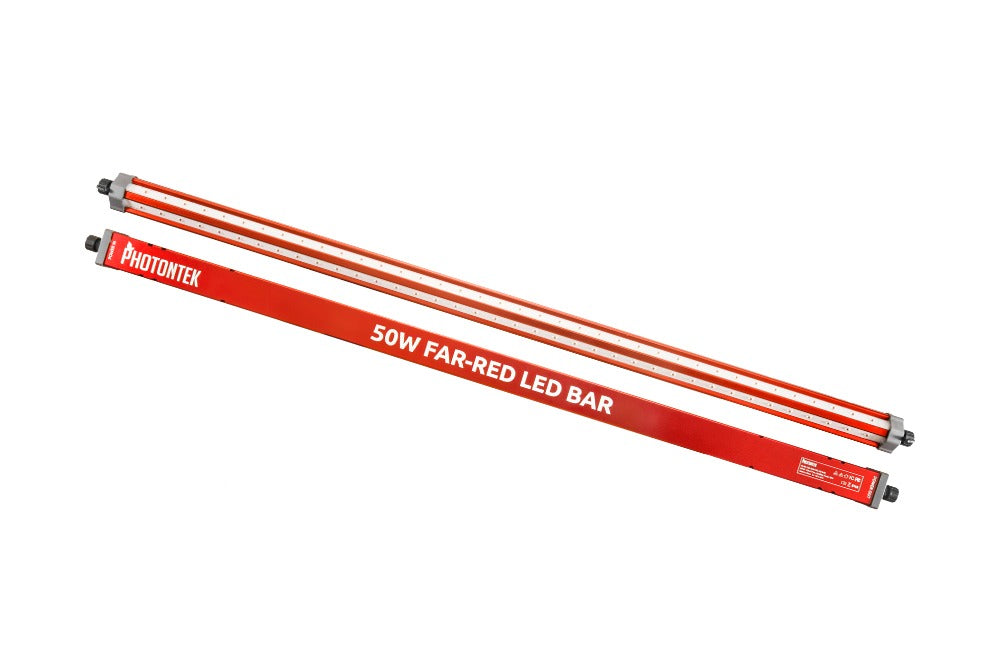

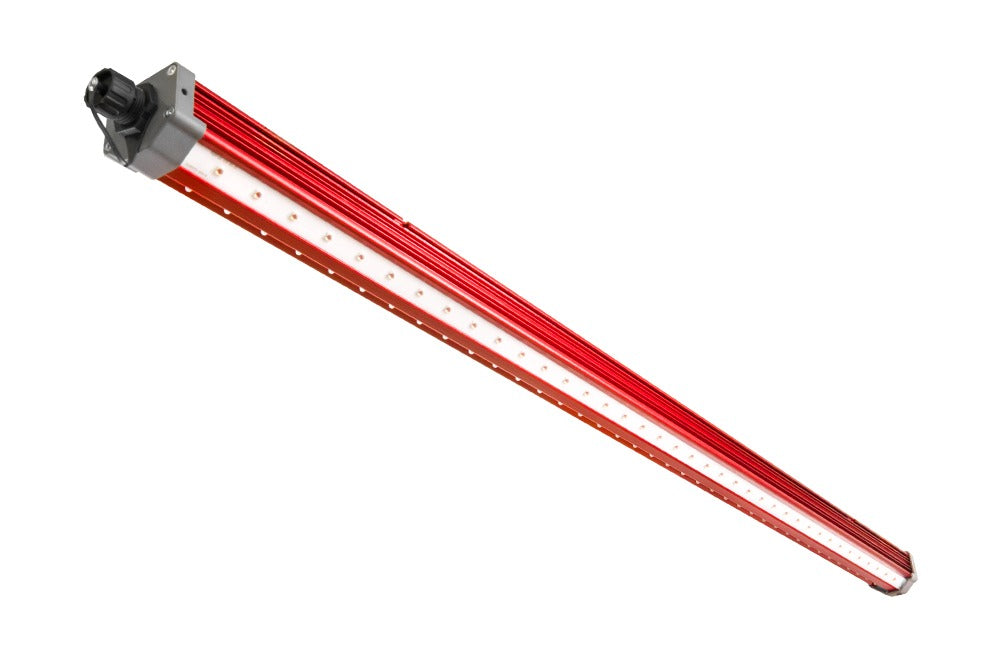

The PHOTONTEK 50W FAR-RED LED BAR is a supplemental addition to your crop, specifically created to extend the X / XT series full-spectrum range from [400-700] nm to [400-750] nm.
The PHOTONTEK 50W FAR-RED LED BAR is designed to fit directly into the X / XT fixtures. Mixing its far-red photons with the full spectrum produced by the X / XT range secures a 10-20% ratio.
Items sold separately
- [PTEKM0025] P-TEK FR/UV LED Bar Power Cable, 120 V, 13 ft. (4 m).
- [PTEKM0026] P-TEK FR/UV LED Bar Daisy Chain Cable, 5 ft. (1.5 m).
- [PTEKM0030] P-TEK FR/UV LED Bar Power Cable, 240 V, 13 ft. (4 m).
Specifications
- Product code: PTEKLED039.
- PPF [400-750] nm: 155 umol/s.
- Efficacy [400-750] nm: 3.1 umol/J.
- Input voltage: 120-277 V AC, 50-60 Hz.
- Driver: Integrated, 50 W, 120-277 V AC, 50-60 Hz.
- Input power: 50 W (+/- 5%).
- Waterproof/dustproof rating: IP65.
- Life span: L90 greater than 45000 hours.
- Light distribution: 140 degrees.
- Light source: Far-red LED diodes.
- Dimensions: 39.4" x 1.9" x 1.7" (1000 x 48 x 42 mm).
- Weight: 2.7 lbs (1.2 kg).
- Thermal management: Passive heat sink.
- Power factor: Greater than 0.90.
- Maximum ambient temperature: 104 degrees F (40 degrees C).
- Working temperature: 14 degrees F to 104 degrees F (-10 degrees C to 40 degrees C).
- Working humidity: 20% to 80%, non-condensing.
- Dimmable: No.
- Daisy-chain capability: Yes, maximum 18 pieces.
