PHOTOBIO TX2 is the latest lighting innovation from PHOTOBIO, incorporating advanced technology to maximize energy efficiency and cost-effectiveness and help growers achieve their production potential. The TX2 Top Light delivers 800 watts of power with a new S5 spectrum, combining advanced technology with practical functionality.
Designed for greenhouse and single-level applications, PHOTOBIO TX2 has a thin linear profile that minimizes sun interference in greenhouses while providing better canopy access indoors. Its wide 208-480V AC operating range offers flexibility for commercial applications. The new heatsink design provides efficient thermal management to support 38% more PPF output, delivering deep canopy penetration and even light distribution for optimized growth.
TX2 Improvements Versus the Previous Generation
- New S5 spectrum: balanced full spectrum with enhanced red, an R:B ratio of 2.6:1, and a B:G ratio of 1:1.
- New proprietary Origami-style Folded Fins (POFF) aluminum heatsink.
- 38% increased light output.
- 18% improvement in fixture efficacy.
- Input voltage from 208V to 480V AC with automatic recognition.
Features Inherited from PHOTOBIO TX
- Best-in-class proprietary optical encapsulation process for the light engine.
- Standard 0-10V dimming, compatible with all PHOTOBIO dimming interfaces and major controllers.
- ETL Listed and DLC Hort QPL Listed; eligible for energy rebates.
- Heavy-duty, premium-quality construction with an efficient architecture-grade aluminum heatsink.
- IP65 rating for dust and water protection.
- 5-year warranty backed by the Hydrofarm team.
Additional Features
- 2400 umol/s Photosynthetic Photon Flux (400-700nm).
- 3.0 umol/J efficacy @ 277V.
- Thin linear top light design minimizes sun interference in greenhouses while providing better canopy access indoors.
- Proprietary Origami-style aluminum heatsink.
- Precise photon-output control when paired with an Autopilot PX series controller (PX2 and above).

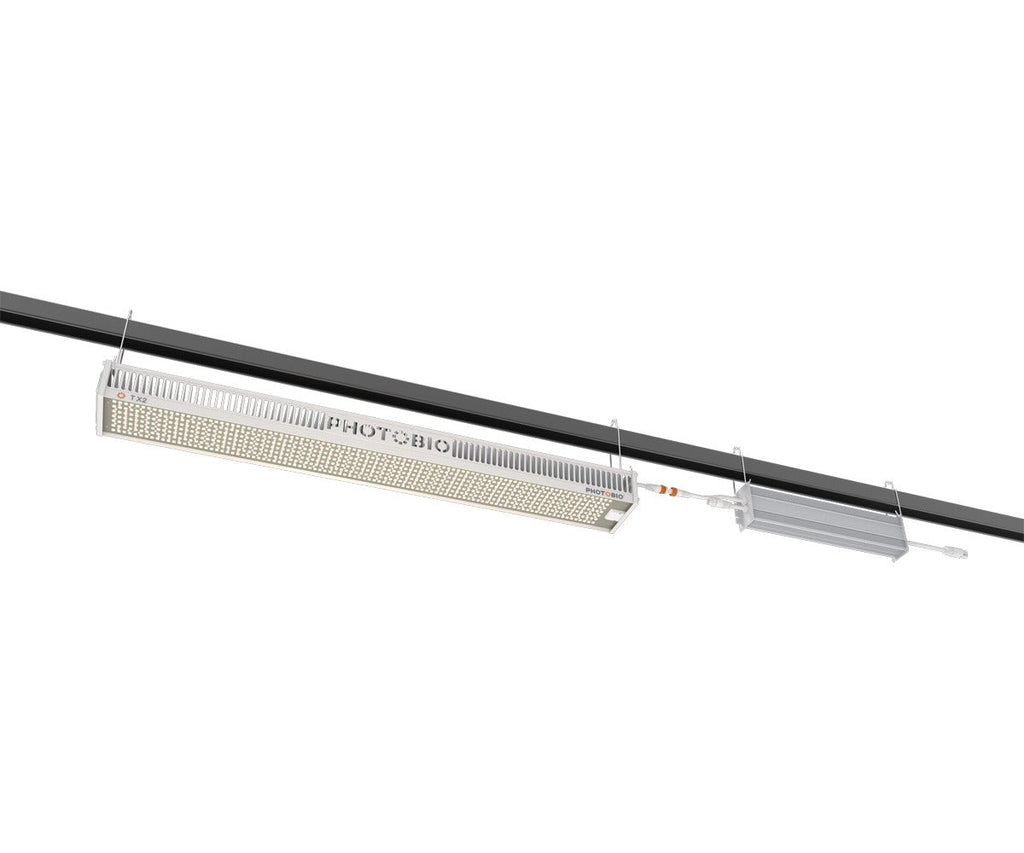

- The driver can be mounted remotely.
- Fully compatible with the optional PHOTOBIO AC Power Distribution Tree cabling system, which enables multiple fixtures to be interconnected on a single power drop, reducing electrical infrastructure costs.*
- Fully compatible with the optional PHOTOBIO DC Communications Tree cabling system, which enables multiple fixtures to be interconnected on a centralized controller.
Operating Warning: PHOTOBIO TX2 WILL NOT OPERATE UNDER RESIDENTIAL 120V POWER INPUT VOLTAGE.
*Consultation with a licensed electrician working with an electrical engineer, following applicable electrical codes and inspections, is recommended.
Specifications
- Average Rated Life Hours: 50000
- Ballast Type: Photobio 200-480V
- Color Temp: 6000k-6500K
- ETL_Registration: YES
- Frequency: 50/60
- Rated Wattage: 800

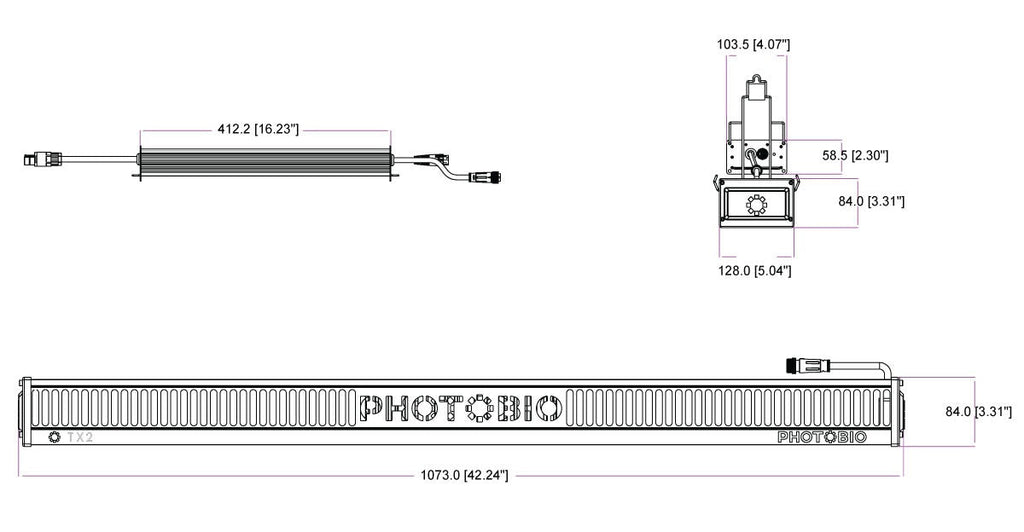

- Width (Unboxed): 42.2
- Length (Unboxed): 5
- Height (Unboxed): 3.3
- Voltage: 200-480
