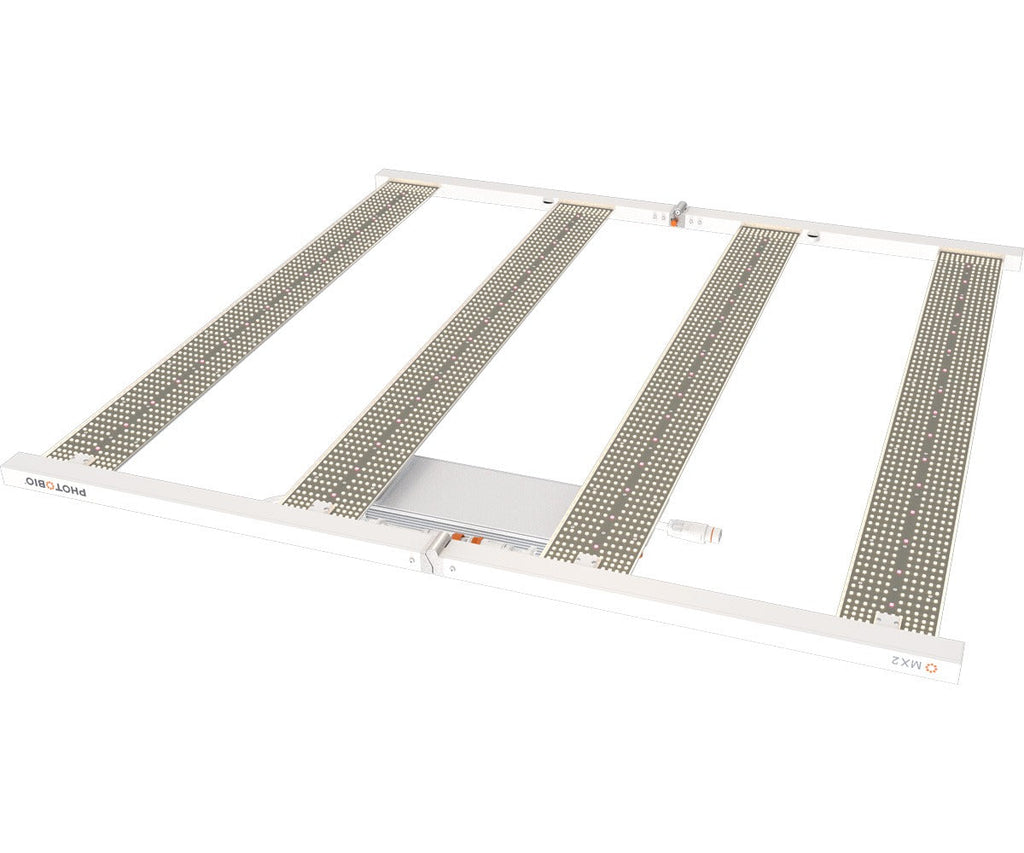

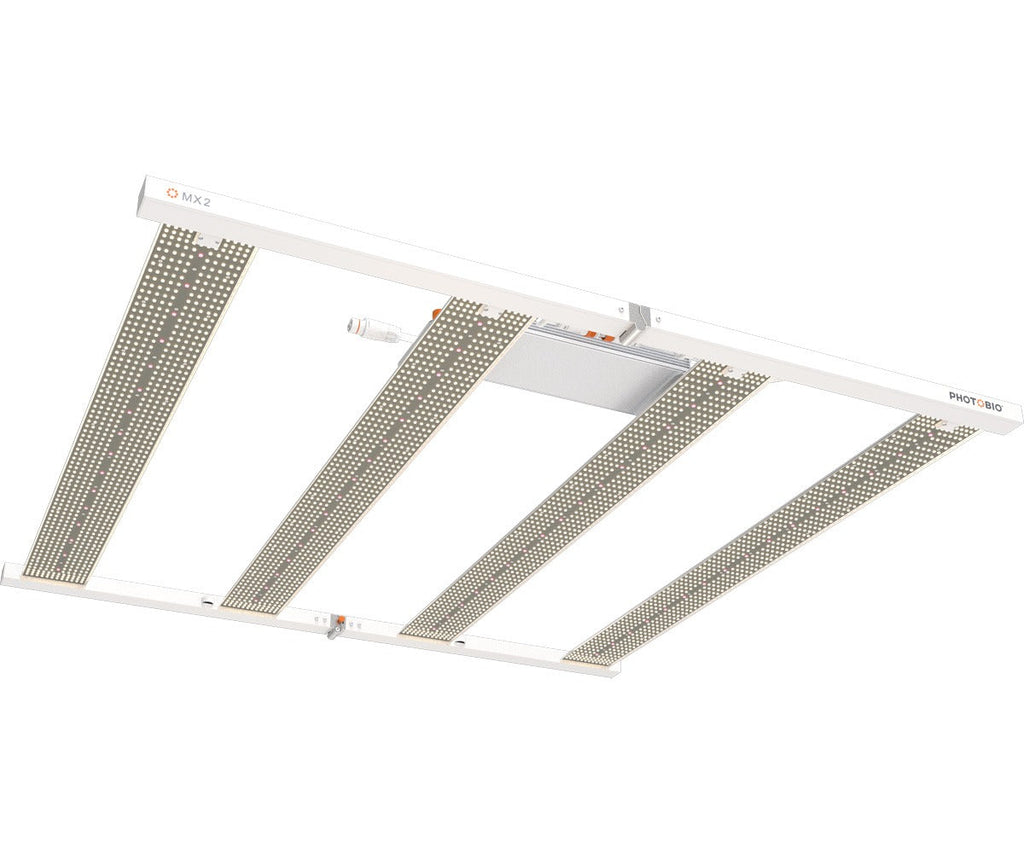

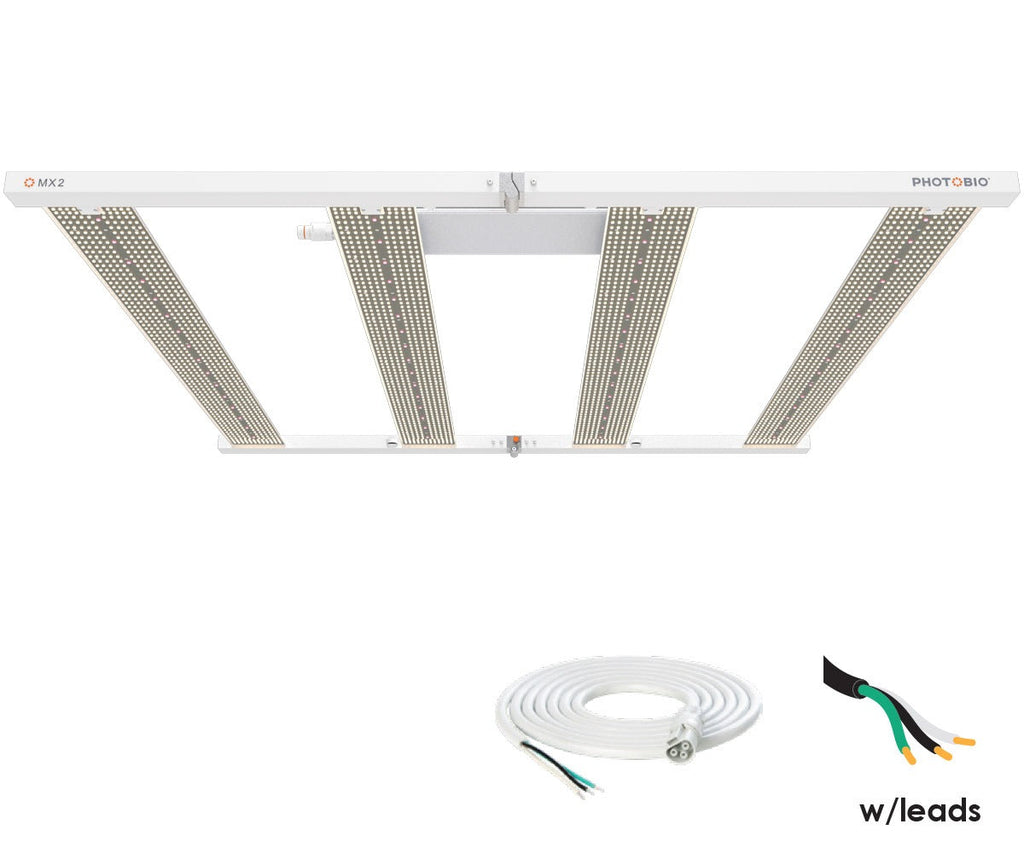

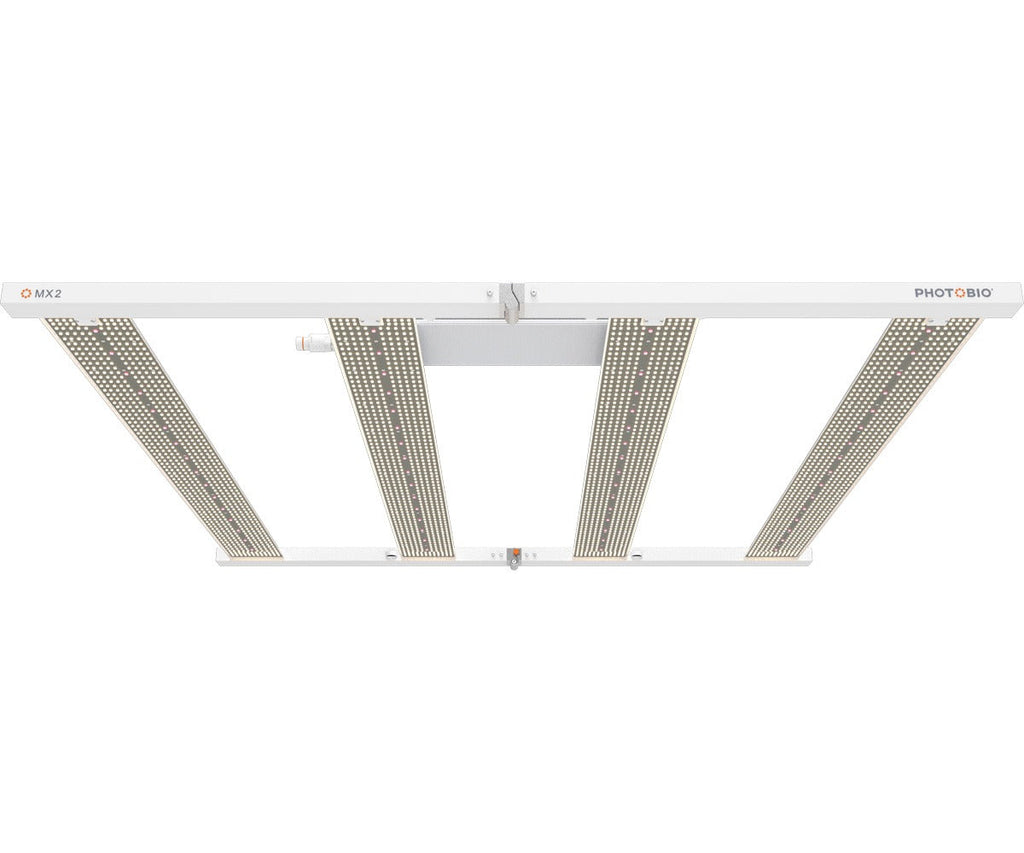

PHOTOBIO MX2 LED 680W 100-277V S4 w/ iLOC (10' Leads Cord)
SKU: PTBZ1000768S47
Description
Product Details: 10% more light output
10% increase in fixture efficacy
47% weight reduction
Improved locking hinges for easy installation and longevity
Everything you loved about PHOTOBIO MX is inherited to MX2:
Everything you loved about PHOTOBIO MX is inherited to MX2: Best-in-class proprietary optical encapsulation process for the LED coating.

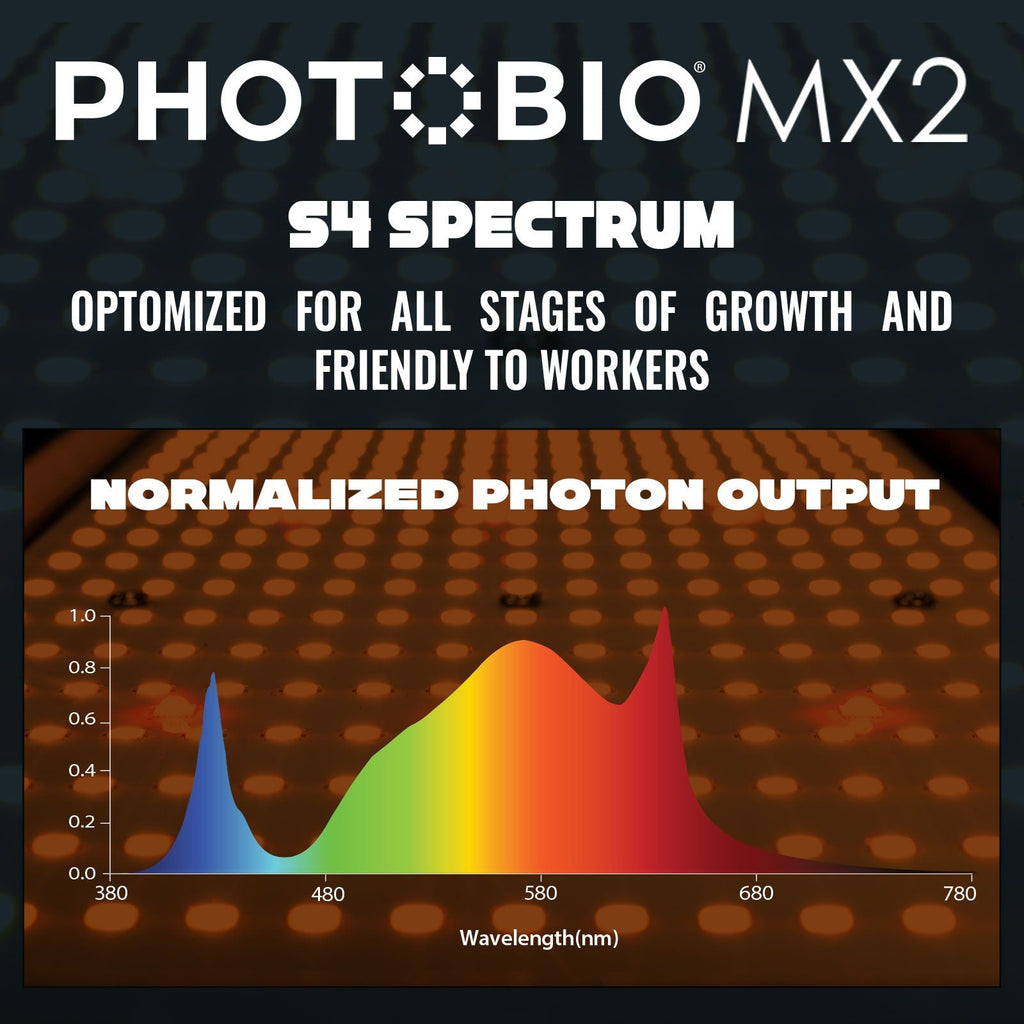

S4 Spectrum: Full spectrum optimized for all stages of growth and friendly to workers.
iLOC on-board dimming: Stay in control without an external controller.
Standard 0-10v dimming: compatible with all PHOTOBIO dimming interfaces and major controllers.
ETL Listed and DLC Hort QPL Listed: eligible for energy rebates

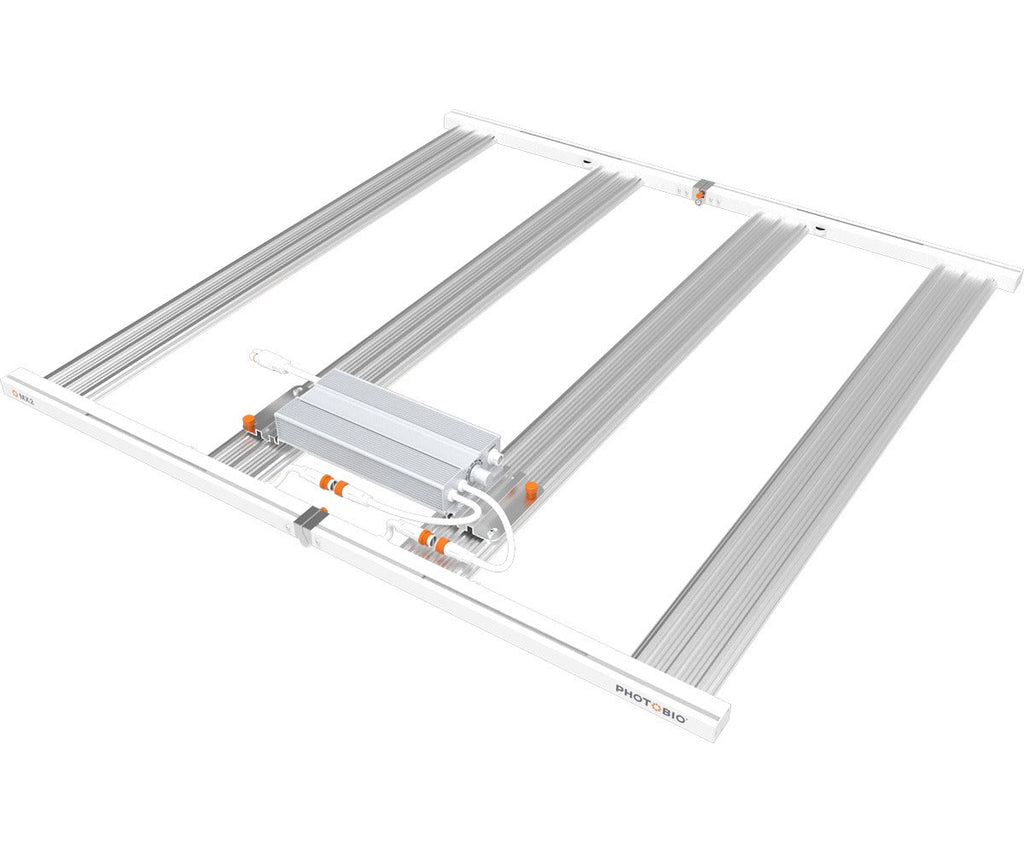

Heavy duty and premium quality: Efficient architecture-grade aluminum heatsink, powder coated finish

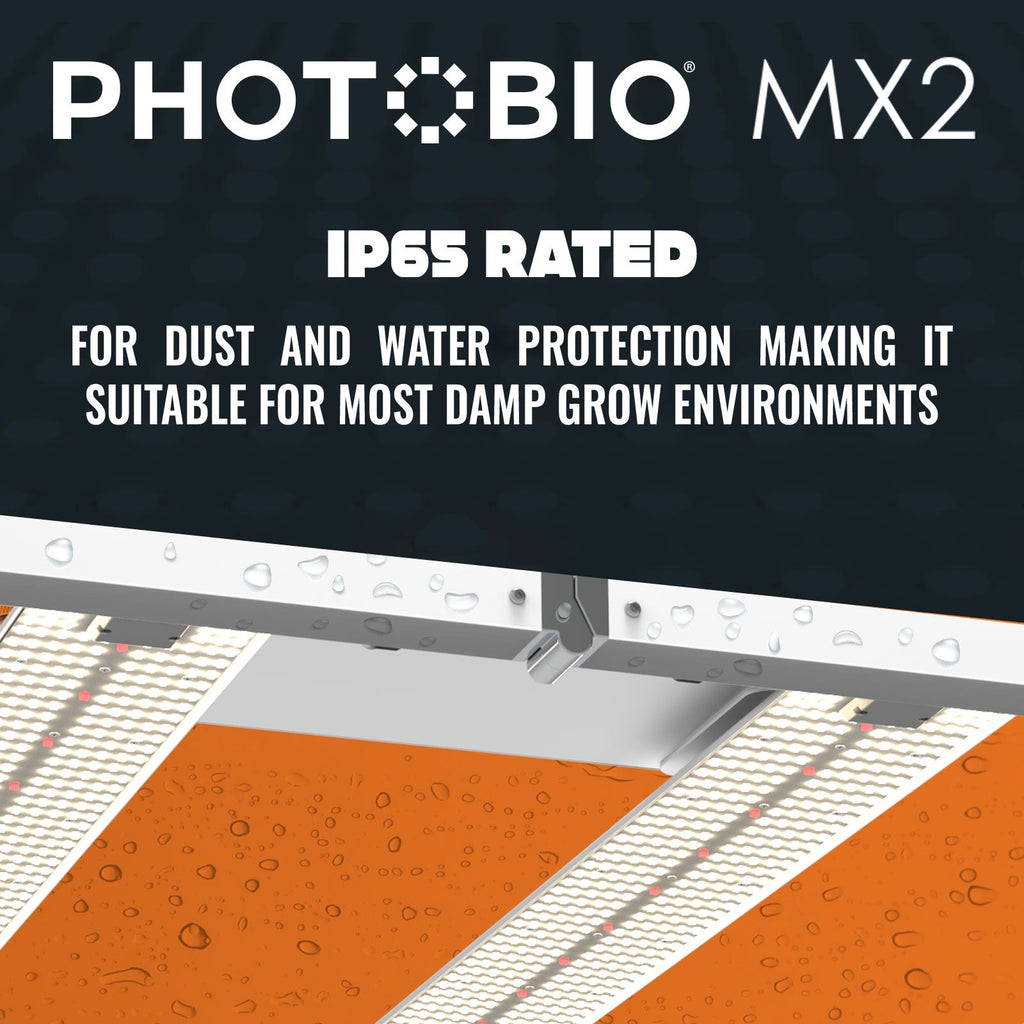

IP65 Rating for dust and water protection
5-year Warranty backed by the Hydrofarm team.
FEATURES:
FEATURES: 1,906 umol/s Photon Flux (PBAR 280-800 nm)
1,870 umol/s Photon Flux (PAR 400-700 nm)
2.8 umol/J Efficacy @ 277V
680W Rated Input Power
Auto adjusting 100-277V driver input range

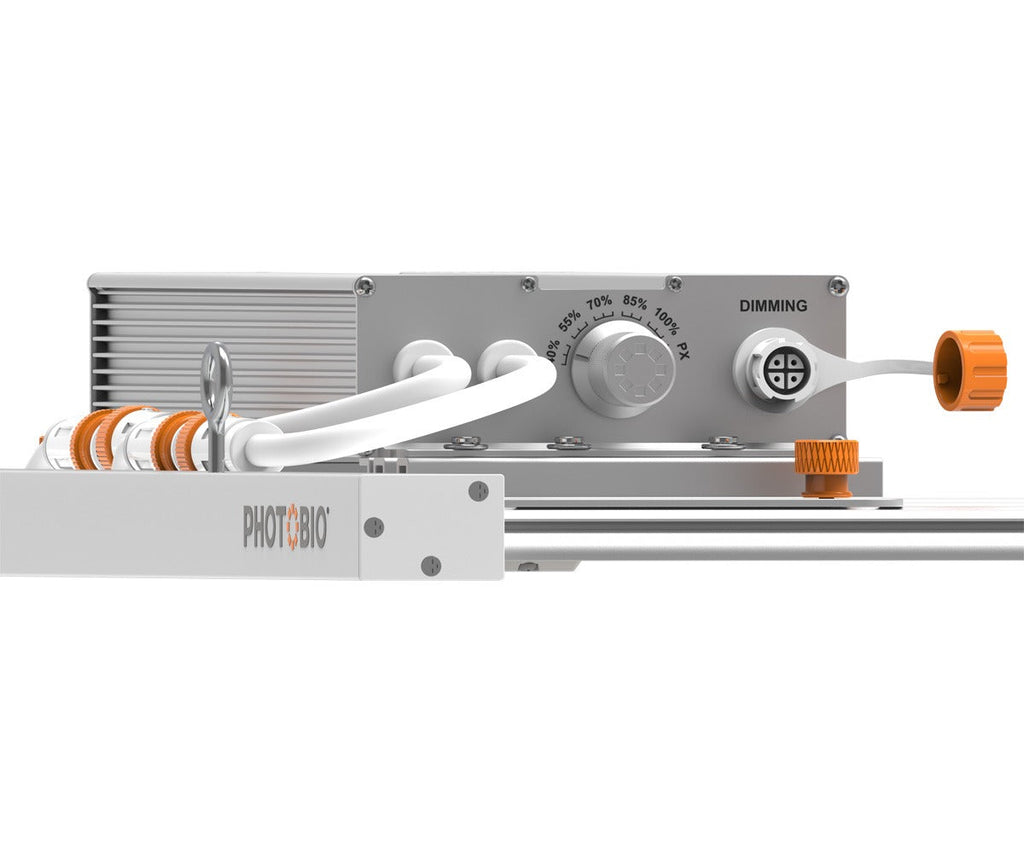

iLOC Integrated Light Output Control allows manual adjustment of light output
Dim Settings are 40%-55%-70%-85%-100%-PX Control
Precisely control photon output when paired with Autopilot PX series controller (PX2 and above)

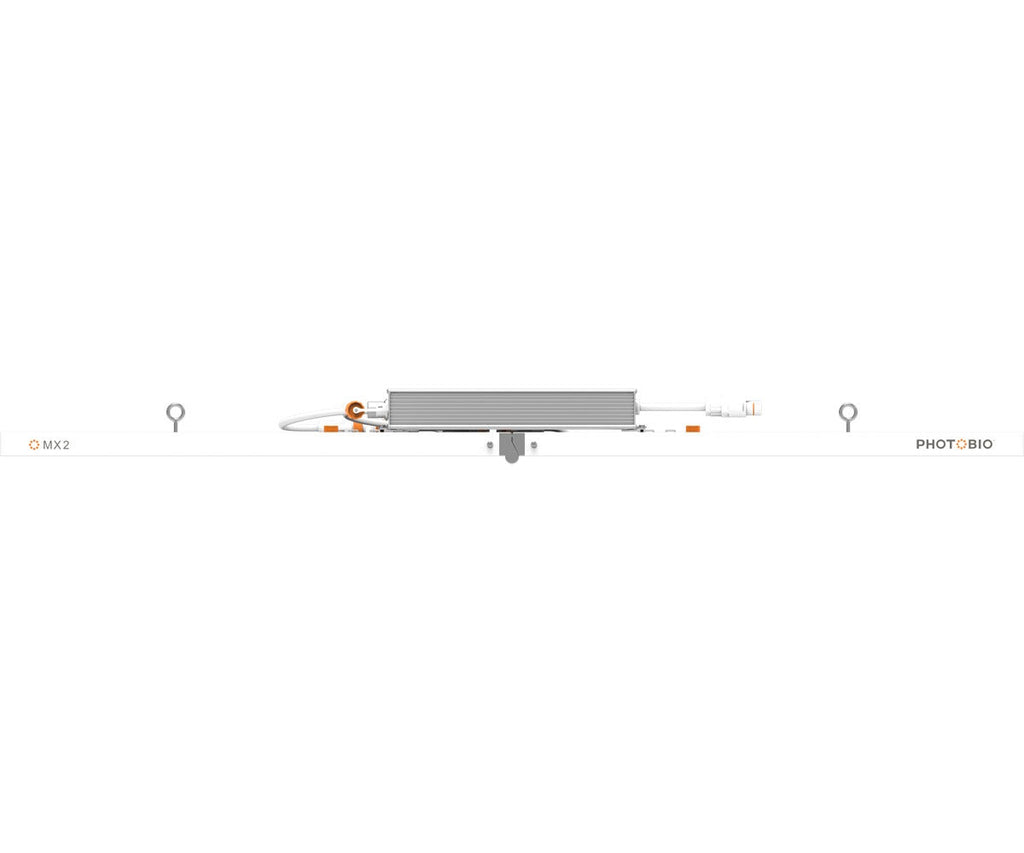

Slim design maximizes vertical growing space
Robust commercial design keeps LED's running cool Specifications
Average Rated Life Hours: 50000
CE_Registration: Yes
Color Temp: 3500-4000
ETL_Registration: YES
Frequency: 50/60
Rated Wattage: 680
ROHS_Registration: Yes
Weight (Unboxed): 24.7
Width (Unboxed): 43
Length (Unboxed): 44
Height (Unboxed): 3.1
Voltage: 120-277
Wire Gauge (AWG): 16
Ballast Type: Photobio 120-277V Data Sheets
Download the Cut Sheet PHOTOBIO MX2: here
Download the PHOTOBIO MX2 PPFD Map: here
Download the instructions: here
Kit Contents
PHOTO-LOC DC signal cable
Fully compatible with optional PHOTOBIO AC Power Distribution Tree cabling system - enables interconnection of multiple fixtures on a single power drop - reducing electrical infrastructure costs*
Fully compatible with optional PHOTOBIO DC Communications Tree cabling system - enables interconnection of multiple fixtures on a centralized controller
Note: Please select the right power cord configuration before you order. Consult your licensed professionals for local code and standard compliance.
