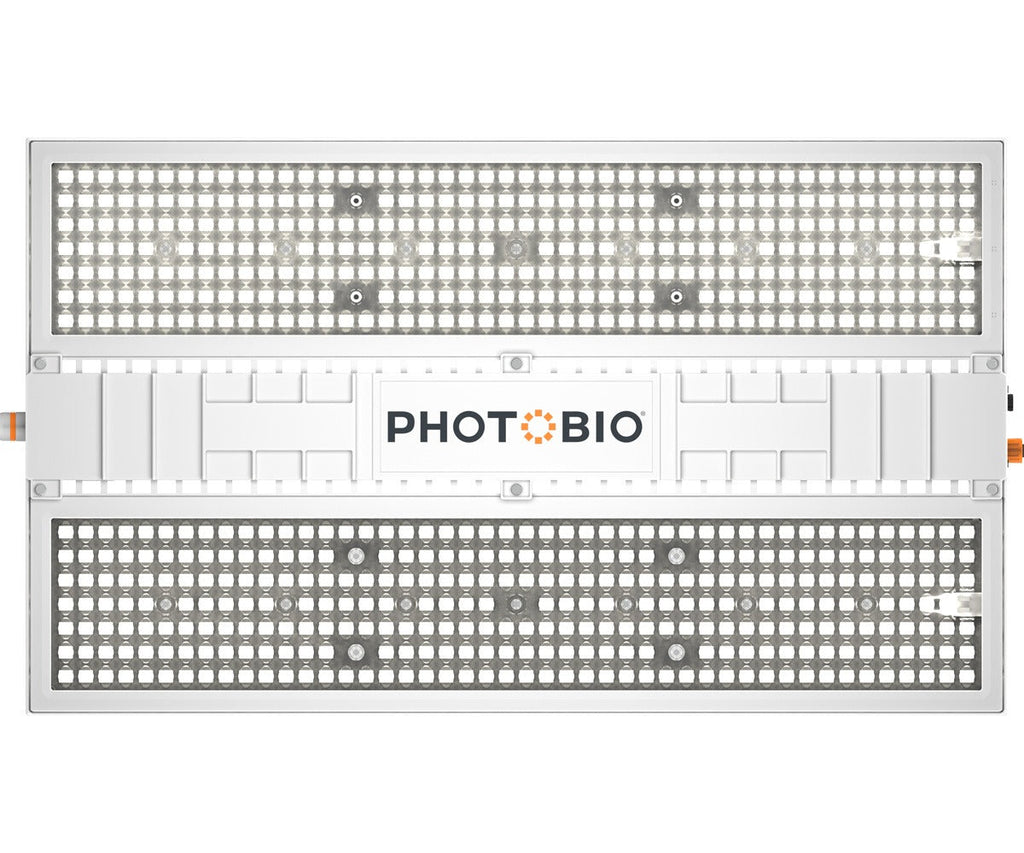

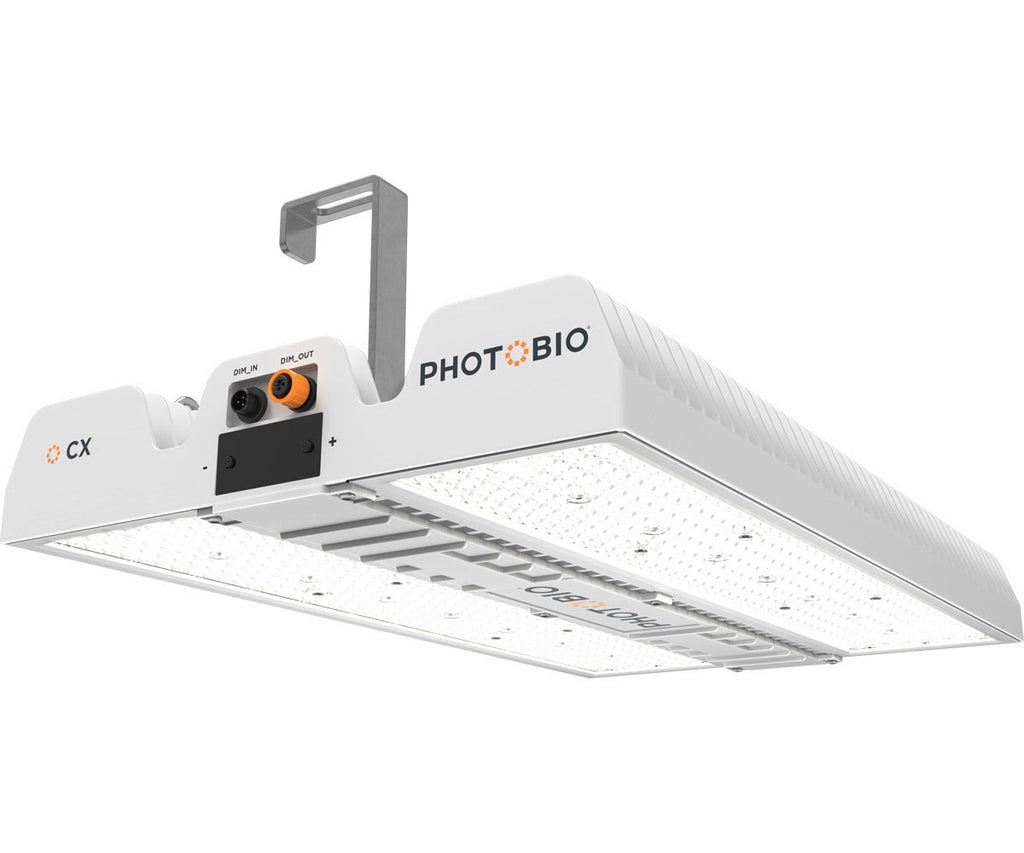

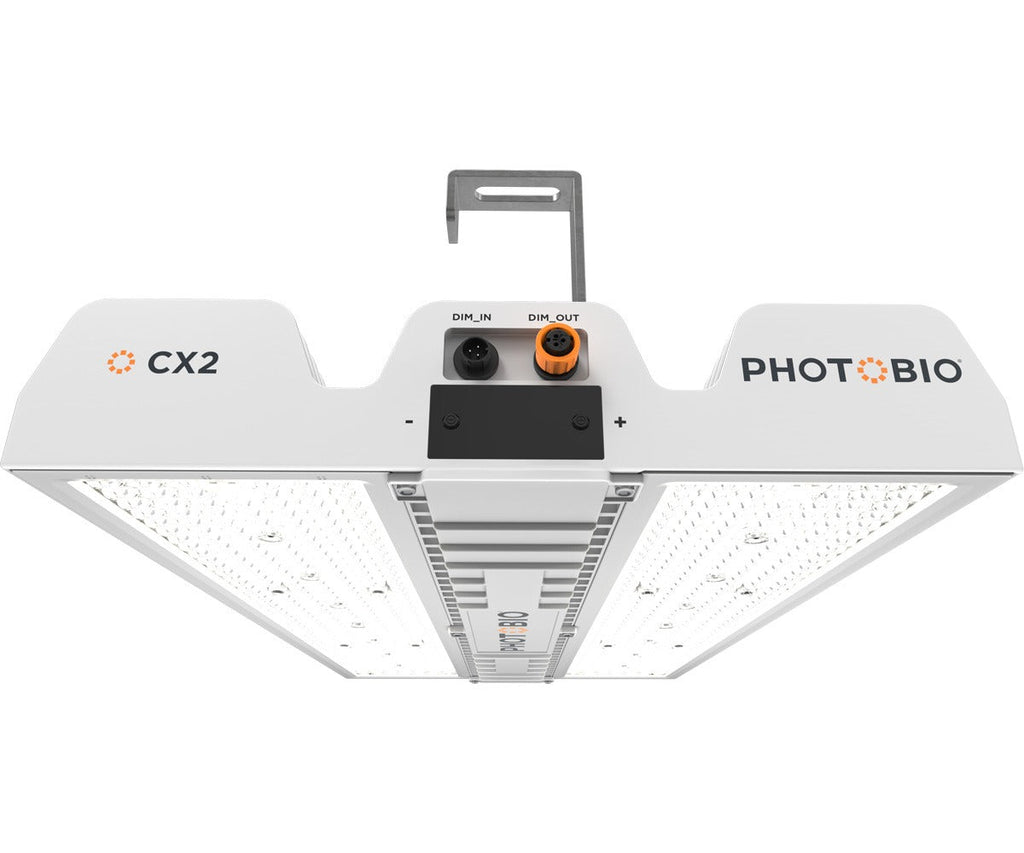

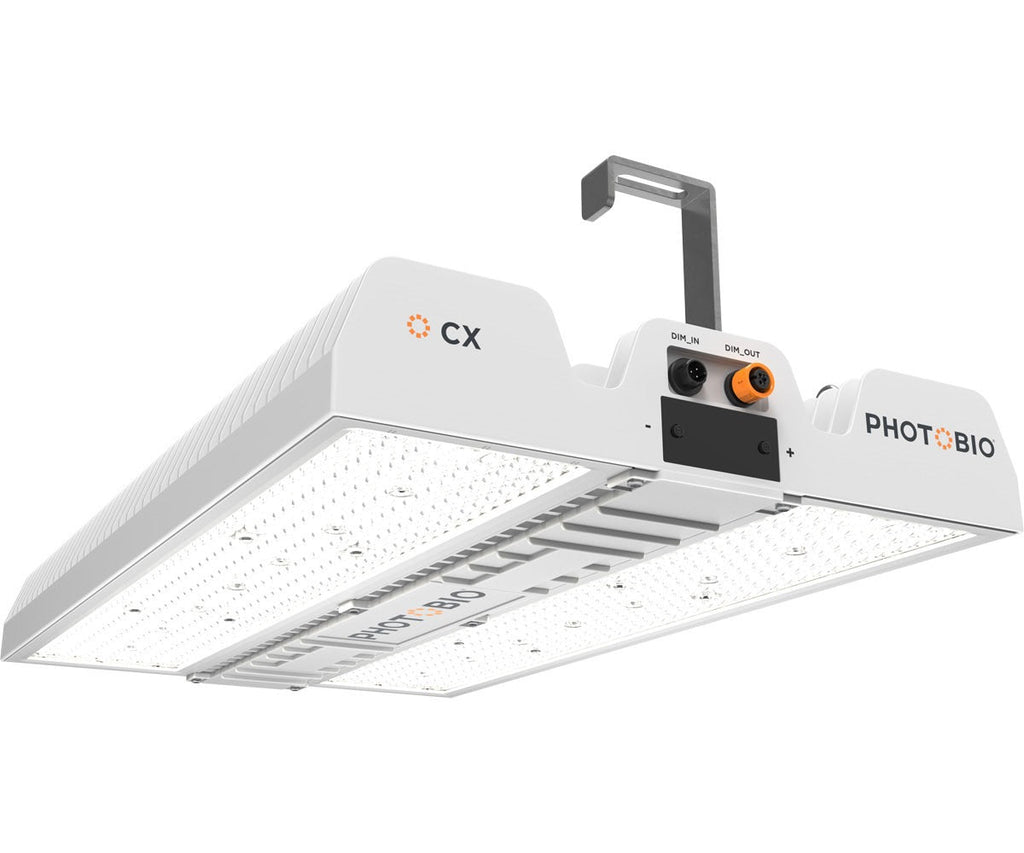

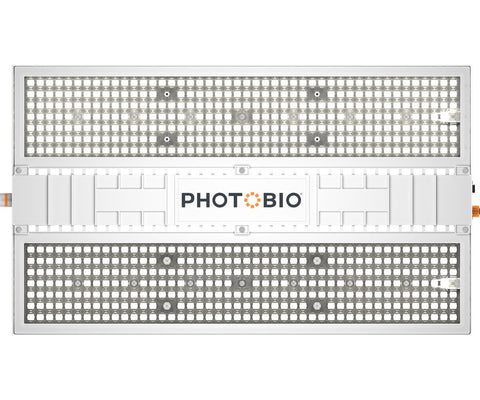

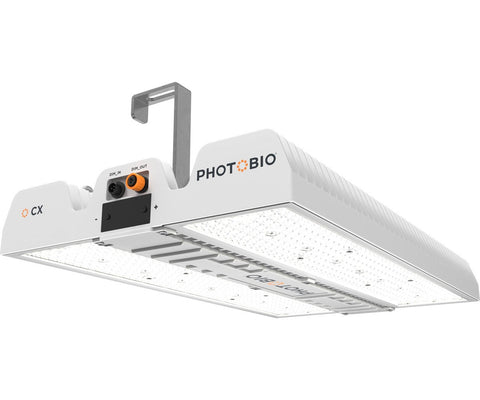

PHOTOBIO CX 2125 High Voltage LED 850W 347-480V S4 w/iLOC (10' Leads
SKU: PTB8854LS47
Description
Product Details: 347- 480v Input Voltage
Proven S4 spectrum
Secondary Optics for better light utilization and diode protection.
DLC Hort Listed for rebate eligibility
2125 umol/s Photon Flux @ 347V
2.5 umol/J efficacy
850W high power LED with slim vertical profile (24.1L x 14.2W x 2.6H inches) and 22.7 lbs
Superior canopy penetration by utilizing secondary optics
Osram/Seoul diodes produce the S4 (Full) Spectrum
1:1 direct 1000W DE replacement utilizing similar footprint
iLOC Integrated Light Output Control with digital screen for monitoring output levels
Precisely control photon output when paired with Autopilot PX series controller (PX2 and above)

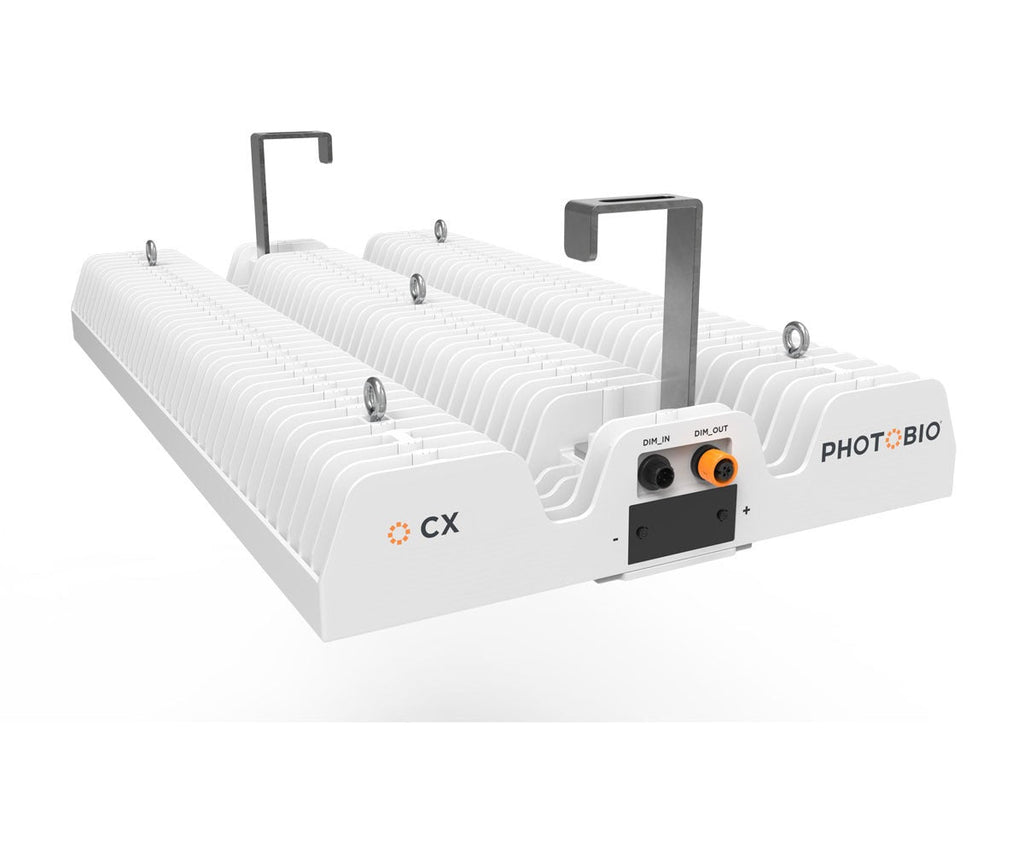

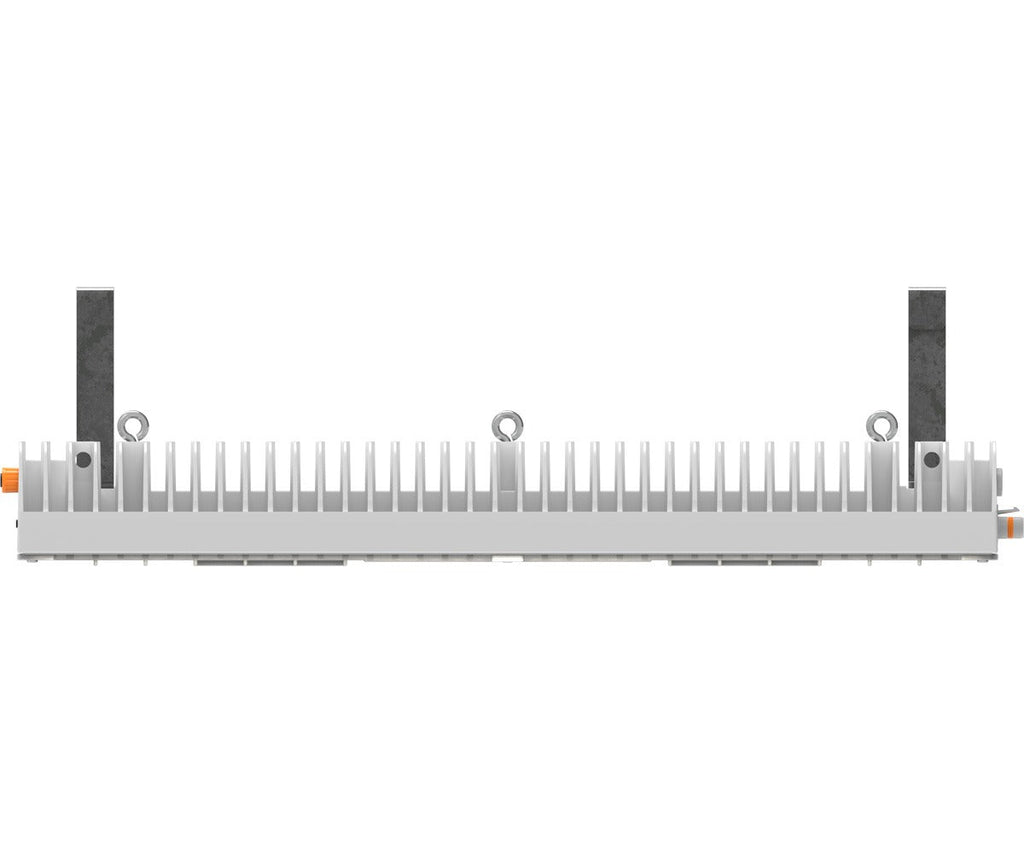

Passive heat dissipating cooling fins Specifications
FCC_Registration: Yes
Frequency: 50/60
Rated Wattage: 850
Weight (Unboxed): 26.46
Width (Unboxed): 24.11
Length (Unboxed): 14.21
Height (Unboxed): 3.05
Voltage: 347-480
CSA_Registration: Yes Data Sheets
Download the user manual: here
Kit Contents

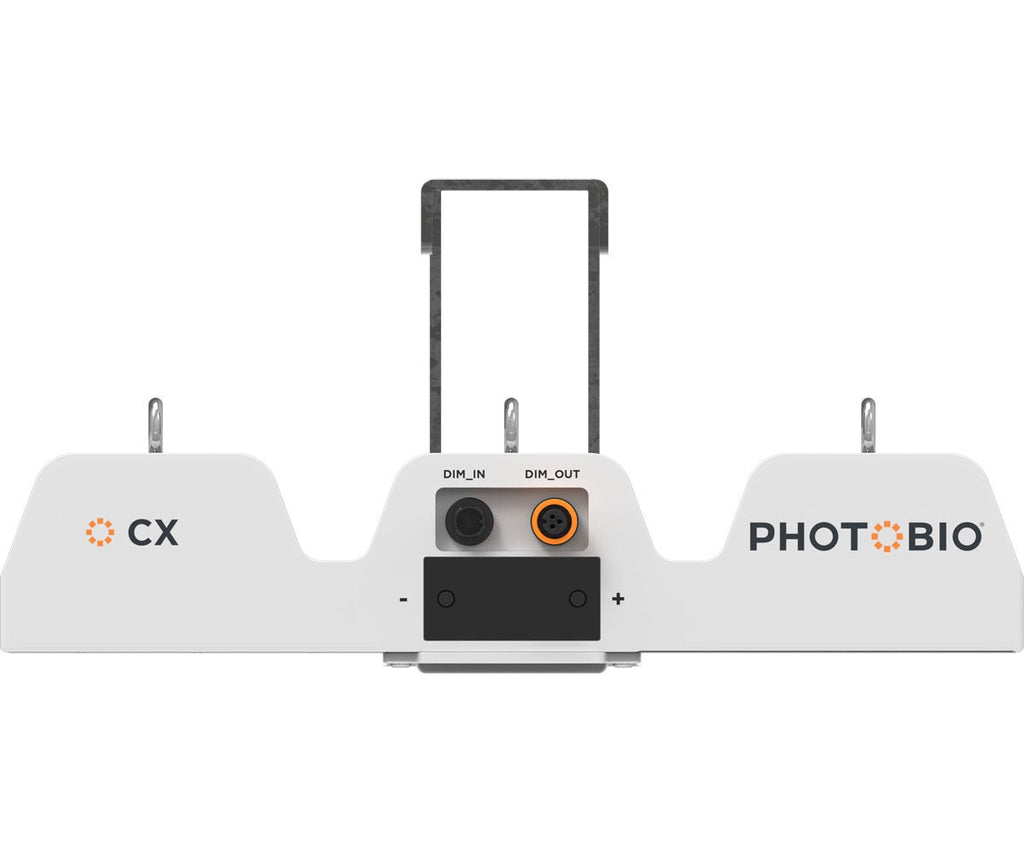

10' PHOTO-LOC 0-10V control cable
C clamps included
5 year warranty
IP66 rated protection against water and dust
Fully compatible with optional PHOTOBIO AC Power Distribution Tree cabling system - enables interconnection of multiple fixtures on a single power drop - reducing electrical infrastructure costs*
