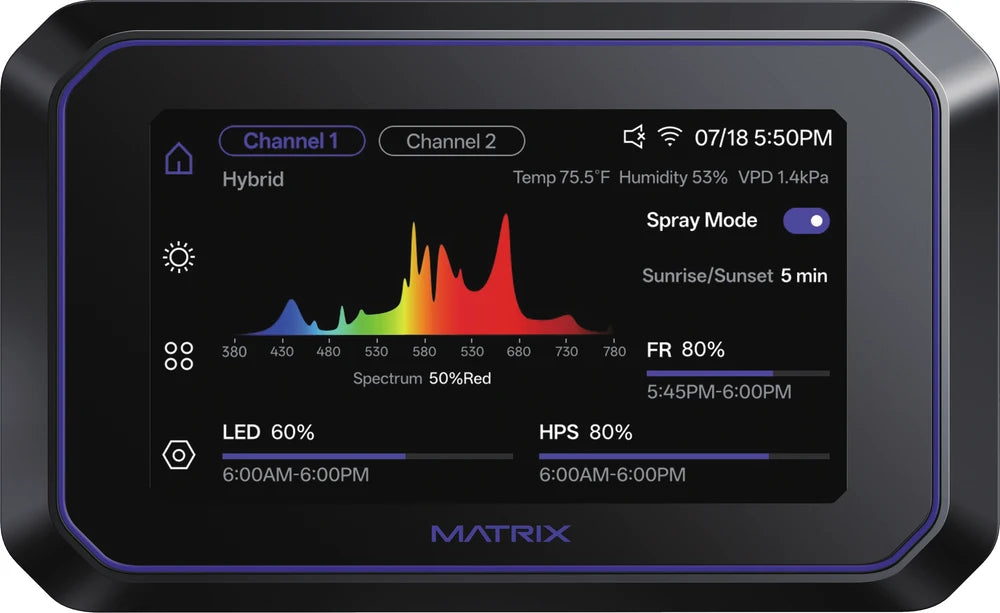

The Matrix MC5 is a dual-channel smart lighting controller designed for large-scale indoor and outdoor cultivation. It controls both LED and HID fixtures, while providing independent lighting control, spectrum tuning, scheduling, and live environmental monitoring for temperature, humidity, VPD, and CO₂. The standalone touchscreen requires no app, cloud connection, or subscription.
• Control Channels: 2 independent channels or Follow mode
• Compatible Fixtures: Matrix LED & HID — VEGA, DE HPS, Hybrid, M-series, M Dyna
• Fixtures per Channel: Up to 100 via RS-485 / 80 via 0–10V
• Maximum Capacity: Up to approximately 200 fixtures across 2 channels
• Connection: RJ12 daisy-chain — RS-485 or 0–10V
• Lighting Control: 25–100%
• Environmental Monitoring: Temperature, Humidity, VPD, CO₂*
• Crop Protection: Auto-Dim & Auto-Shutdown for over-temperature conditions
• Spectrum Control: Stage-based spectrum tuning with independent UV & Far Red control
• Automation: Manual & scheduled cycles, Sunrise/Sunset ramp, EOD Far Red, Spray Mode
• Control Interface: Full-color touchscreen
• Software: Standalone — no app, cloud, or subscription required
• Adapter Input: 100–240VAC, 50/60Hz, 0.2A
• Controller Input: 12V 1A DC
• Operating Environment: 0–50°C (32–122°F), humidity ≤80%
• Dimensions: 5.43 × 3.33 × 1.04 in (138 × 86.5 × 26.5 mm)
• Weight: 0.48 lb
• Installation: Wall mount — magnetic iron plate or expansion screws
• Warranty: 3 years
• SKU: 10-010701-068
• Included: Controller, 7m temperature/humidity sensor, 12V adapter, iron plate + screws, RJ11 cables, M12-to-RJ11 cable, ties
* CO₂ sensor is sold separately.
Key Advantage: Provides centralized two-channel lighting, spectrum, scheduling, and environmental control, with up to 100 fixtures per channel via RS-485, plus automatic dimming/shutdown to help protect crops from excessive heat.
