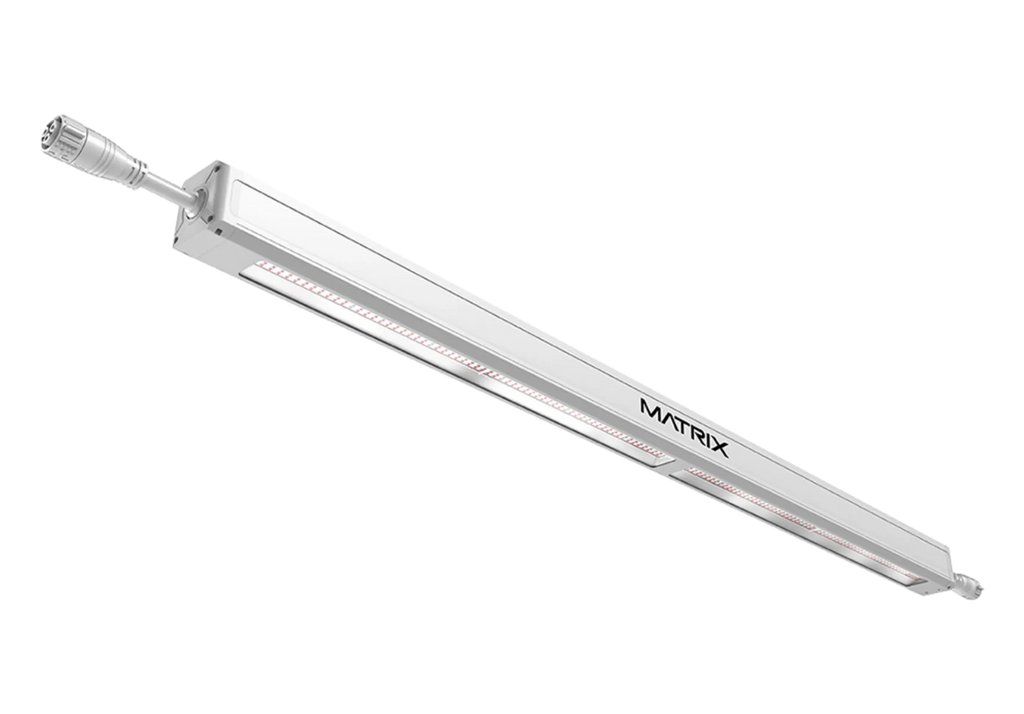

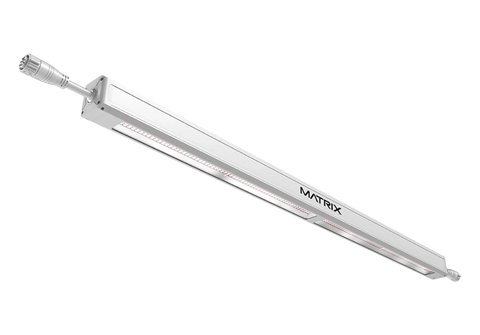

The Matrix LTL 200W Linear is an 80% red-spectrum linear LED engineered for vertical rack farming. Its shadow-free design provides uniform light distribution across multi-tier systems, while 3.2 μmol/J efficiency and 0–10V batch dimming allow precise lighting control.
• System Power: 200W
• Efficacy: 3.2 μmol/J

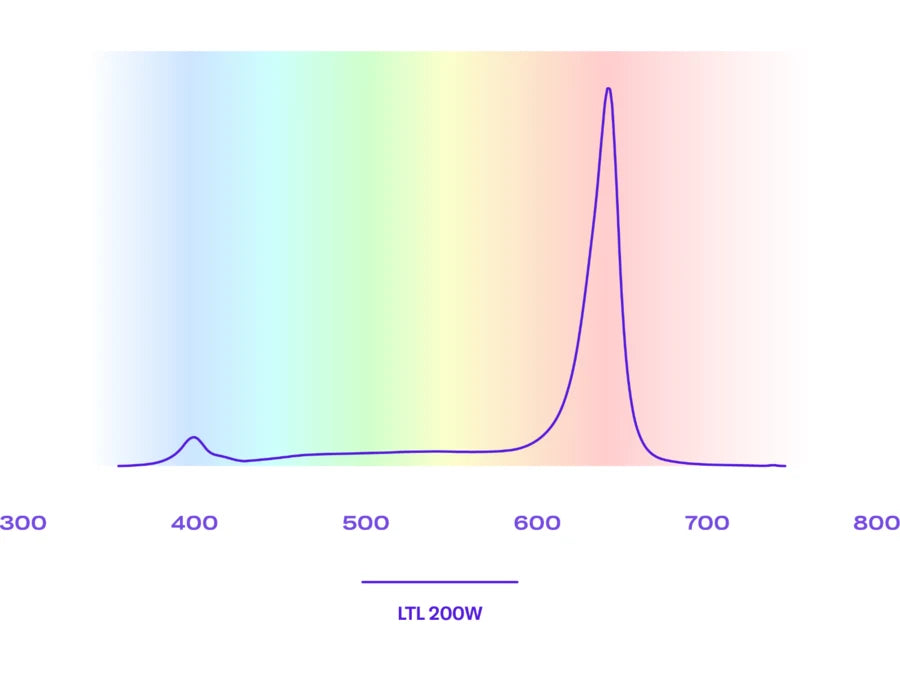

• Spectrum: 80% Red Dominant with Blue Peak
• Red Spectrum: 620–680nm — 80%
• Blue Peak: 440–460nm
• IP Rating: IP66
• Dimming: 0–10V Batch Dimming

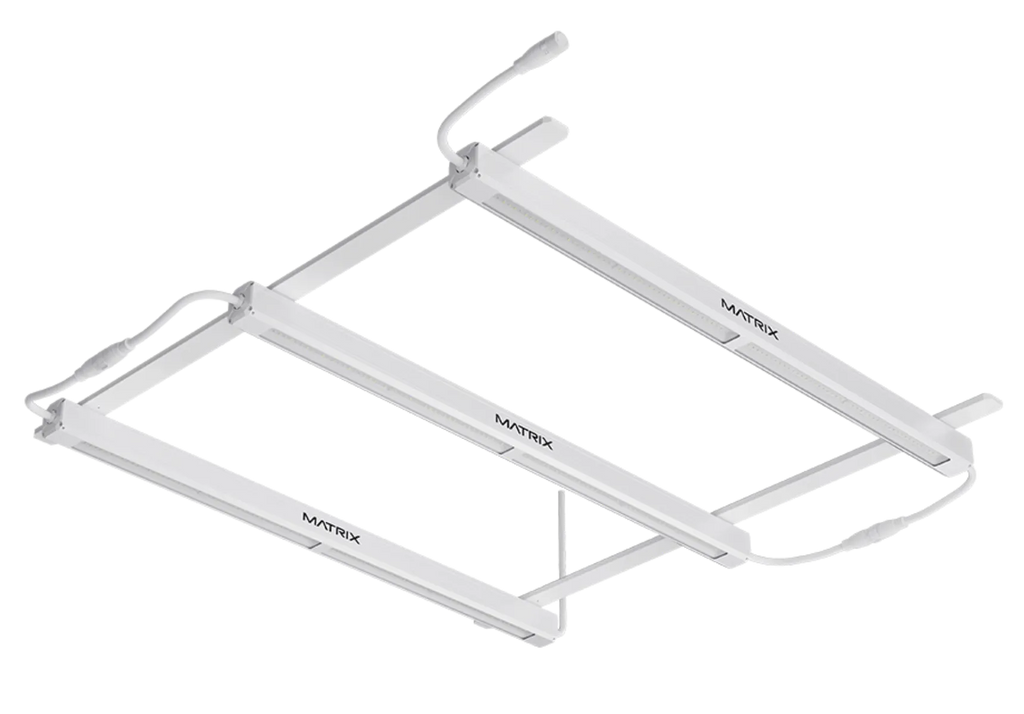

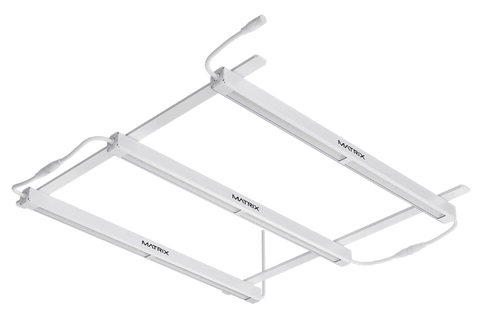

• Design: Shadow-Free Linear design for vertical racks

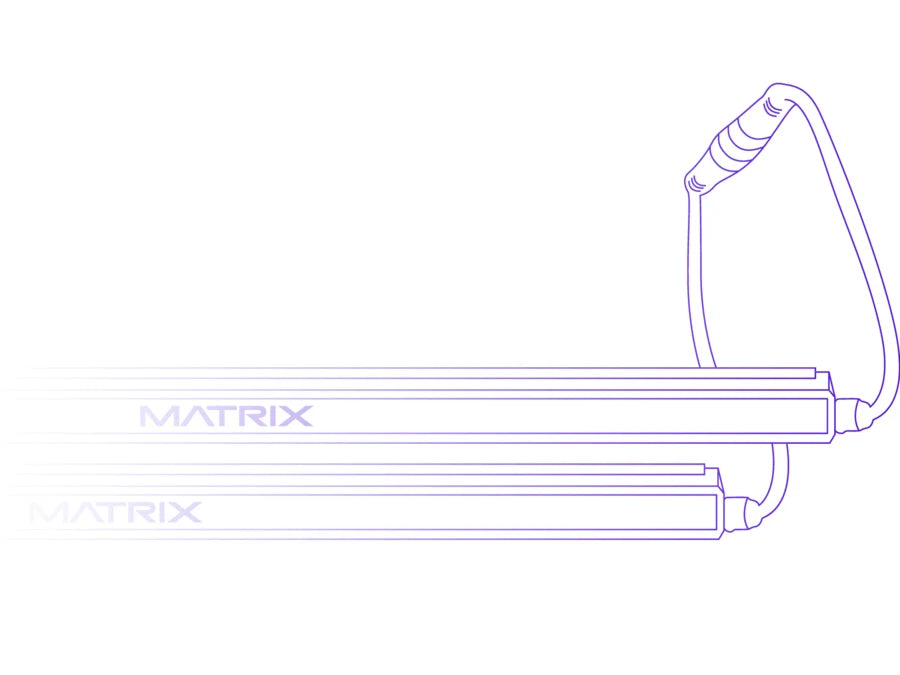

• Daisy Chain: 8–20 lights, depending on voltage
• Weight: 13.9 lbs
• Dimensions: 48.7 × 2.4 × 2.8 in
• Certifications: ETL / CE / UL8800
• Primary Application: Vertical rack farming
• Crop Focus: Flowering and fruiting crops
• Light Distribution: Uniform, edge-to-edge distribution across rack tiers
• Control: Centralized light-level control via 0–10V signal
Key Advantage: Combines an 80% red-dominant spectrum, 3.2 μmol/J efficiency, and a shadow-free linear design specifically optimized for multi-tier vertical farming, with centralized 0–10V dimming and daisy-chain installation.
