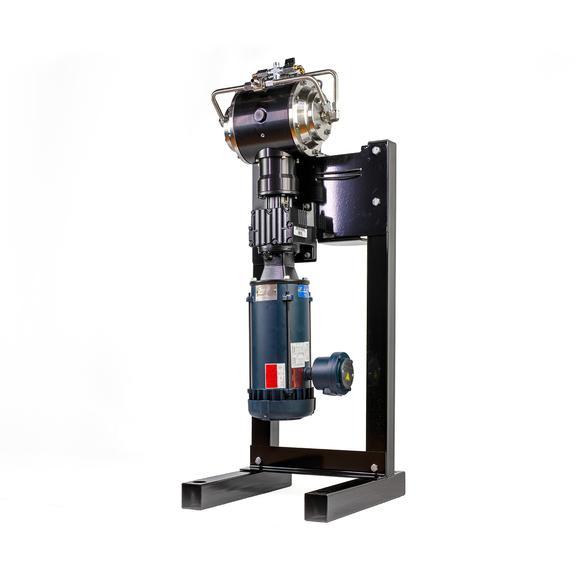

Master Vapor MVP Recovery Pump - 60 PSI
The Master Vapor Pump Model MVP-6CFM is a certified gas recovery pump designed to operate at 60 PSI. This pump is designed specifically for LP-Gas vapor recovery and is ideal for butane or butane / propane mixtures.
Engineering Specifications:
- Recover LP-Gas vapor at OVER 6 CFM (cubic feet per minute)
- Recover butane at up to 1 LB/MIN (pounds per minute)
- Recover and recondense butane at OVER 12 GPH (gallons per hour)
- Electric motor: explosion proof for C1D1 hazardous areas; rated Class I Gr C & D, Class II Gr F&G Electric motor: 1 HP, 1800 RPM, 60 HZ
- Pump speed: 190 CPM (cycles per minute) at 60 HZ
- Size: 17.0” x 19.9” base x 46” tall
- Weight: 182.5 lb (82.8 kg)
Motor Option:
- Model MVP-6CFM-1PH: Single-phase: 115/208-230V, 13.4/6.7 FLA (full load amps)
- Model MVP-6CFM-3PH: Three-phase: 208-230/460V, 3.3/1.65 FLA, Inverter-rated
