MagFan Plus

SKU: magfan-plus
Shipping calculated at checkout.

Attractive Wherever High Pressure is Needed

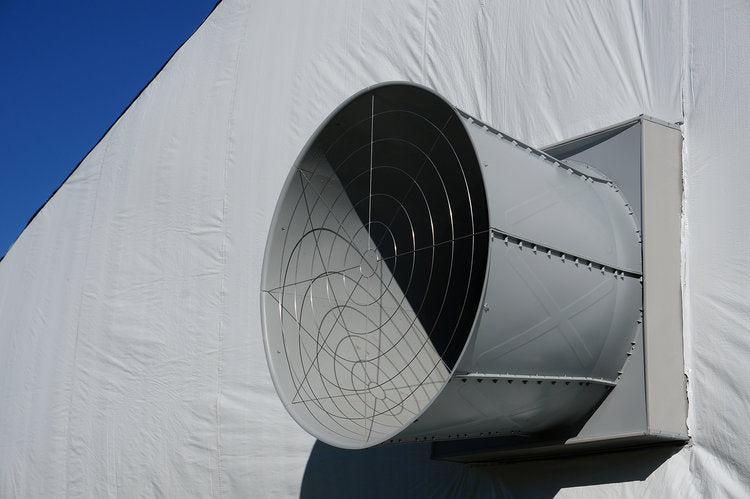

MagFan Plus is a speed controlled fan. It is equipped with a 2.2kW motor and comes with a dedicated Variable Frequency Drive (MagDrive). The MagDrive allows MagFan Plus to operate at variable speed from 160 rpm to 750 rpm. Capacity from 2000 m3/h (1180) to 79.490 m3/h (46786 cfm) at 0 Pascal.

  • Air Flow Ratio 0.86 (capacity @ 0.20” WC / capacity @ 0.05” WC)

  • Cfm/watt 23 [measured at full speed (750 rpm) @ 0.1” WC]

MagFan Plus is a more powerful version of MagFan.

The only difference between the two is the motor output. The efficiency of this unit is exactly as good as for MagFan, but due to the 2.2 kW motor the unit can work up to 750 rpm. Therefore it has a higher capacity and continues to produce air flow when static pressures exceed 90 Pascal (0.36 WC).

In large scale operations where static pressures often exceed 60 Pascal (0.24 WC) most other fans cannot produce air but MagFan Plus still produces an impressive 62.421 m3/h @ 60 Pa (36740 cfm @ 0.24” WC).

MagFan Plus uses a state-of-the-art variable frequency drive, allowing for simple single phase installation and a wide range of input voltages, ranging from 85 to 265VAC 50/60Hz, with an optional three phase drive ranging from 360 to 440VAC 50/60Hz.

This item requires a special freight quote.

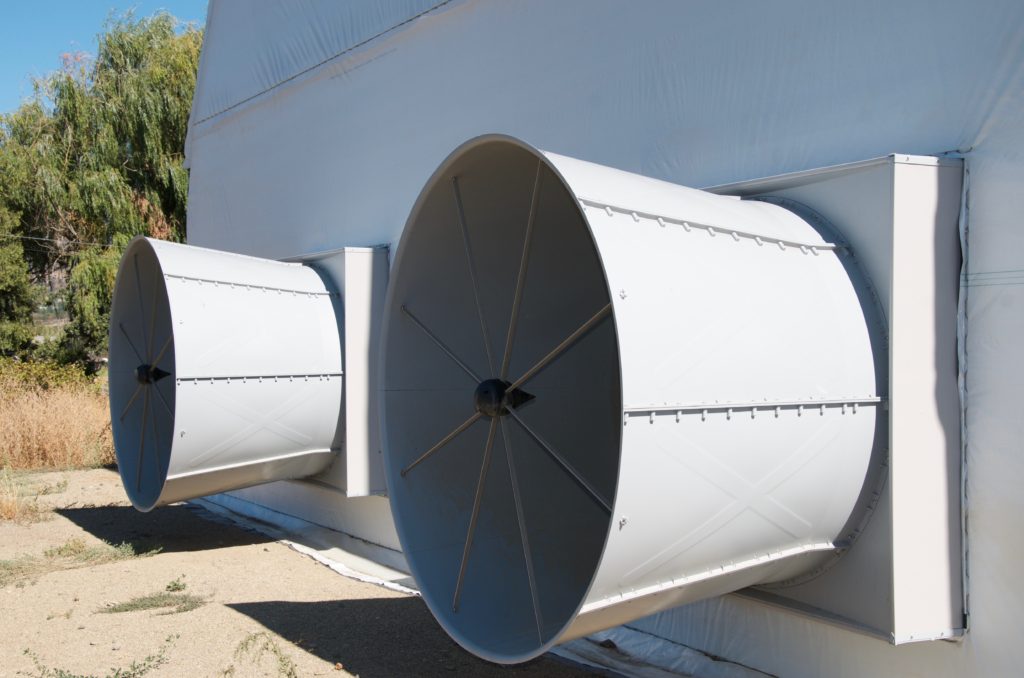

Housing and cone PP-HD, gray (RAL 7040)
PVC, gray (RAL 7040)
Impeller blades Celstran Technofiber

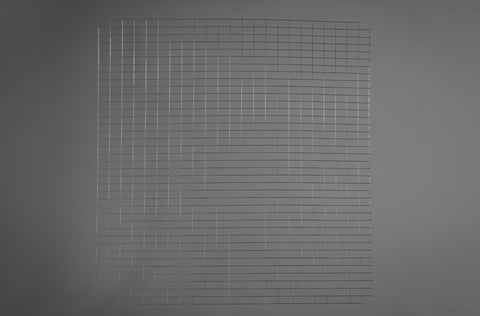

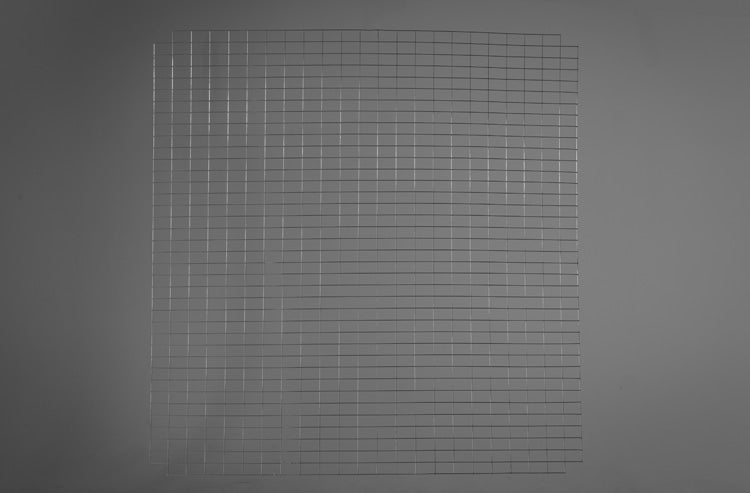

Brackets, guards Stainless steel / AISI 304 / A2
Dimensions assembled
Weight: 90 kg/200 lbs
L x W x D (mm): See drawing
Impeller diameter: 1430 mm/56.5”
Water proof speed drive
cos (phi) / power factor at full load: 0.99
In-built drive and motor protection

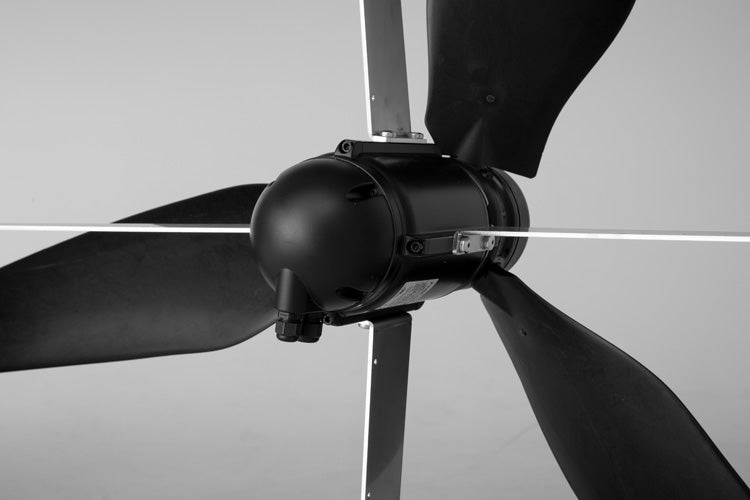

Permanent Magnet Synchronous three phase
Output (continuous duty): 2.2kW @ 750 RPM
Insulation class F, 170°C magnets
In-built double klixon thermal protection
Power supply Universal, 85-265VAC, 50/60Hz single phase
