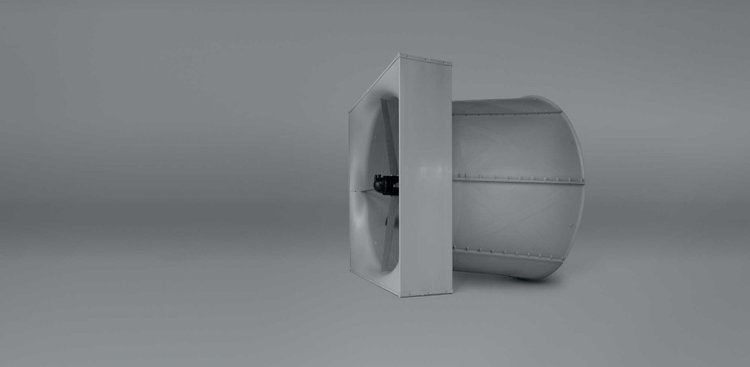

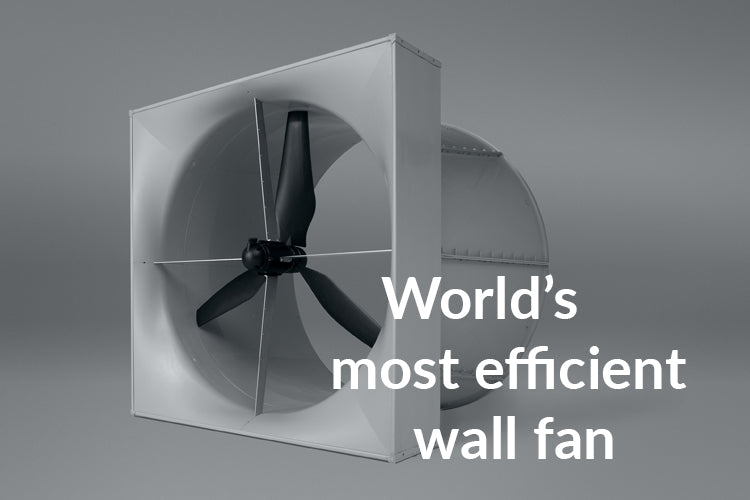

MagFan quite simply is the most efficient wall fan on the world market.

In a direct comparison against leading suppliers, MagFan offers at least 70% lower energy consumption at equivalent flow rates.

Efficiency at normal flow rates and neutral pressure is 9W/1000m³/h (65 cfm/W). The capacity on the MagFan ranges from 4000 to 72,000 m³/hour (2354 to 42,377 cfm) at neutral pressure.

  • Plug-and-run
  • Built to last, maintenance free
  • Calculated service life 100,000 +hr
  • Runs on 95% of the world’s power grid (85VAC to 265VAC)
  • Reduces CO2 emissions by at least two thirds
  • Reduces energy bills by 70% compared to top ten competitors
  • Saves 75% on transport costs
  •  Soft start and acceleration
  • Nearly silent start and stop operation

MagFan offers an unprecedented combination of high capacity, high pressure and extreme efficiency.

The unit completely changes the perception of a wall fan. Wherever energy is a limited resource and high capacity, high flow rates and high pressure is needed, MagFan is the answer. The unit is totally corrosion resistant and requires no maintenance, and the estimated service life of the product is 100,000+ hrs.

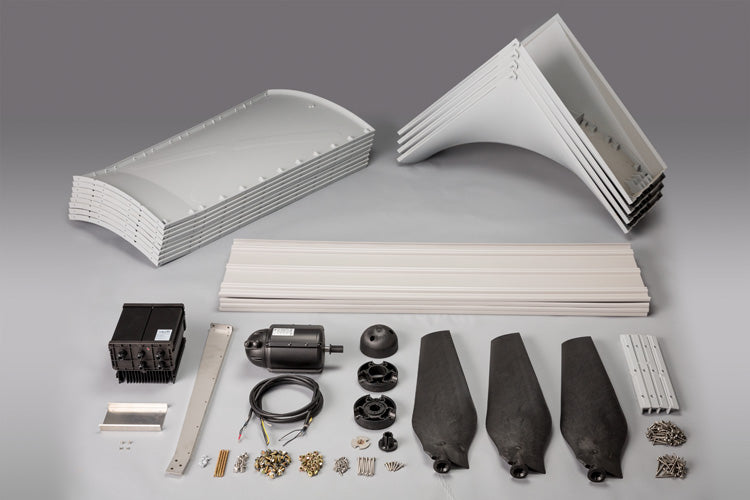

Its stackable components offer safe, ultra-compact shipping, and the fan’s simplistic design and rugged construction make it the simplest to install easiest to run fan ever. With its variable speed drive your MagFan starts slowly and quietly and accelerates to the requested speed.

MagFan is maintenance free, it is 100% recyclable, and it will run on 95% of the world’s electrical grid.

DACS has won the Danish award for Sustainable Products with MagFan.

MagFan was Best in Test at Bess Lab. View the report here.

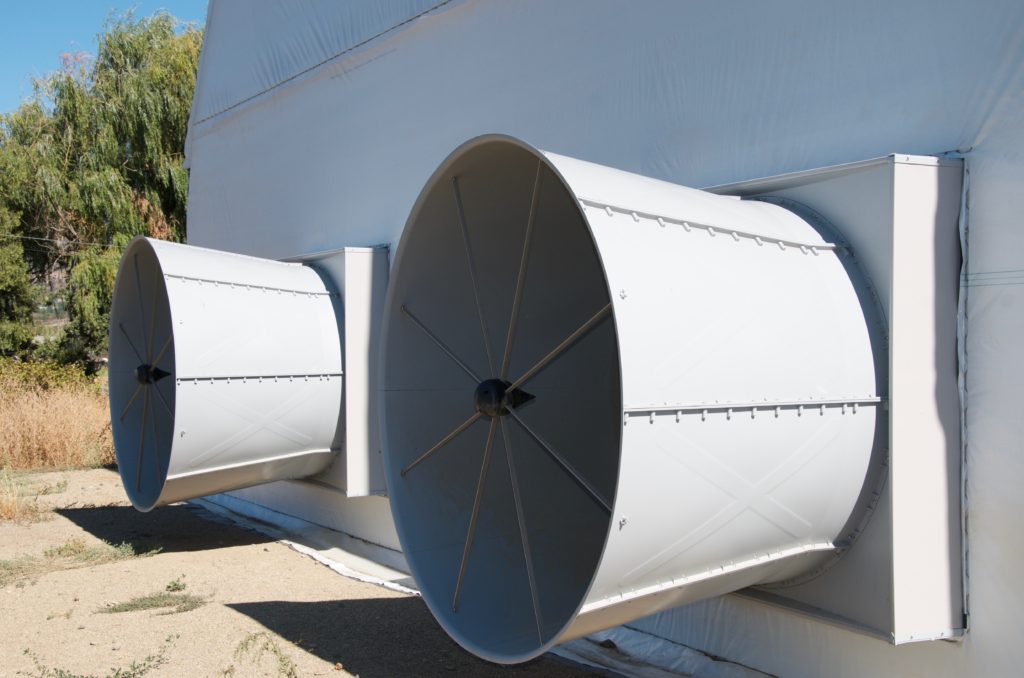

Housing and cone
PP-HD, gray (RAL 7040)
PVC, gray (RAL 7040)
Impeller blades
Celstran Technofiber

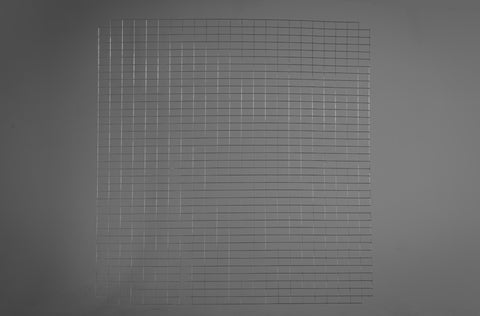

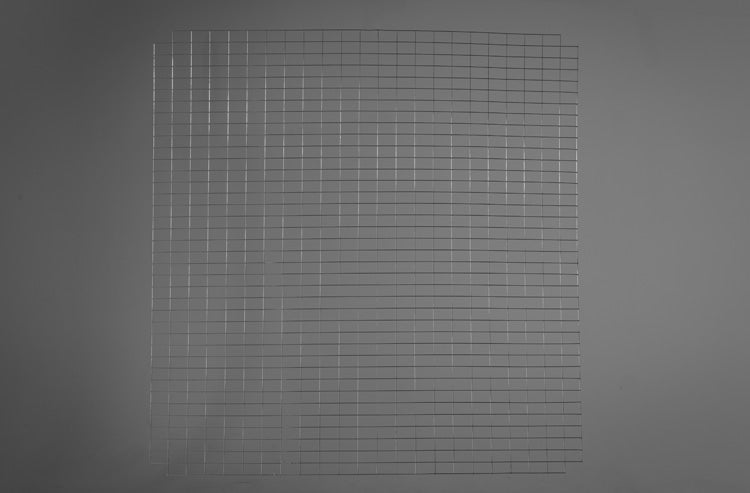

Brackets, guards
Stainless steel / AISI 304 / A2
Dimensions assembled
Weight: 90 kg /200 lbs
L x W x D (mm): See drawing
Impeller diameter: 1430 mm/56.5”
Water proof speed drive
cos (phi) / power factor at full load: 0.99
In-built drive and motor protection

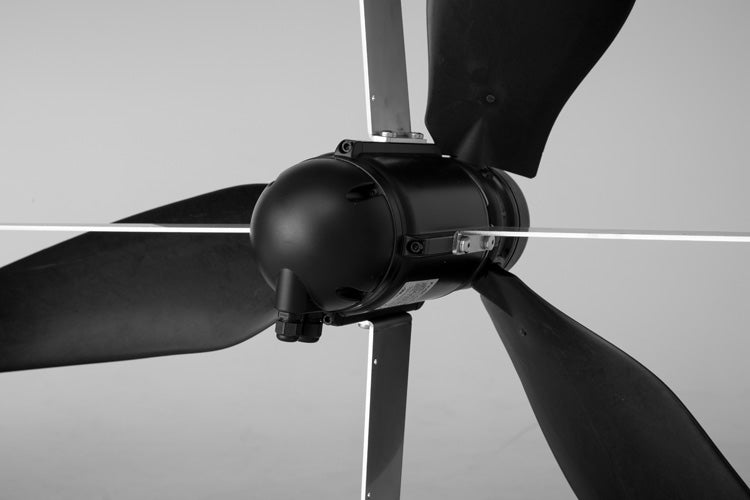

Permanent Magnet Synchronous three phase
Output (continuous duty): 1.2kW @ 670 RPM
Insulation class F, 170°C magnets
In-built double klixon thermal protection
Power supply
Universal, 85-265VAC, 50/60Hz single phase
