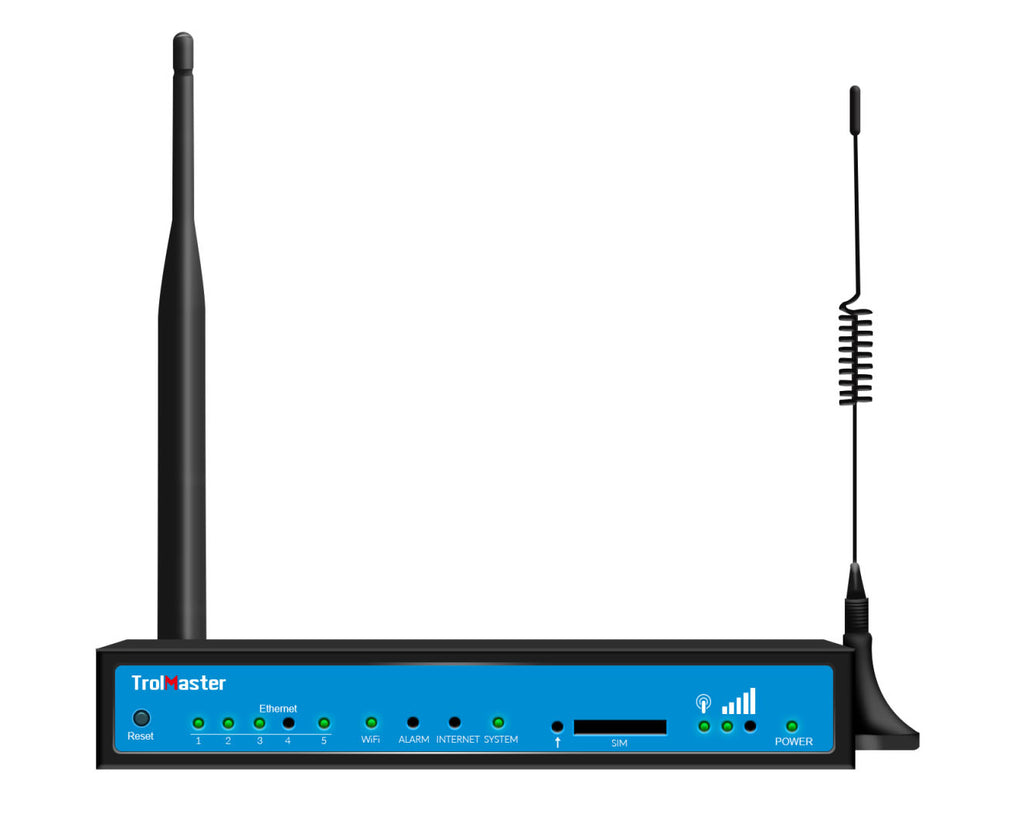

TrolMaster - Legacy 4G Data Station (cellular SIM card station to connect devices to the internet, AT&T SIM only)

SKU: RTU-1
  • Sale
  • Regular price $422.00
Shipping calculated at checkout.


If your facility does not have ANY internet service, and you want to connect the Hydro-x, Aqua-x or Hawkeye units, the RTU-1 might be the solution for you. The RTU-1 uses a cellular (AT&T) sim card and cellular network to provide an internet connection to our controllers installed in remote locations. If your facility is within range of AT&T phone service, the RTU-1 can be used to link your TrolMaster products to your smart-phone / APP. *Requires monthly service fee from AT&T

Features:

SIM Card Wireless Connectivity

 WIFI Antenna & 4G Cellular Antenna

 5 Ethernet (LAN) Cable Connectors

 Automatic Repair Function

Included In Box:

1 x 4G Data Station

1 x WiFi Antenna

1 X 4G Cellula Antenna

1 x Ethernet Cable

1 x Power Adapter

Technical Specifications:

Standard Power:          DC 12V/1.5A

Power Range:               DC5-35V

Ethernet Port:                5x10/100M LAN (RJ45), Auto MDI/MDIX, 1.5KV Magnetic Isolation Protection

WIFI Standard:              IEEE802.11b/g/n for wireless LAN

Indicators:                      LAN, WIFI, Alarm, Internet, System, Signal Strength, Power

Antenna Interface:         Standard SMA Female Antenna Interface, Characteristic Impedance 50O

SIM Card Holder:          Standard Drawer-Type Card holder

Housing:                        Metal, IP30

Packaging Dimensions:      270mm(L) x 250mm(W) x 67mm(H)

G.W. per pack:                       0.790kgs (1.74lbs)

Manual Link:
https://trolmasterfilese.s3-us-west-2.amazonaws.com/ManualFiles/4G+Data+Station+(RTU-1)_Instructions.pdf
