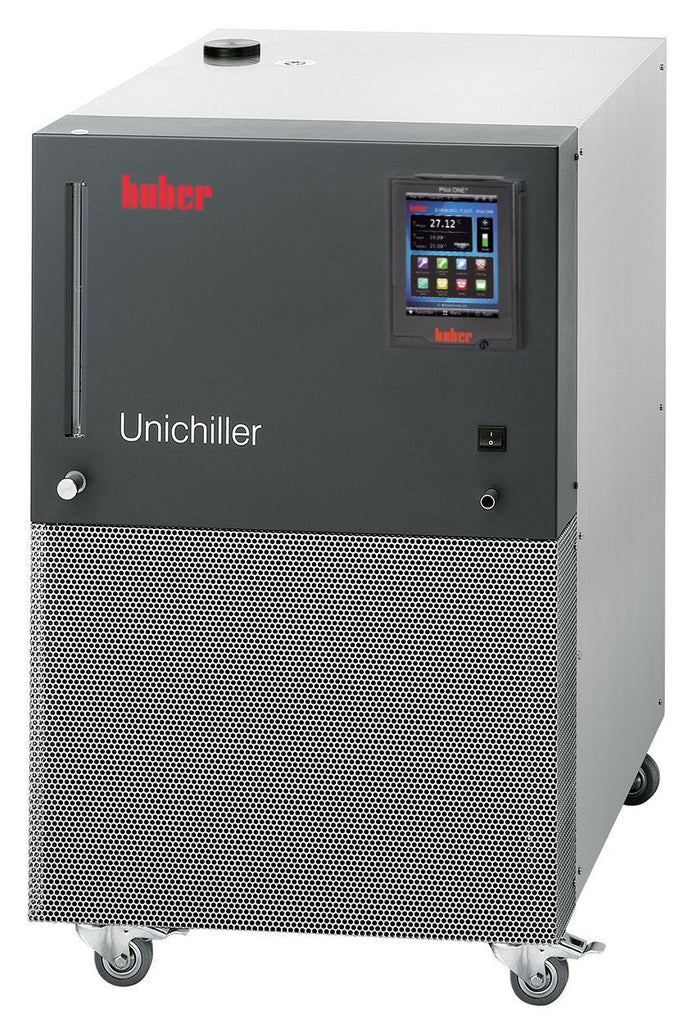

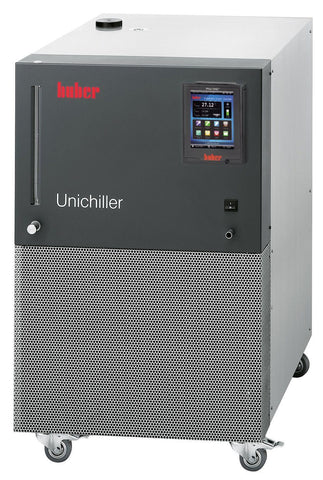

Huber Unichiller P022 with Pilot ONE
Features
- Environmentally-friendly, economic cooling solution
- High efficiency
- Precise temperature control
- Powerful circulation pump
- Robust stainless construction
- Reliable continuously operation with warning functions
- Easy to fill and empty
- Adjustable bypass, level indicator with sight glass and digital manometer

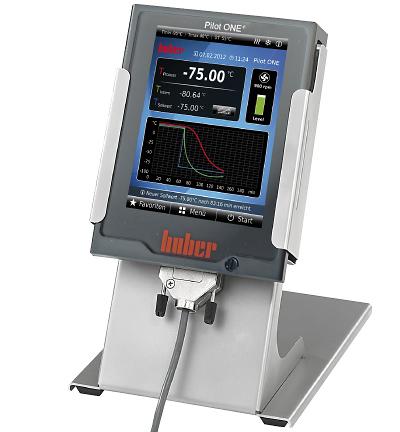

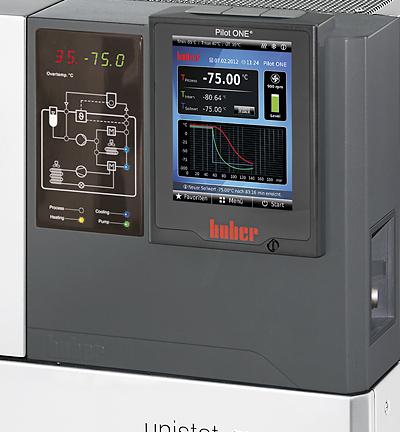

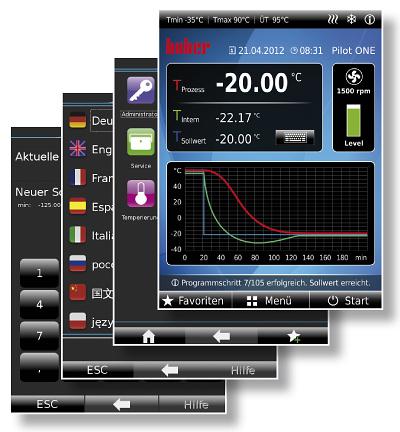

- Pilot ONE controller with 5.7" touchscreen

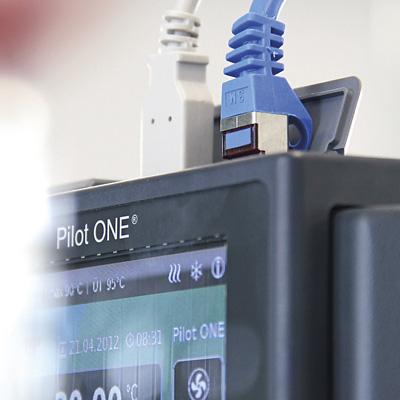

- 2 x USB (Host and Device), Ethernet and RS232 interfaces
| General information & temperature controller | |
|---|---|
| Temperature range | -10...40 °C |
| Temperature stability | ±0.5 °C |
| Temperature Control | TAC, self-optimizing (True Adaptive Control) |
| Display resolution | 0.01 °C |
| Alarm message | optical, acoustical |
| Controller | Pilot ONE (E-grade "Professional") |
| Safety class | I / NFL |
| Protection class | IP20 |
| Dimensions (W x D x H) | 18.11 x 23.23 x 29.25 inches |
| Weight | 176.4 pounds |
| Heating / cooling capacity | |
| Cooling capacity | 15 0 -10 C 2,2 1,6 1 kW |
| Cooling machine | air-cooled |
| Refrigerant (ASHRAE, GHS) | R507 (A1, H280) (0,64 kg) |
| Circulation pump | |
| Pressure pump max. | 25 lmp ; 2.5 bar / 6.6 gpm ; 36.25 psi |
| Pump connection | G3/4 AG male |
| Connections | |
| Pt100 connection | Pt100 |
| Digital interface | RS232, Ethernet, USB Device, USB Host |
| Operating data | |
| Permissible ambient temp. | 5...40 °C |
| Filling volume min. | 3.8 Liters / 1 gal |
| Volume of expansion | 1.7 Liters / 0.45 gal |
| Power supply | 208V 2~ 60Hz |
| Current max. | 10 A |
Miscellaneous
Please take further technical information as well as information about the scope of delivery, accessories and peripheral devices from the PDF data sheet. In cases of doubt the details given in there apply. If nothing to the contrary is quoted then the performance data referred is at an ambient temperature of 20°C.
Please observe the notes on installation and/or the space requirements of our products. The following voltage and frequency tolerances apply based on EN60034-1: Voltage +/- 5% for a frequency tolerance at the same time of +/- 2%.
Examples to illustrate this: Not permissible, for example. is -5% on the voltage and +2% on the frequency. Permissible, on the other hand, are tolerances of -5% on the voltage and -2% on the frequency.
This equipment is compliant to US-SNAP and all applicable EU laws. The US-SNAP end-use for this equipment is the industrial process refrigeration. Certification by a Notified Body upon request.
We reserve the right to make technical changes and correct errors. Illustrations can deviate from the original.
