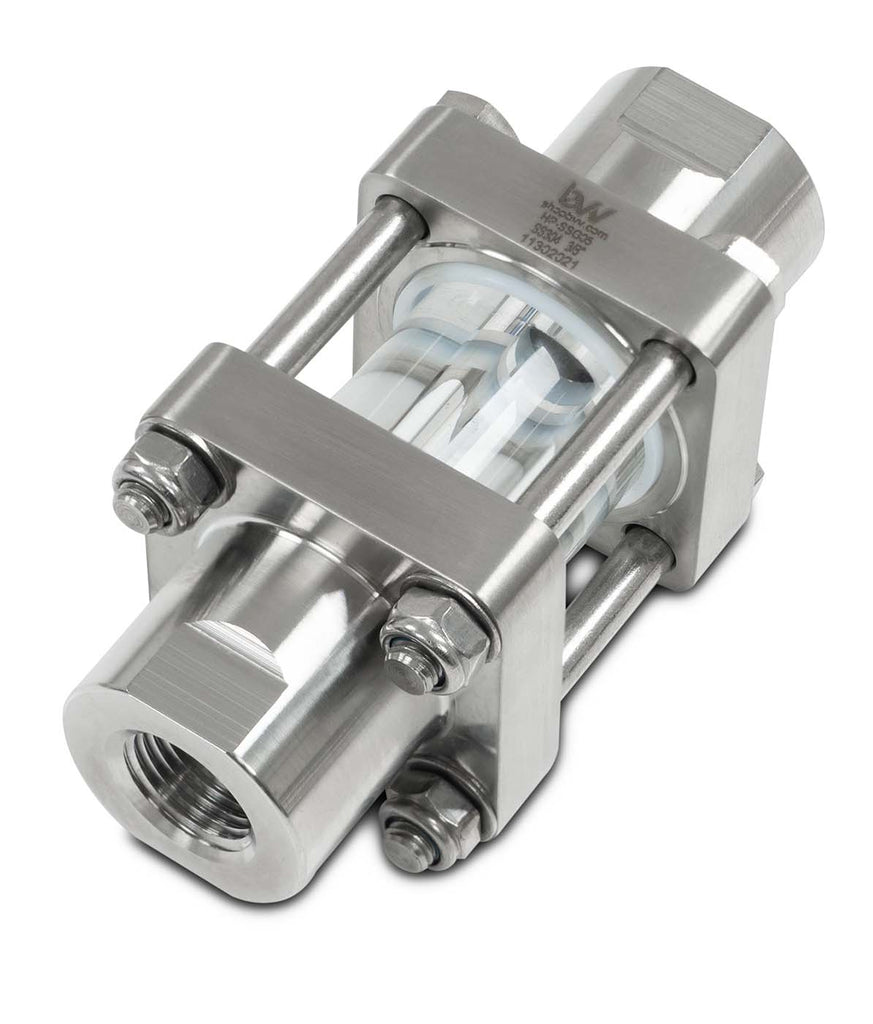

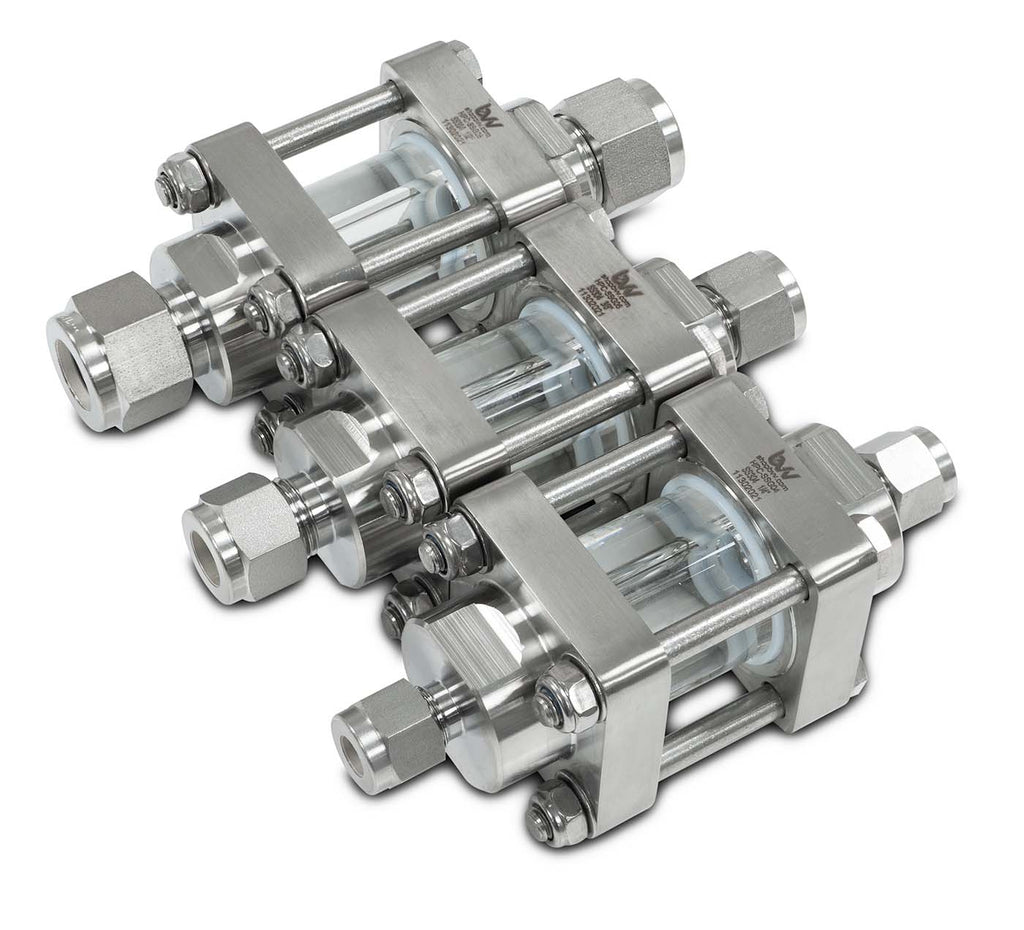

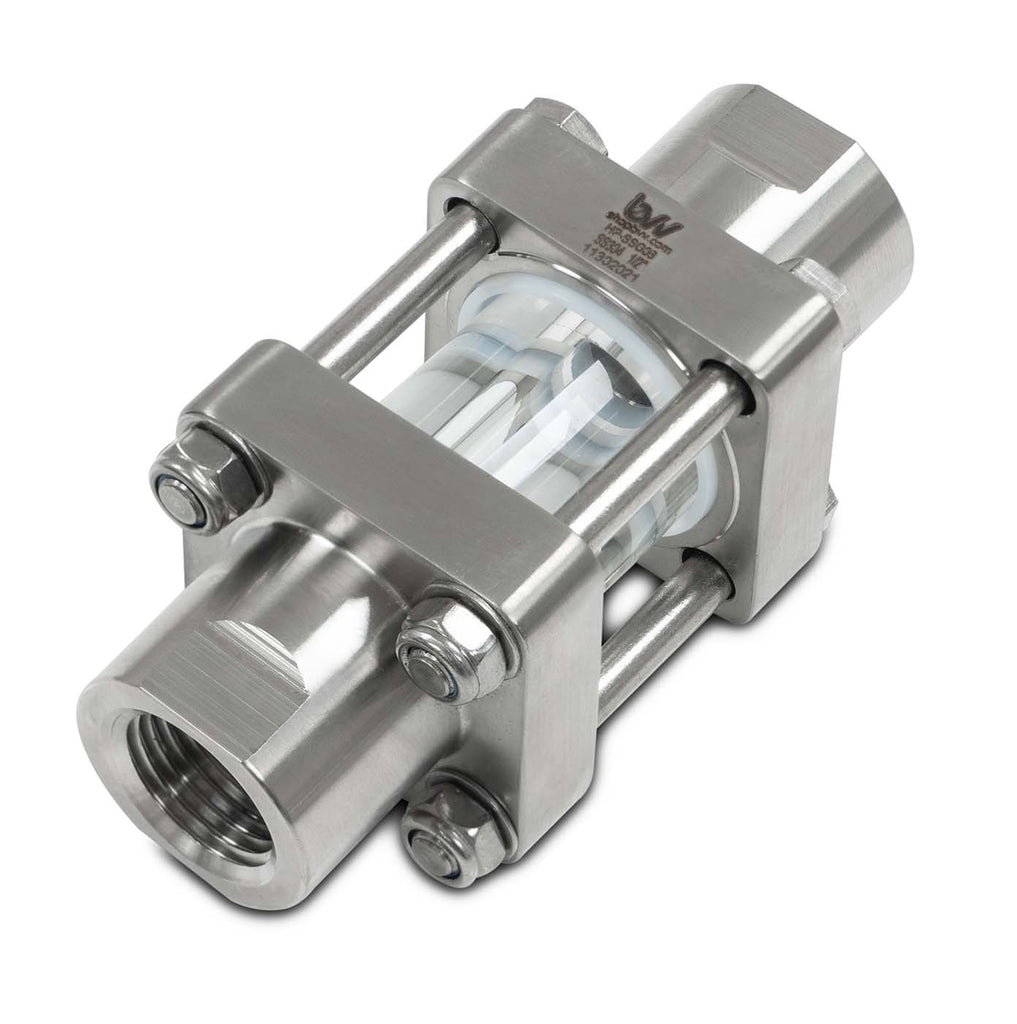

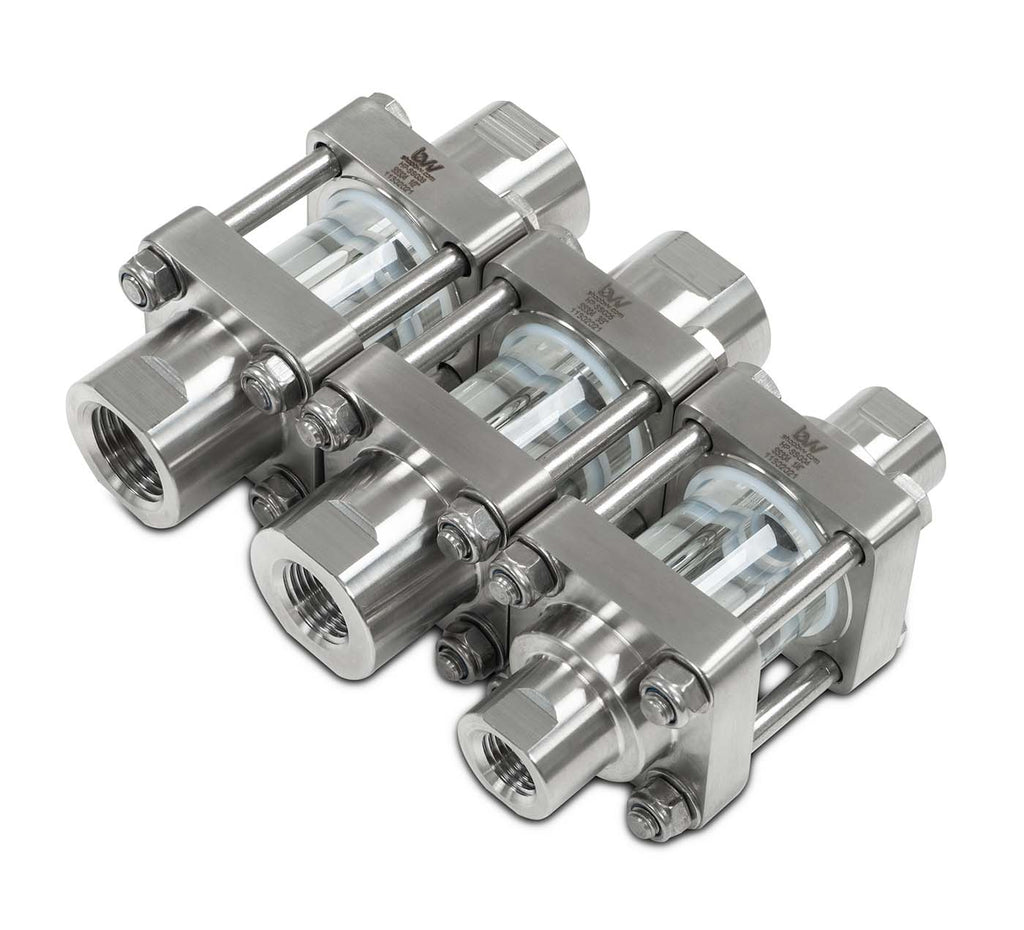

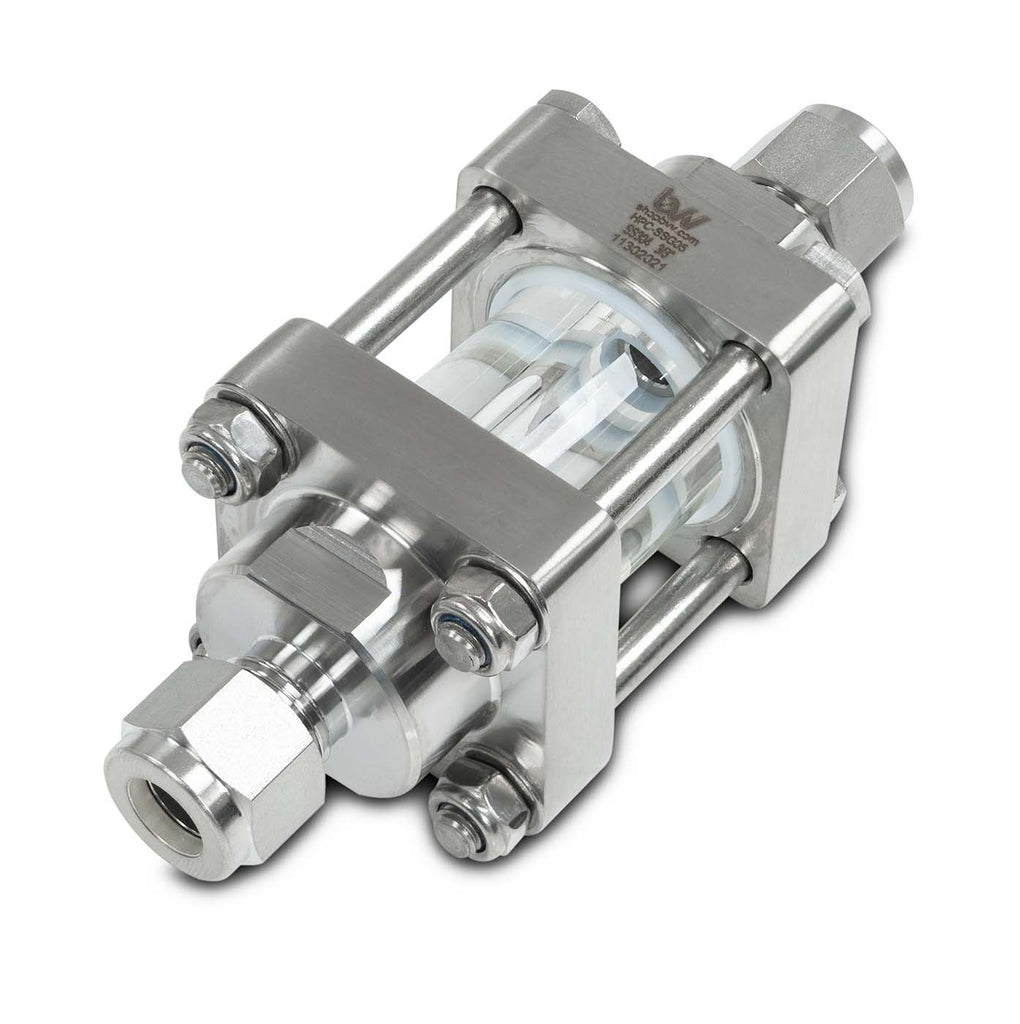

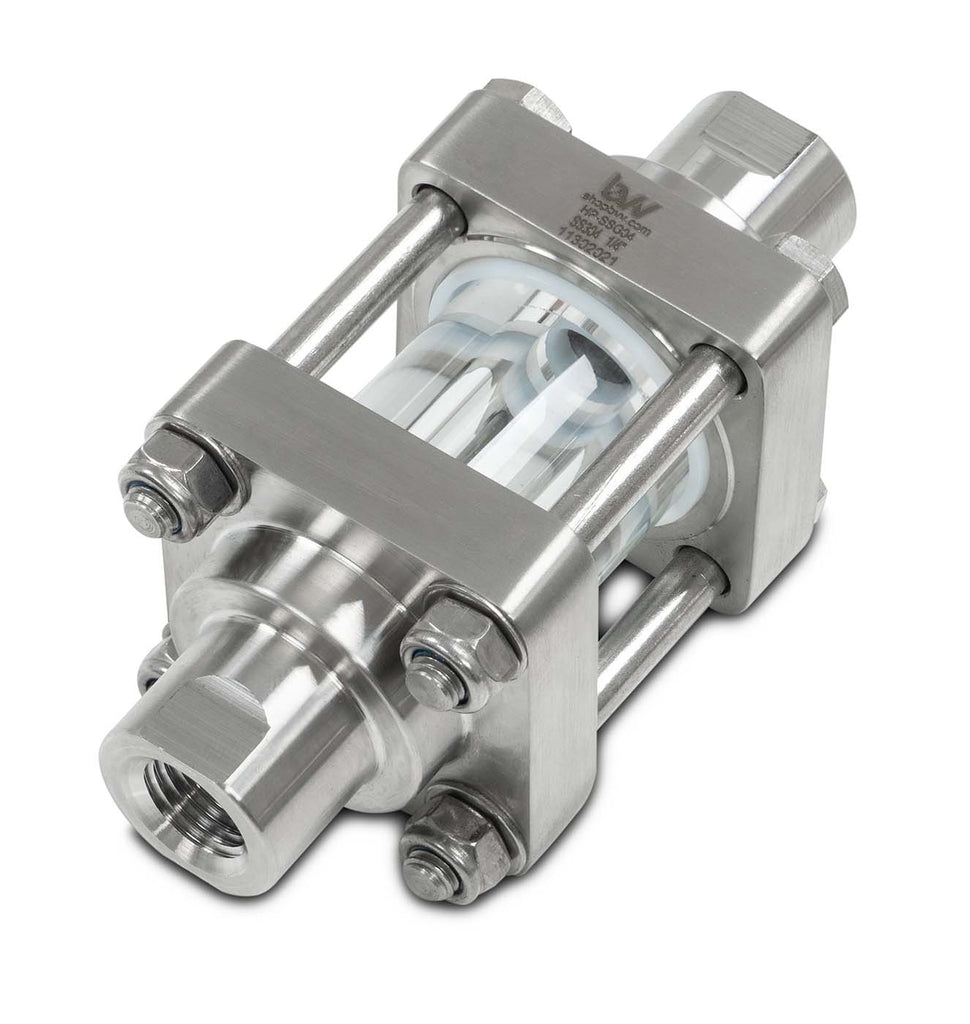

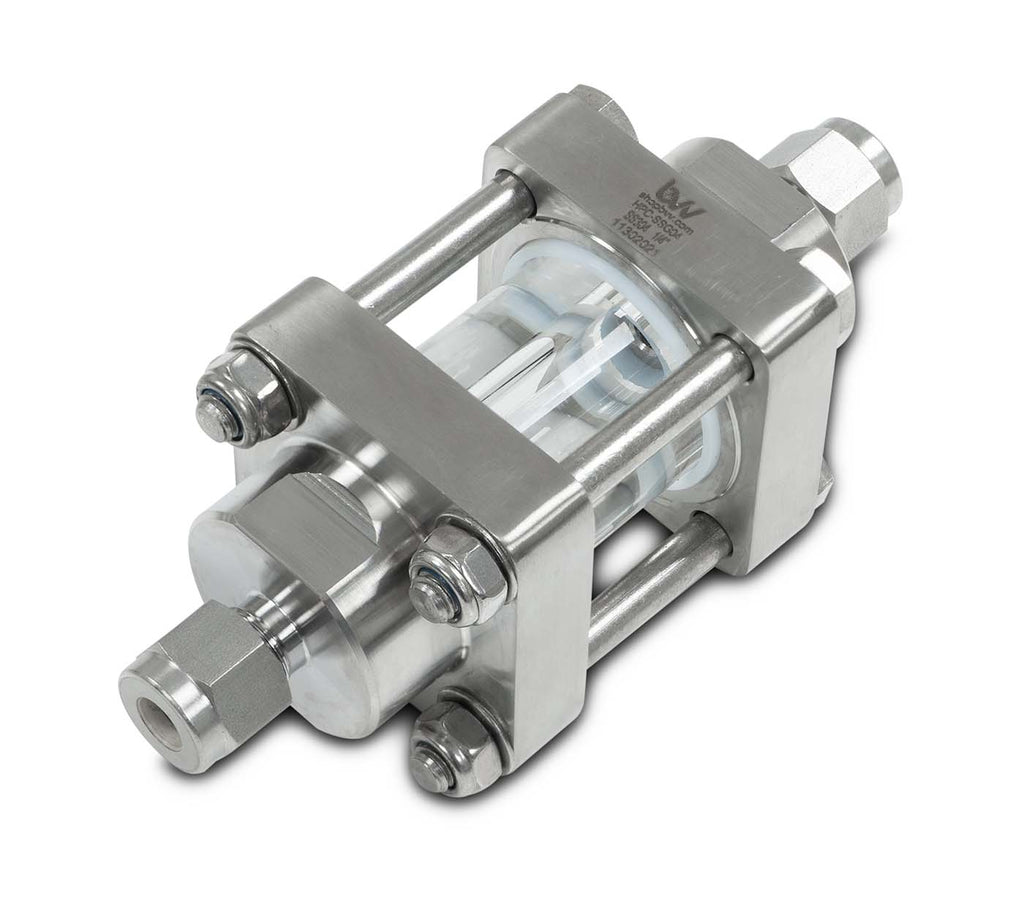

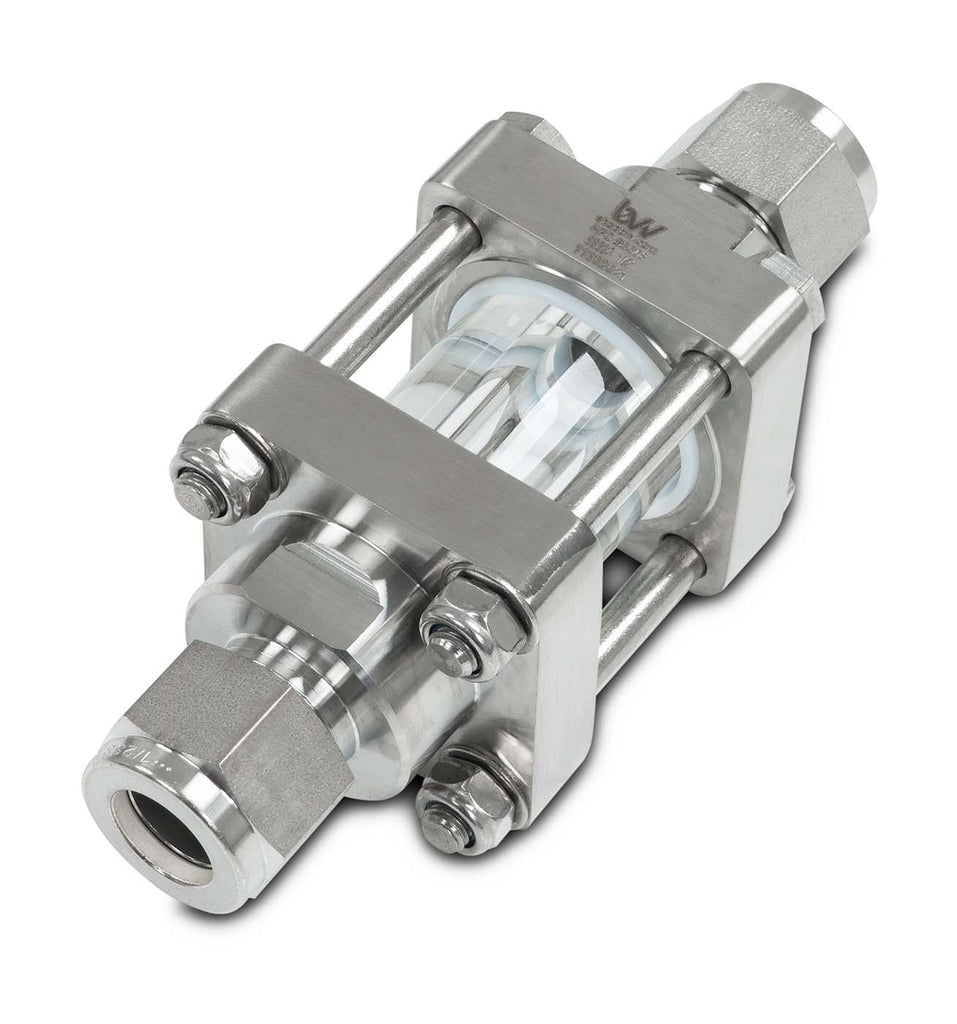

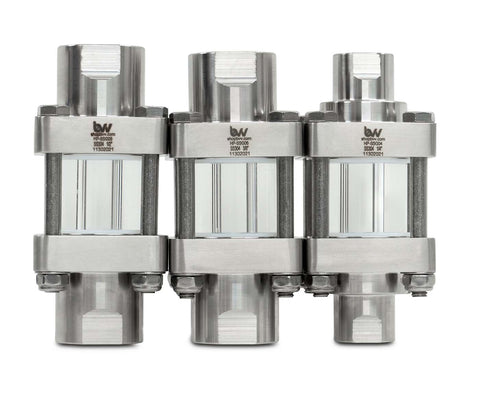

These Stainless Steel inline sight glasses are designed for high pressure applications and come in 1/4", 3/8", or 1/2" FNPT OR Female Compression Connection.
BVV™ PTFE High Pressure Inline Sight Glass - Data Sheet
*Data sheet shows specs for PTFE option only
| Specifications | Female NPT | Female Compression Connection |
|---|---|---|
| Materials: | Stainless Steel / Borosilicate / PTFE Seal or Viton | |

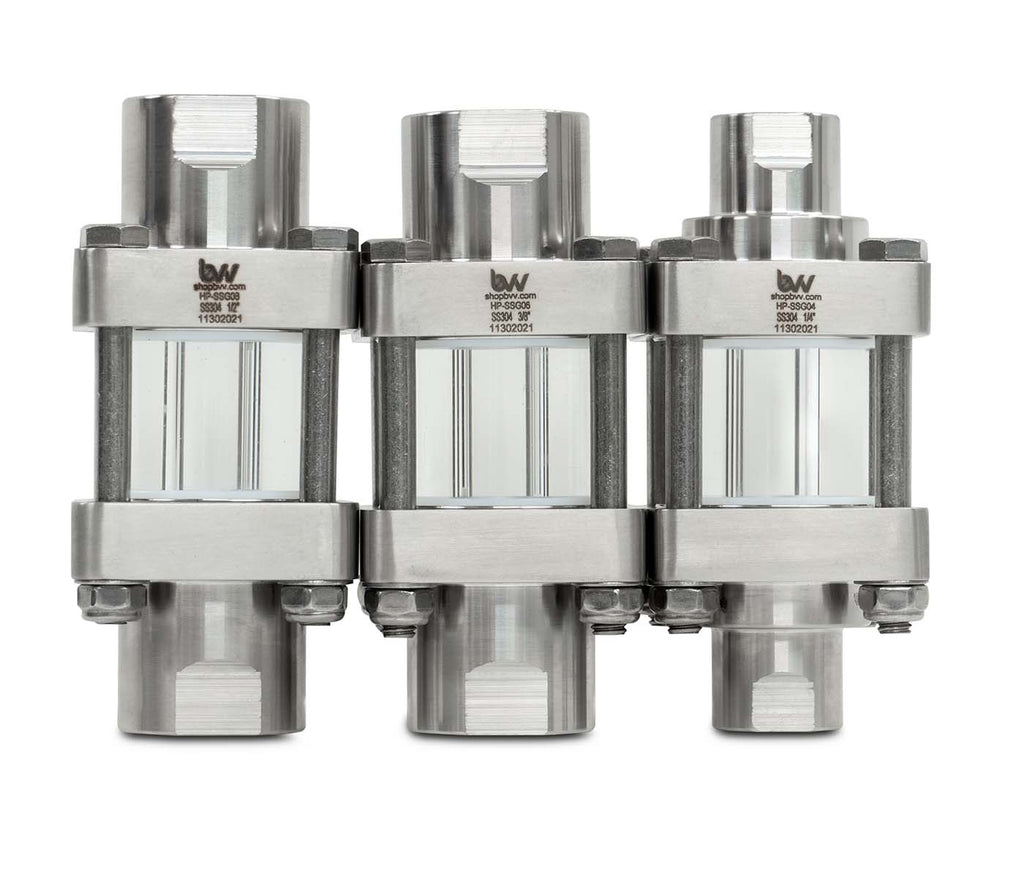

| Sizes Available: | 1/4", 3/8", 1/2" | |
| Dimensions: LxWxH | ||
| 1/4" | 1.75" x 1.75" x 4" | 1.75" x 1.75" x 4.5" |
| 3/8" | 1.75" x 1.75" x 4" | 1.75" x 1.75" x 4.5" |
| 1/2" | 1.75" x 1.75" x 4" | 1.75" x 1.75" x 4.75" |
| PSI Rating | 300 PSI | |
