Description

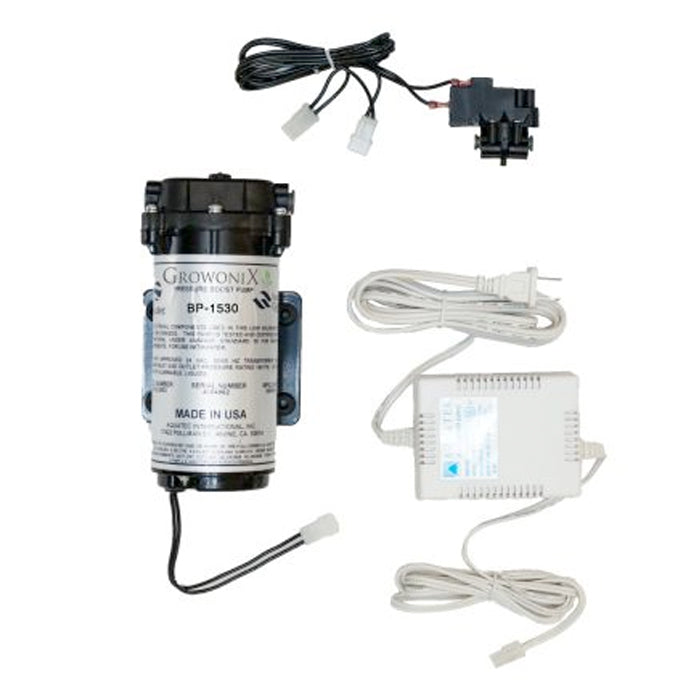

The BP-1530 Booster Pump boosts inlet water pressure for compatible GrowoniX water filters.
Pressure limits: The listed maximum output pressure is 80 PSI. Follow the manufacturer's operating instruction: do not exceed 79 PSI output pressure. Never subject the pump to pressures above 80 PSI. Read the complete owner manual before installation.
The BP-1530 Booster Pump is designed for use with all GrowoniX water filters 600 GPD and under. The GrowoniX BP-1530 Series Booster Pumps allow for the full potential performance of the RO membrane to be achieved with only 35 PSI of incoming water pressure. It is a solution for users with low feed water pressures and those who want maximum performance from their GrowoniX water filter.
System features
- Pressure switch.

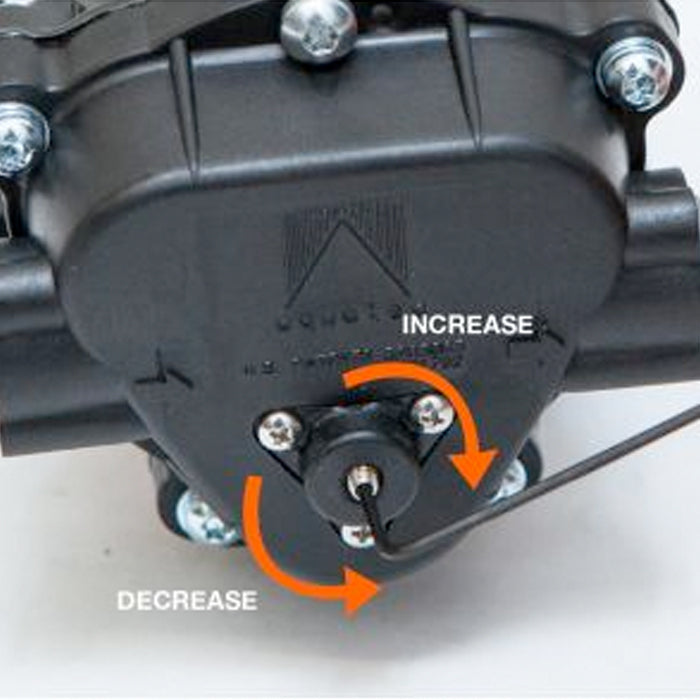

- Adjustable internal bypass.
Specifications
Product video topics
- GrowoniX BP-1530: Overview
- GrowoniX BP-1530: Connection and Tuning
Technical specifications
| Specification | Value |
|---|---|
| Port Size: | 3/8" Tube |
| Max Flow Rate GPM: | 1 |
| High Pressure Cutoff: | Yes (40psi RO Line) |
| Max Output Pressure PSI: | 80 |
| Standard Voltage: | 120V 60Hz 1 PH |
| Voltage Amp Draw: | 2A |
Packaging specifications
| Specification | EACH | CASE | MASTER CASE | PALLET |
|---|---|---|---|---|
| UPC: | 850035050491 | 850035050491 | 850035050491 | 850035050491 |
| quantity: | 1 | 4 | 0 | 0 |
| Weight (lb): | 9.00 | 36.20 | 0.00 | - |
| Width (in): | 13.00 | 13.00 | 0.00 | - |
| Height (in): | 3.50 | 13.00 | 0.00 | - |
| Length (in): | 7.50 | 17.00 | 0.00 | - |
