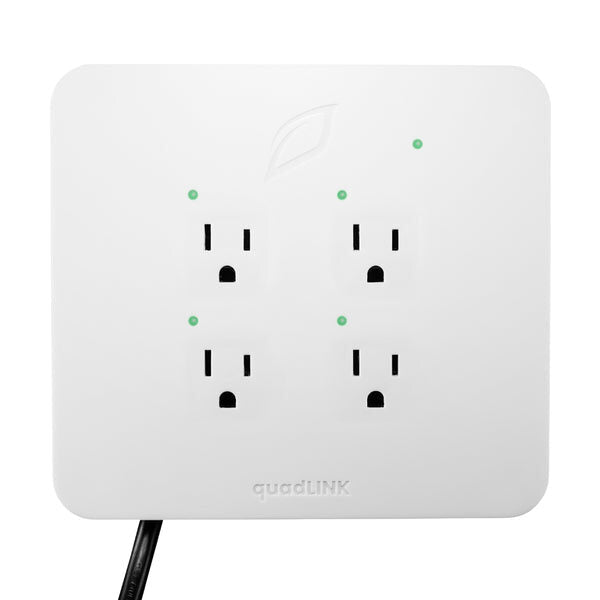

The Growlink quadLINK (GL-LINK-QUAD) is a four-channel relay switching module that brings four independently controlled 120VAC outlets into the Growlink OS environment. Each outlet can operate independently using manual control, time-based scheduling, or sensor-triggered automation, making the unit suitable for controlling pumps, CO₂ equipment, fans, supplemental lighting, dehumidifiers, and other 120VAC ancillary equipment. It can connect through a Growlink LINKS HUB or operate as a standalone device over secured 2.4 GHz Wi-Fi.
• SKU: GL-LINK-QUAD
• Controlled Outlets: 4 × independently switched outlets
• Receptacle Type: NEMA 5-15R
• Voltage: 120VAC per outlet
• Current Rating: 6A maximum per outlet
• Combined Maximum Load: 9A across all four outlets
• Relay Durability: 100,000+ switching cycles
• Relay Cycle Counter: Tracks up to 4 billion cycles per relay
• Connectivity: Growlink LINKS HUB via RJ-45 or standalone secured 2.4 GHz Wi-Fi
• 5 GHz Wi-Fi: Not supported
• HUB Port Usage: 1 HUB port controls all 4 outlets
• Control Modes: Manual, scheduled, and sensor-triggered
• Independent Control: Each outlet can have its own schedule or automation trigger
• Sensor Automation: Can respond to live Growlink sensor data such as VPD, temperature, humidity, CO₂, and substrate readings
• Typical Applications: Irrigation pumps, CO₂ solenoids/controllers, inline fans, circulation fans, supplemental lighting, dehumidifiers, and similar 120VAC loads
• Remote Control: Growlink OS and Growlink mobile app
• Run Logging: Supported through Growlink OS
• Alerts: Supported through Growlink OS
• Status Indicators: Individual LED for each receptacle + Wi-Fi status LED
• Mounting: Wall mounting hardware included
• DIN Rail: Optional DIN rail mounting kit available separately
• Installation Environment: Indoor only
• High-Humidity Installation: Sealed enclosure recommended where humidity exposure is unavoidable
• 240VAC Equipment: Not designed for high-draw 240VAC equipment
• HUB Requirement: Not required; standalone 2.4 GHz Wi-Fi operation is supported
• Country of Origin: USA
Key Advantage: The quadLINK turns one Growlink HUB port into four independently programmable 120VAC outputs, allowing each connected device to respond to its own schedule or live sensor conditions. This provides a compact way to automate multiple ancillary devices while keeping their control and monitoring centralized in Growlink OS.
