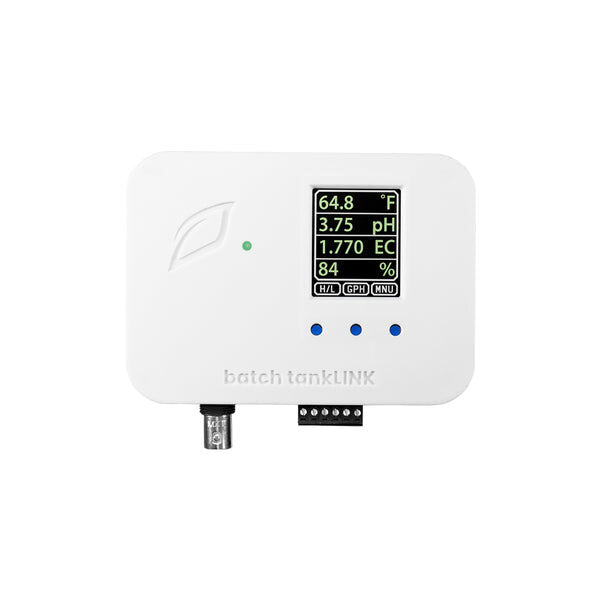

The Growlink batch tankLINK (GL-LINK-BATCH) is a dedicated nutrient-tank monitoring and automation controller for continuously tracking EC, pH, temperature, and tank level. It can trigger automated refills based on tank-level thresholds, store sensor data locally, provide configurable high/low alerts, and send data to Growlink OS for centralized monitoring and crop-steering analysis. It can also operate independently over Wi-Fi when a Growlink HUB is not present.
• SKU: GL-LINK-BATCH
• Primary Function: Nutrient tank monitoring and automation
• Monitored Parameters: pH, EC, temperature, tank level
• Input Voltage: 120 VAC / 15A branch circuit; 24 VDC internal
• Power Consumption: Approximately 5W
• pH Range: 0–14 pH
• pH Accuracy: ±0.02 pH
• pH Resolution: 0.01 pH
• EC Range: 0–7,000 µS
• EC Accuracy: ±20 µS below 2,000 µS; ±50 µS above 2,000 µS
• Temperature Accuracy: ±3.6°F (±2°C)
• Temperature Resolution: 0.02°F
• Level Sensor Input: 4–20 mA
• pH Connection: 1 × BNC
• EC + Temperature Connection: 1 × terminal block
• HUB Connection: 1 × RJ-45
• Connectivity: Growlink HUB or standalone Wi-Fi
• Data Storage: Up to 21,600 data points per sensor
• Data Display: Front-panel LCD with graphical history
• Alarm System: Independently configurable high/low thresholds for each parameter
• Alerts: On-screen alerts; Growlink mobile push notifications when HUB-connected
• Automated Refill: Can trigger refill valves or pumps based on level thresholds
• Growlink OS: Real-time data, historical trends, crop-phase overlays, and multi-room comparisons
• Growlink Copilot: Supports closed-loop crop-steering automation when HUB-connected
• Operating Temperature: 50–122°F (10–50°C)
• Operating Humidity: 0–75% RH, non-condensing
• Dimensions: 7.5 × 7.5 × 4 in
• Weight: 3.0 lb
• Level Sensor: Sold separately
• Included Sensors: pH probe, EC probe, and temperature probe
• Included Accessories: Power supply, mounting kit, RJ-45 cable, and mini screwdriver
• HUB Capacity: One Growlink HUB supports up to 8 LINKS devices
• Typical Companion: Growlink valveLINK 8-channel irrigation controller for physical valve control
• Origin: Made in USA
Key Advantage: The batch tankLINK combines four critical nutrient-tank measurements with local data logging, threshold alerts, and automated refill capability in one controller. When connected to Growlink OS, the tank data can be combined with irrigation and canopy data to support centralized monitoring and closed-loop crop steering.
