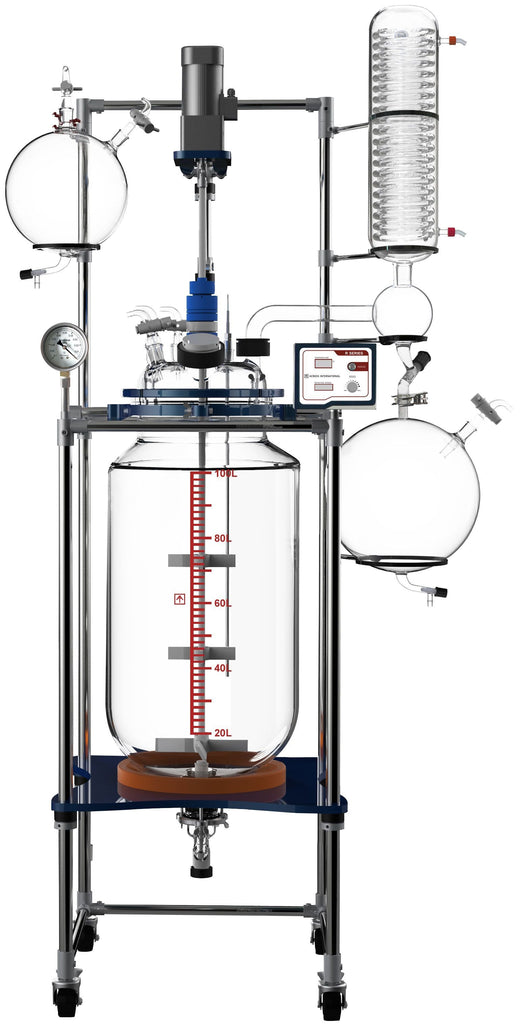

Glass Reactor Ai 100L Non-Jacketed With 200°C Heating Jacket
Ai R100 series jacketed glass reactors are designed for synthetic reaction of different types of materials in a controlled temperature and vacuum environment. Each reactor features adjustable stirring speeds and a constant pressure feeding funnel that allows you to add material to the vessel at a uniform and controlled speed. The built-in condenser makes it possible to recover some materials, also at a controlled rate of speed.
Features
-
No more expensive heating circulators, no more messy heat transfer fluid, adapters and tubing. Introduing the new Ai ReactorHeater 200C heating jacket with temperature controller.

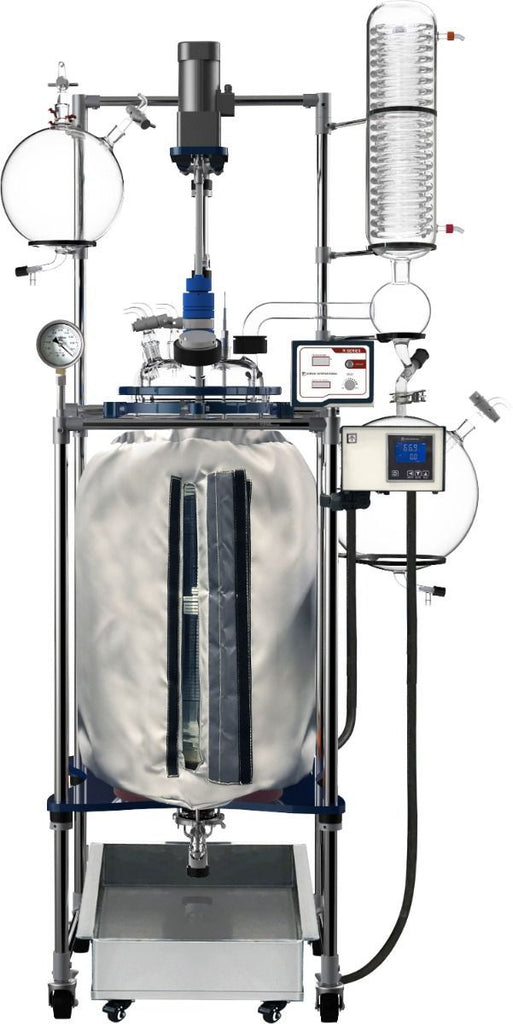

Ai 100L ReactorHeater with temp controller
- 200C maximum temperature
- 220V 50/60Hz 6,300 watts
- Speedy heating
- Ultra-thick insulation for minimum heat loss and very low outer jacket surface temperature
- Built-in open/close viewing window
- Easy installation, plug and play
- Oven-temp protection, over-current protection
- ETL tested to UL and CSA standards
- Designed and made in the USA
- ETL tested to UL and CSA standards (optional)
- Solvent-resistant PTFE on all sealing components ensures long time durability and operation.
- All glassware is hand-made from food grade high borosilicate glass that is heat/cold/corrosion-resistant.
- Adjustable stirring rate provides great torque or high speed.
- Patented PTFE stirring rod bearing for reliable and quiet operation.
- Optional multi-layer stirring blades for optimal reaction results.
- Large condenser cooling surface for exceptional condensation performance.
- Rugged stainless steel reinforced PTFE stirrer with anchored agitator, suitable for a wide range of viscous materials.
- Easily visual operation with digital speed and temperature displays.
- Heavy duty stainless steel supporting framework with lockable casters for mobility and stability. (whole support and glass vessel shipped pre-assembled)
