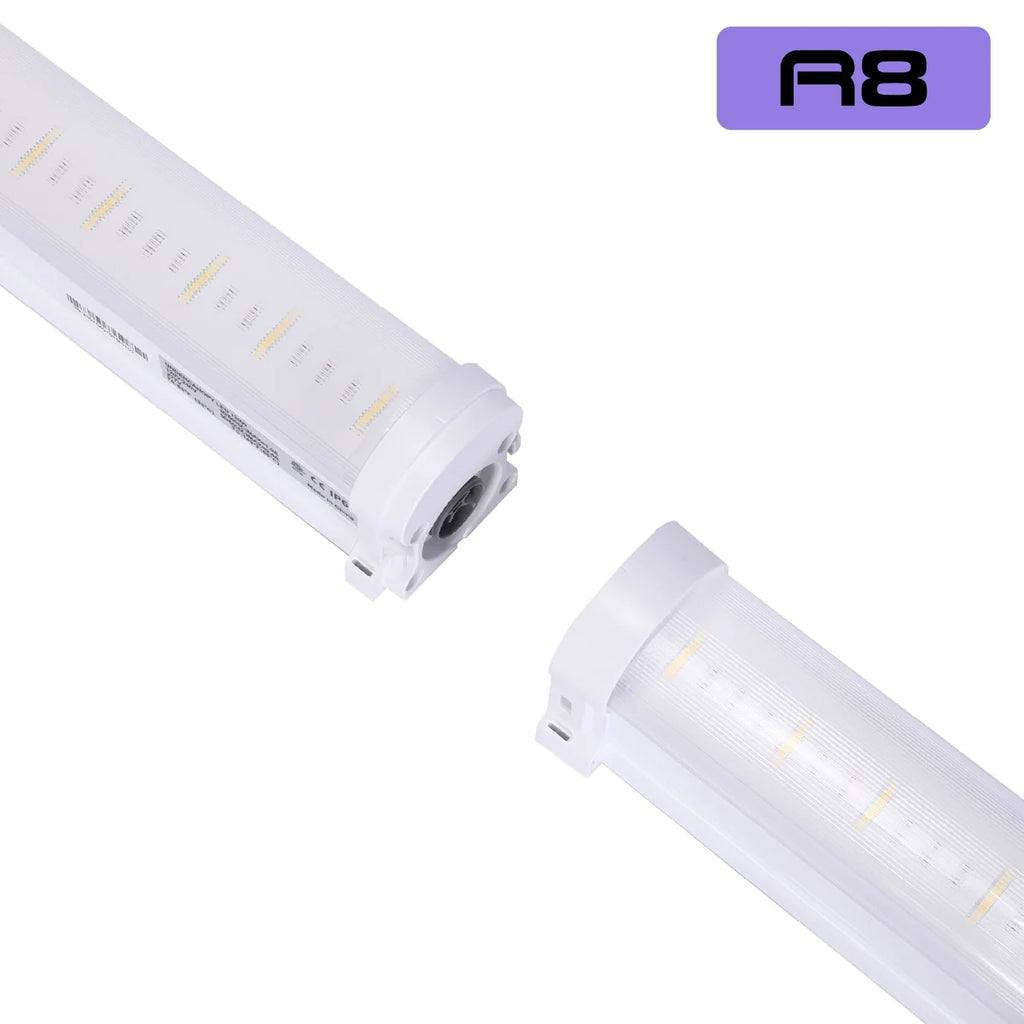

The Faven R8 is a 120W, 46-inch dimmable LED under-canopy bar designed specifically for LED top-light, mixed-light, and greenhouse flower rooms. It delivers 340 µmol/s PPF at up to 2.9 µmol/J, using an 80% red spectrum to supplement the lower canopy where overhead fixtures cannot provide sufficient red-spectrum light. Its IP66-rated construction and scalable daisy-chain design make it suitable for commercial deployment.
• Model: Faven R8
• Power: 120W
• PPF Output: 340 µmol/s
• Efficacy: Up to 2.9 µmol/J
• Spectrum: 80% Red — optimized for LED / greenhouse top-light rooms
• Bar Length: 46 in / 1,170 mm
• Dimensions: 1,170 × 74 × 84 mm (L × W × H)
• Input Voltage: 120V / 240V / 277V
• Dimming: 0–10V, 9 intensity levels + full power
• Dimming Range: Approximately 35–40% to 100%
• Daisy Chain: Up to 10 fixtures @ 120V / 17 @ 240V / 20 @ 277V per circuit
• IP Rating: IP66 — wet-location rated
• Control: 0–10V RJ-port input
• Controller Compatibility: Faven Mini Controller, TrolMaster, Vivosun
• Scheduling: Separate timer required for ON/OFF scheduling
• Mounting: Faven Adjustable Stands — 8", 10", or 12" positions
• Applications: LED flower rooms, greenhouses, mixed-light rooms, lower-canopy supplementation, commercial flower production
• Certifications: ETL / DLC / CE / FCC
• Warranty: 5 years
• Accessories: Power cords, stands, controllers, and jumper cables sold separately
Key Advantage: The 80% red spectrum is specifically designed to complement full-spectrum LED top lights, adding targeted red-spectrum photons to lower bud sites rather than duplicating the broadband light already provided from above.
