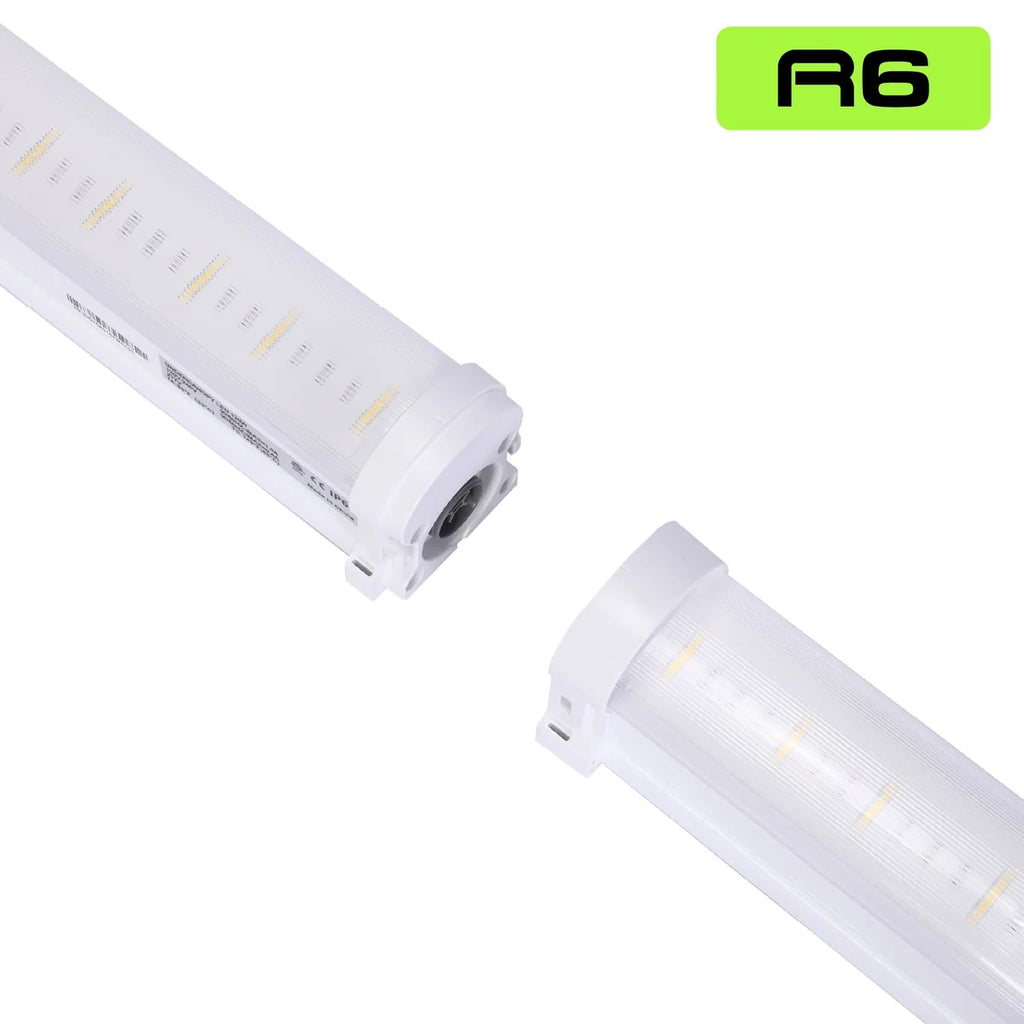

The Faven R6 is a 120W, 46-inch under-canopy LED bar engineered specifically for HPS top-light rooms. It uses a 60% red, full-spectrum blend to supplement the lower and mid canopy, adding the blue and green wavelengths HPS lacks while reinforcing the 660nm red peak. It delivers up to 340 µmol/s at 2.9 µmol/J, with an IP66-sealed aluminum housing for commercial wet environments.
• Model: R6
• Power Draw: 120W
• PPF Output: Up to 340 µmol/s
• Efficacy: 2.9 µmol/J
• Bar Length: 46 inches
• Spectrum: 60% red, full-spectrum blend — HPS optimized
• Input Voltage: 120V / 240V / 277V
• IP Rating: IP66 — fully waterproof, sealed housing
• Dimming: 0–10V, down to 35–40% of maximum output
• Daisy Chain: Up to 20 bars per circuit
• Weight: 5.73 lbs
• Housing: One-piece sealed aluminum construction
• Lens: Bubbled-lens diffusion for even photon distribution
• Mounting: Mid-canopy; compatible with adjustable stands at 8", 10", and 12" heights
• Controller Compatibility: TrolMaster, Vivosun, Growlink, GrowFlux, Argus, Thrive, Agritek DXV4, and standard 0–10V platforms
• Applications: HPS rooms, lower/mid-canopy supplementation, commercial bench rows, flowering, and wet commercial environments
• Warranty: 5-year commercial warranty
Key Advantage: Specifically designed to complement HPS top lights, the R6 uses a 60% red balanced full-spectrum blend to fill spectral gaps in the lower canopy while delivering 340 µmol/s at 2.9 µmol/J, with IP66 protection and up to 20 bars per circuit for scalable commercial deployment.
