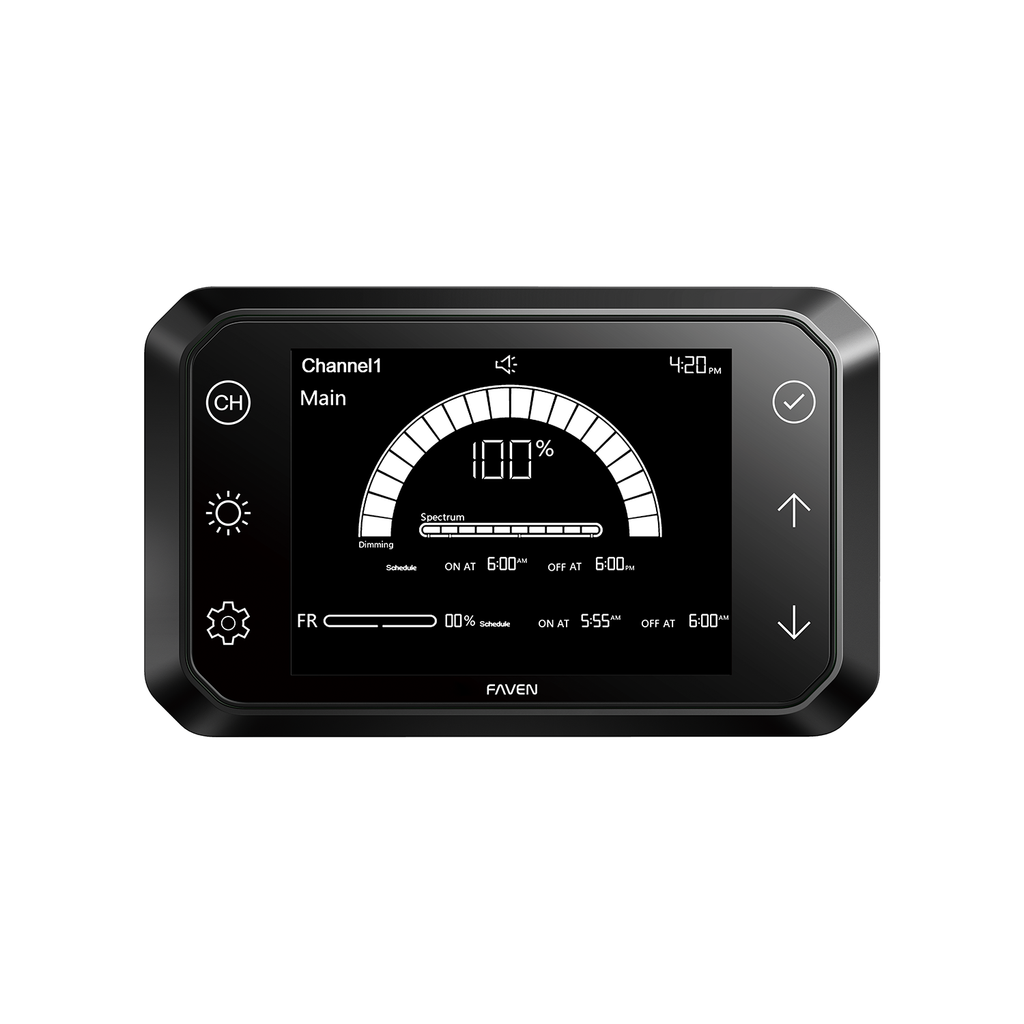

The Faven CX2 is a standalone dual-channel lighting controller built exclusively for the Faven Chroma under-canopy LED system. It provides independent control of the main spectrum and far-red channel, including R4–R9 spectrum adjustment, dimming, and daily scheduling, without requiring software, Wi-Fi, cloud access, or a third-party automation system.
• SKU: 10-010701-061
• Compatible Fixtures: Faven Chroma under-canopy LED only
• Control Channels: 2 independent channels
• Channel 1: Main output intensity + R4–R9 spectrum ratio
• Channel 2: Dedicated 15W Far Red channel
• Fixtures per Channel: Up to 100 standard; up to 150 in select configurations
• Dimming Range: 40–100%
• Spectrum Adjustment: R4–R9 red/white ratio
• Scheduling: Daily time-based scheduling with ON, OFF, and optional ramp functions
• Input Voltage: 100–240VAC
• Operating Temperature: 0–50°C (32–122°F)
• Maximum Humidity: ≤80% RH
• Connectivity: Faven link ports using standard Chroma communication cables
• Network Requirement: Fully offline — no Wi-Fi, app, cloud, or remote access
• Mounting: Wall screws or integrated magnets for tool-free mounting on steel racks
• Control: Manual, programmable schedules, spectrum recipes, and far-red timing
• Applications: Commercial and craft cultivation, multi-tier vertical grows, rolling-bench flower rooms, and separate veg/flower zones
Key Advantage: Provides complete independent control of Faven Chroma fixtures, including R4–R9 spectrum tuning, 40–100% dimming, and dedicated far-red scheduling, while supporting up to 100 fixtures per channel without requiring a network, app, or third-party control platform.
