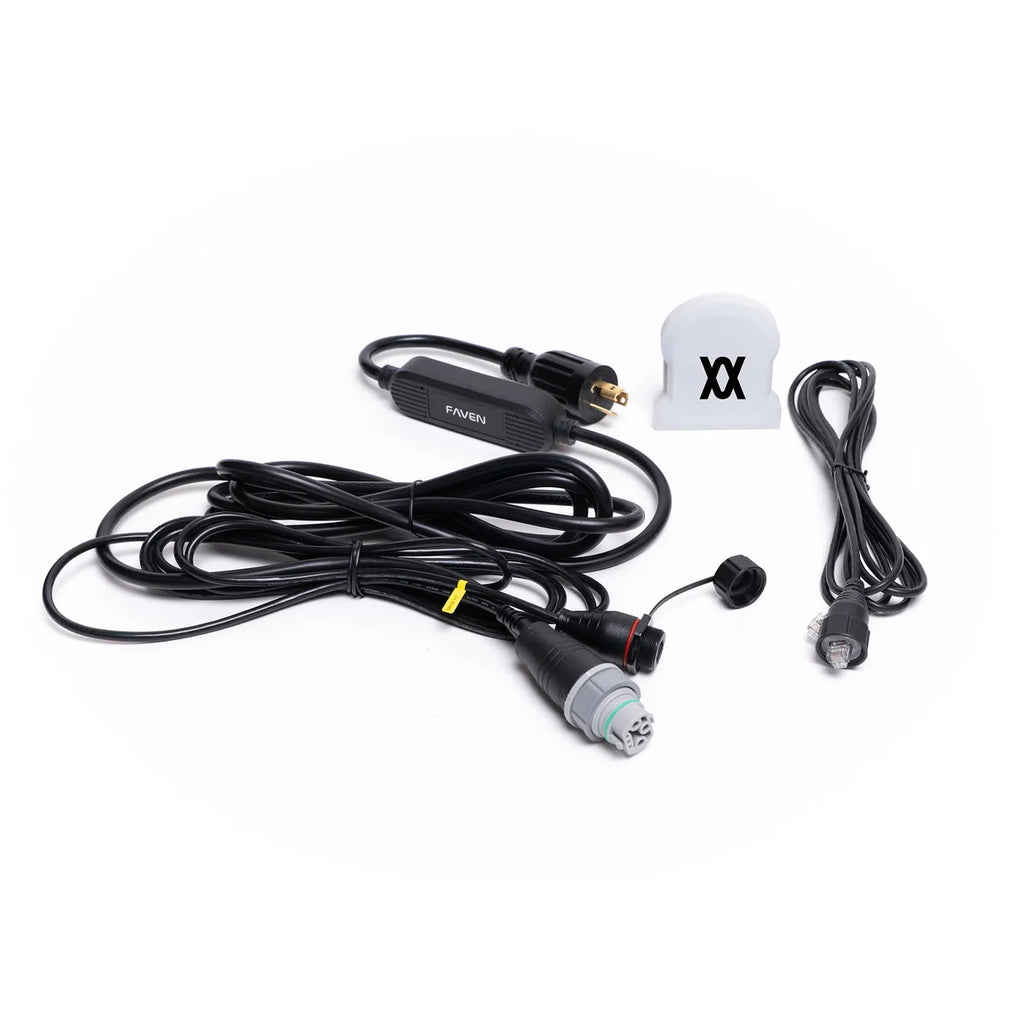

The Faven 277V Power Cord W/SPD 1.0 is the dedicated 277V power-entry solution for Faven R6 and R8 under-canopy LED bars. It includes an integrated surge protection device (SPD), an IP66-rated end cap, and a 10 ft / 3M communication cable with low-voltage dimming wire for complete daisy-chain installation.
• SKU: 10-010503-001
• Voltage: 277V
• Cord Length: 10 ft / 3M
• Plug Type: NEMA L7 Twist-Lock
• Surge Protection: Integrated SPD (Surge Protection Device)
• End Cap: IP66-rated
• Communication Cable: Single-end, 10 ft / 3M
• Dimming Wire: Low-voltage accessory dimming wire included
• Maximum Daisy Chain: Up to 20 fixtures at 277V
• Compatible Fixtures: Faven R6 and R8 under-canopy LED bars
• Chroma Compatibility: Not compatible with Faven Chroma series
• Dimming: 0–10V
• Controller Compatibility: Faven Mini Controller, TrolMaster, Vivosun, and compatible 0–10V systems
• Installation: One power cord required at the head of each independent daisy-chain run
• Extension: Faven jumper/extension cables sold separately
Key Advantage: Combines 277V power entry, integrated surge protection, IP66 sealing, and 0–10V dimming connectivity, supporting up to 20 Faven R6 or R8 fixtures per daisy-chain run.
