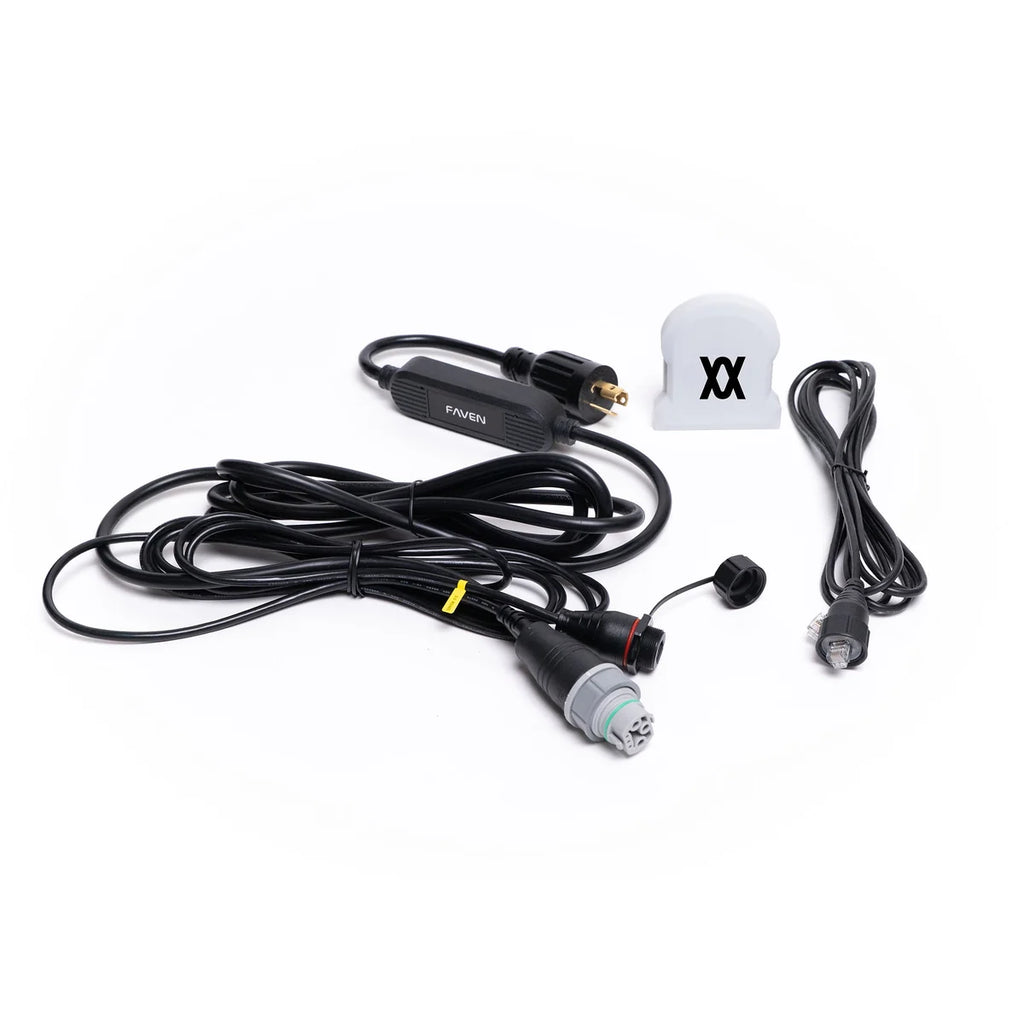

The Faven 240V Power Cord W/SPD 1.0 is the dedicated 240V power-entry cord for Faven R6, R8, and R8 FR under-canopy LED bars. It includes an integrated surge protection device (SPD), an IP66-rated end cap, and a 10 ft communication cable with low-voltage dimming signal for complete daisy-chain installation.
• SKU: 10-010503-002
• Voltage: 240V
• Cord Length: 10 ft / 3M
• Surge Protection: Integrated SPD (Surge Protection Device)
• End Cap: IP66-rated
• Communication Cable: Single-end, 10 ft / 3M with low-voltage dimming signal
• Compatible Fixtures: Faven R6, R8, R8 FR under-canopy LED bars
• Maximum Daisy Chain: Up to 17 fixtures per cord/circuit at 240V
• Dimming Protocol: 0–10V
• Dimming Range: Approximately 35–40% to 100%
• Bundle Contents: Power cord with SPD, IP66 end cap, single-end communication cable
• Control Compatibility: TrolMaster, Vivosun, Growlink, GrowFlux, Argus, Agritek, and other standard 0–10V platforms
• Installation: One power cord per daisy-chain run
• Chroma Compatibility: Not compatible with Faven Chroma fixtures
• Application: Commercial Faven R-Series under-canopy lighting installations
Key Advantage: Combines 240V power entry, integrated surge protection, IP66 sealing, and 0–10V dimming connectivity in one installation bundle, supporting up to 17 Faven R-Series fixtures per daisy-chain run.
