Description

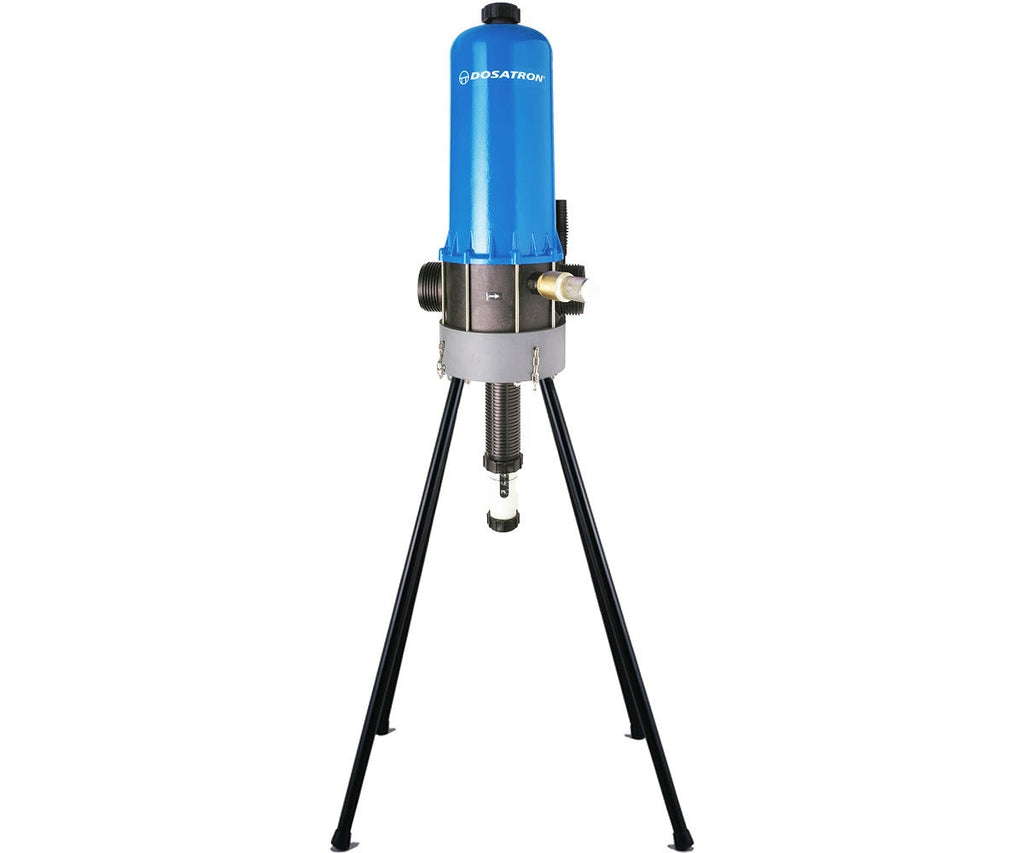

The Dosatron D20S (D20SVFII) installs directly in the water-supply line and uses water pressure as its power source. Water activates the unit, which draws the required percentage of concentrate and mixes it with the water. Water pressure then forces the solution downstream. The concentrate dose is directly proportional to the volume of water entering the unit, regardless of variations in flow or pressure in the main line.
Recommended equipment: 200-mesh filter, check valve, pressure regulator and flow restrictor.
Dimensions: 55 x 15 inches with legs; 42 x 15 inches without legs.
Included Accessories
- Mounting bracket
- Manual bypass
- Suction hose with strainer and weight
- Operating manual
- Set of legs
- Suction hose with strainer
- Vacuum breaker
Technical Specifications
- Weight: 47 lbs
- Pipe size: 2-inch NPT
Specifications
- Shipping Weight: 47 lbs.
