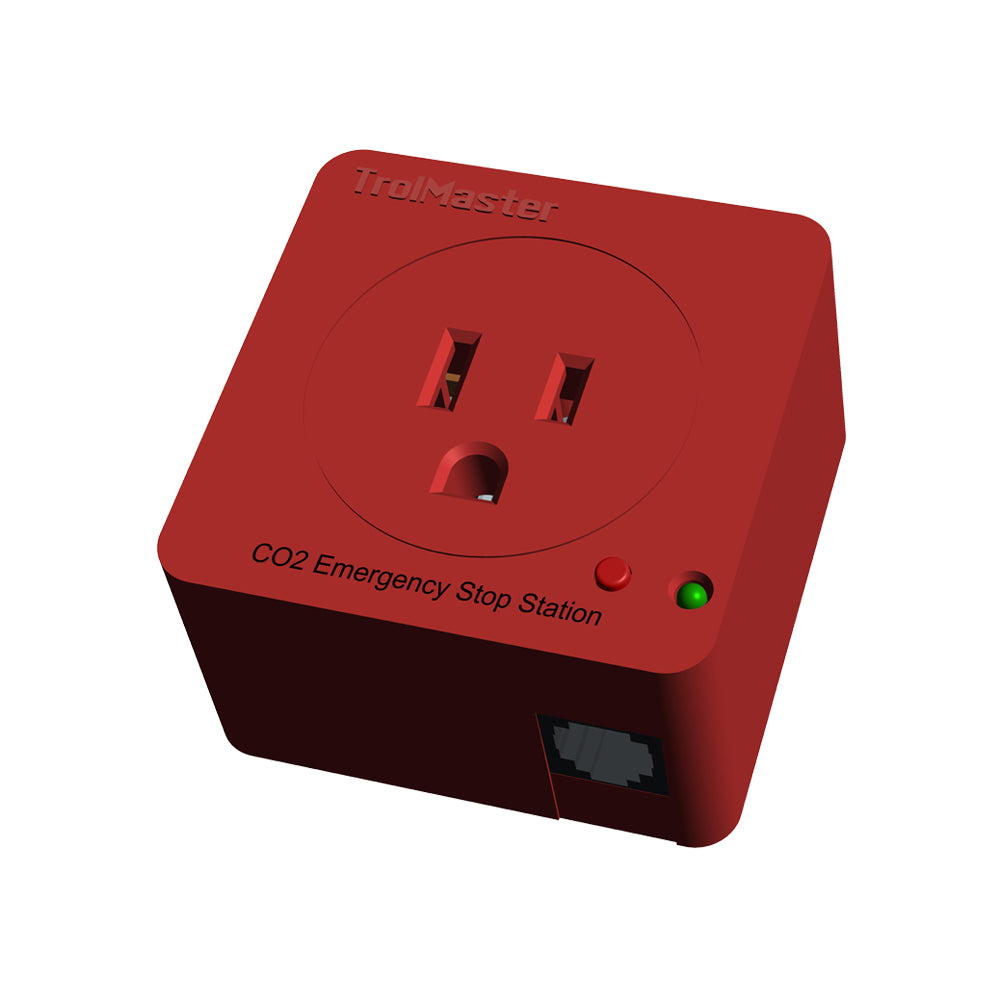

The DSE-1 CO2 Emergency Stop Station provides a simple method to shut off the CO2 supply when any fault or high CO2 level is detected. It is a 120V controlled outlet that supplies the power to CO2 solenoid valves in normal operation . The Carbon-X will then automatically shut off DSE-1 power if any fault or high CO2 level is detected within any of the installed CO2 sensors. If the DSE-1 loses communication with the Carbon-X, the power supply will also be disabled.
Features:
LED Power Indicator
RJ12 Cable Socket
Addressing
Plug & Play
Included In Box:
1 x Emergency Stop Device Station
1 x 16ft RJ12 Cable
1 x 4ft RJ12 Cable
1 x RJ12 T-Splitter
Technical Specifications:
Input Voltage: 100~240 VAC, 50/60Hz
Output Current: 10A
Output Voltage: 100~240 VAC, 50/60Hz
Working Environments: Temperature 32-122°F, Humidity<=90%
Package Dimensions: 85mm(L) x 80mm(W) x 90mm(H)
G.W. per pack: 0.34kgs
